Locate the interior power distribution panel under the driver-side dashboard and remove the plastic cover to access circuits for lighting, radio, and instrument cluster.
Check the engine compartment near the battery where the main relay and high-current protection unit is installed; this section controls starter motor, cooling fan, and charging system. Use the cover legend to match each slot with its assigned function and rating.
Test each circuit using a multimeter by probing both contact points; a broken internal strip may not be visible but will interrupt current flow under load.
Install replacements with identical amperage such as 10A, 15A, 20A, or 30A and press firmly into place to ensure stable electrical contact and prevent intermittent faults.
Interior Fuse Panel Location and Access Under Dashboard
Open the driver-side door and move the seat fully back to create working space under the dashboard, then locate the rectangular cover positioned left of the steering column.

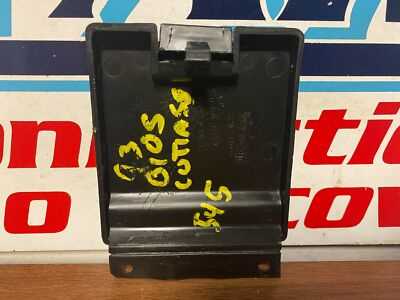

Remove the access panel by pulling it straight outward or releasing side clips; no tools are required in most cases, though a flat plastic trim tool helps if the cover is tight.

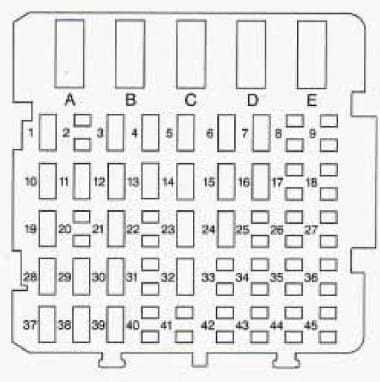

The internal block is mounted vertically and contains blade-type protection elements arranged in rows; each slot corresponds to systems such as interior lighting, radio, instrument cluster, and turn signals.
Access Tips
Use a flashlight to clearly see slot numbering and printed labels; low visibility often leads to incorrect removal or installation.
Keep the ignition switched off and disconnect the negative battery cable to avoid accidental short circuits while handling terminals.
Handling and Removal
Grip each component with a plastic puller or insulated pliers and pull straight out without twisting to prevent loosening internal contacts.
Check seating tension inside the panel; loose terminals can cause intermittent power loss even with intact elements.
Reinstall the cover securely after inspection to protect the panel from dust and moisture, which can lead to corrosion and unstable electrical connections.
Engine Compartment Fuse Box Layout and Circuit Assignments

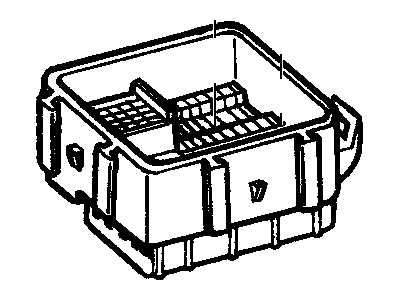

Open the hood and locate the main power distribution center near the battery on the driver side; release the locking tabs and lift the cover to expose high-current protection elements and relays.
The layout inside follows a fixed grid where each slot is assigned to systems such as starter motor, radiator fan, alternator circuit, and air conditioning compressor clutch.
Use the legend printed on the underside of the cover to identify positions; typical ratings include 30A for cooling fan, 40A for blower motor supply, and 50A for primary charging circuit protection.
Check relay positions adjacent to these slots; components controlling fuel pump, ignition, and cooling fan are grouped together for quick access during diagnostics.
Inspect terminals for oxidation or heat damage; discolored plastic or loose contacts indicate poor conductivity and may cause intermittent operation under load.
Test voltage at both sides of each installed element using a multimeter; equal readings confirm proper current flow, while a drop on one side signals an internal break.
Reinstall the cover tightly and ensure the seal is intact to block moisture and debris from entering the enclosure and affecting electrical reliability.
Fuse Slot Functions with Amperage Ratings and System Mapping
Match each slot using the printed legend and verify amperage before replacement; incorrect rating selection leads to overheating or repeated failure under normal load.

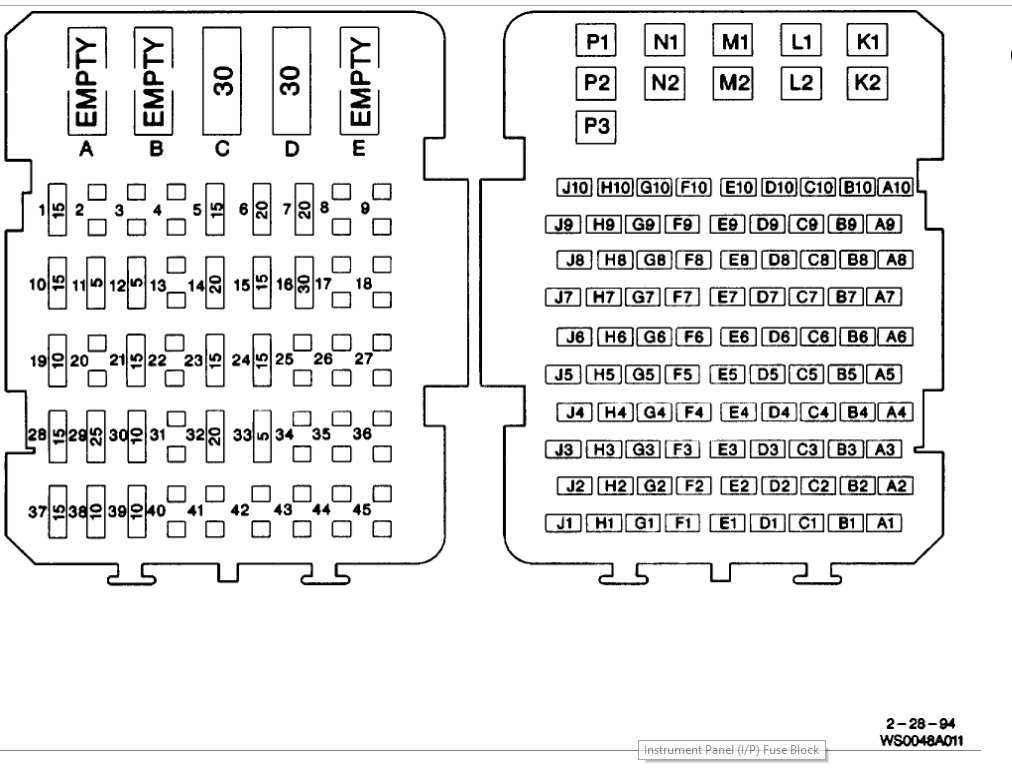

Interior panel positions typically follow this structure:
- Slot 1 – Instrument cluster feed – 10A
- Slot 2 – Radio and memory circuits – 10A
- Slot 3 – Interior lighting – 15A
- Slot 4 – Turn signals and hazard lights – 15A
- Slot 5 – Wiper motor – 20A
- Slot 6 – Power outlets – 20A
Engine compartment distribution center handles higher loads:
- Position A – Cooling fan – 30A
- Position B – HVAC blower supply – 40A
- Position C – Charging system protection – 50A
- Position D – ABS module feed – 30A
Use a multimeter to check voltage at both contact points; identical readings confirm current flow, while a difference indicates an internal break or poor seating.
Keep replacements strictly within specified ratings and press firmly into terminals; loose installation causes intermittent connection and heat buildup under load.
