Check the power distribution panel under the dashboard on the driver’s side first–this is where most circuit interruptions originate. Use a test light or multimeter to verify continuity across each protective element instead of relying on visual inspection alone, as hairline breaks are often invisible.
The cabin-mounted panel contains labeled slots corresponding to lighting, ignition, climate control, and audio circuits. Typical amperage values range from 10A to 30A, and installing a higher-rated insert can damage wiring insulation. Refer to the molded numbering near each slot to match positions correctly; these numbers correspond to factory service documentation.
A secondary relay and protection cluster is located in the engine compartment, near the battery. This section controls high-load systems such as cooling fans and fuel delivery. Corrosion on контакты in this area frequently leads to intermittent faults, so cleaning terminals with electrical contact cleaner is recommended during inspection.
For precise identification, rely on the stamped legend on the inner panel cover. If it is missing, cross-reference wire colors and connector positions: for example, orange wires typically indicate constant power, while pink often relates to ignition-switched circuits. This method helps avoid incorrect replacements and speeds up troubleshooting.
Full-Size Sedan Electrical Panel Layout: Practical Guide
Check the cabin-mounted electrical panel under the dashboard on the driver’s side first; it holds the majority of protective links for lighting, wipers, and interior systems. Remove the cover and inspect the legend printed on its reverse side–this label maps each slot to a specific circuit such as “TAIL LPS,” “WIPER,” or “TURN.” If the label is missing, note that positions are arranged in rows, with higher amperage units typically placed toward the outer edges for heat dissipation.
Under the hood, locate the secondary power distribution center near the battery. This area contains high-current links responsible for engine control, cooling fan, and charging system. Use a test light or multimeter to verify continuity across each metal strip without removing it; a break or burn mark indicates failure. Replace only with identical amperage ratings–using a higher value risks wiring damage.
Interior lighting and radio malfunctions often trace back to a single 10A or 15A link in the lower row of the cabin panel. If multiple accessories fail simultaneously, inspect shared circuits labeled “ACC” or “IGN.” These are fed by the ignition switch and distribute current to several components, making them common failure points during voltage spikes.
Common Slot Assignments
The upper-left section typically powers exterior lighting, including headlamps and parking lights. Middle rows handle climate control, horn, and cruise functions. Lower-right positions are frequently reserved for auxiliary systems like power windows and seat adjustments. Knowing this grouping reduces search time when diagnosing faults.
Corrosion inside terminals can mimic a blown link. Pull the suspect piece out with a plastic puller, inspect the metal contacts, and clean them with electrical contact spray. Reinsert firmly to ensure proper seating; a loose connection may cause intermittent outages that appear unrelated.
Replacement and Safety Tips
Disconnect the negative battery cable before working on any power distribution center. Keep a small assortment of spare links in 10A, 15A, 20A, and 30A ratings in the glove compartment. Avoid using metal tools near live contacts, and never bypass a damaged protective element with wire or foil–this can lead to overheating and harness failure.
Locating the Interior and Engine Bay Fuse Boxes in a 1992 Chevrolet Caprice
Check under the dashboard on the driver’s side: remove the lower trim panel just above the pedals to access the interior electrical panel, where small blade-type protectors are arranged in rows with labels stamped on the plastic cover. Use a flashlight to read markings clearly; positions for headlights, radio, and power windows are grouped toward the center, while turn signals and brake lights sit closer to the edge. Do not rely on color alone–verify amperage numbers printed on each element before replacing anything.

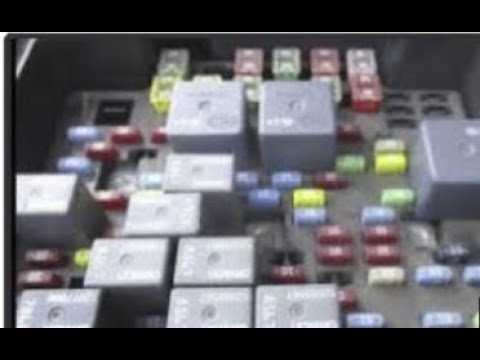

Open the hood and move to the left side near the battery to find the engine compartment power distribution unit, secured with clips; press the tabs and lift the lid to expose larger high-current links and relays. Cooling fan, ignition feed, and charging system circuits are concentrated here, separated from cabin wiring for heat resistance and easier servicing. Inspect for corrosion on terminals and ensure the cover seals tightly after work to prevent moisture intrusion.
