Check the panel under the dashboard on the driver’s side and compare each slot with a verified wiring chart specific to the RS trim of the early 90s F-body platform. This vehicle uses a combination of blade-style protectors with clearly marked amperage values, typically ranging from 5A to 30A, each assigned to systems like ignition, lighting, and auxiliary equipment. A mismatched rating or incorrect placement can lead to intermittent faults or component failure.
Pay attention to labeling differences between trims, since the RS configuration may include variations in power distribution for optional features such as power windows or upgraded audio systems. The panel legend is often printed on the cover, but it may be faded or missing, making a reliable chart indispensable. Cross-referencing wire colors–such as orange for constant power or pink for ignition-switched circuits–helps confirm accuracy.
Inspect each slot systematically, removing and testing components with a multimeter rather than relying solely on visual checks. Hairline breaks in the metal strip are not always visible. For consistent results, note the position numbering from left to right and top to bottom, ensuring alignment with the correct layout reference. This approach minimizes guesswork and reduces the risk of damaging sensitive electrical modules.
Use a clean ground point and stable voltage source during testing to avoid misleading readings. Voltage at each terminal should match expected values depending on whether the ignition is on or off. Any deviation indicates a wiring or distribution issue rather than a simple blown protector, guiding further troubleshooting steps with precision.
1991 Camaro RS Fuse Diagram: Practical Guide to Identification and Troubleshooting
Check the under-dash power panel first and match each slot with its amperage marking before replacing anything; incorrect ratings lead to wiring damage and intermittent electrical faults. Use a flashlight to read the tiny labels molded into the plastic housing, as many markings fade over time and can be misread.
The electrical layout in this model is split between the cabin panel and an engine-bay relay block. The interior section typically controls lighting, radio, dashboard cluster, and auxiliary circuits, while the external block handles higher-load systems such as cooling fans and fuel delivery components. Misidentifying these zones leads to unnecessary part swaps and wasted diagnostic time.
To identify a specific protective element quickly, follow these steps:
- Locate the panel cover and inspect the printed legend on its inner side
- Compare wire colors entering the slot with factory wiring codes
- Use a multimeter to confirm continuity instead of visual inspection alone
- Check for corrosion or heat deformation around the terminals
Common failure points include the circuit protecting the cigarette lighter (often overloaded by aftermarket devices), the instrument cluster line, and the headlamp control path. Burn marks or a melted plastic smell near these areas indicate repeated overcurrent conditions rather than a single failure event.
If a replacement blows immediately after installation, isolate the circuit instead of inserting higher-rated components. Disconnect connected devices one by one and retest. Pay special attention to:
- Aftermarket stereos with improper grounding
- Trailer wiring spliced into rear lighting
- Worn insulation near metal brackets under the dashboard
Voltage drop testing helps detect hidden resistance. Place the multimeter probes across both terminals while the circuit is active; a reading above 0.2V suggests poor contact or oxidation. Cleaning terminals with electrical contact cleaner often restores stable operation without part replacement.
For long-term reliability, keep a printed electrical chart inside the glove box and label frequently serviced slots with a fine marker. This reduces guesswork during roadside checks and speeds up diagnostics when multiple systems fail simultaneously.
Locating and Accessing the Fuse Box in a 1991 Camaro RS (Interior and Engine Bay)
Check the driver-side lower dashboard area first: remove the small plastic cover positioned just left of the steering column, near the kick panel. Use a flat screwdriver or trim tool to gently pry the panel open if it feels stuck; clips can become brittle with age, so apply even pressure. Inside, you will find the primary electrical panel with labeled circuits; a flashlight is recommended because the cavity sits deep and visibility is limited.

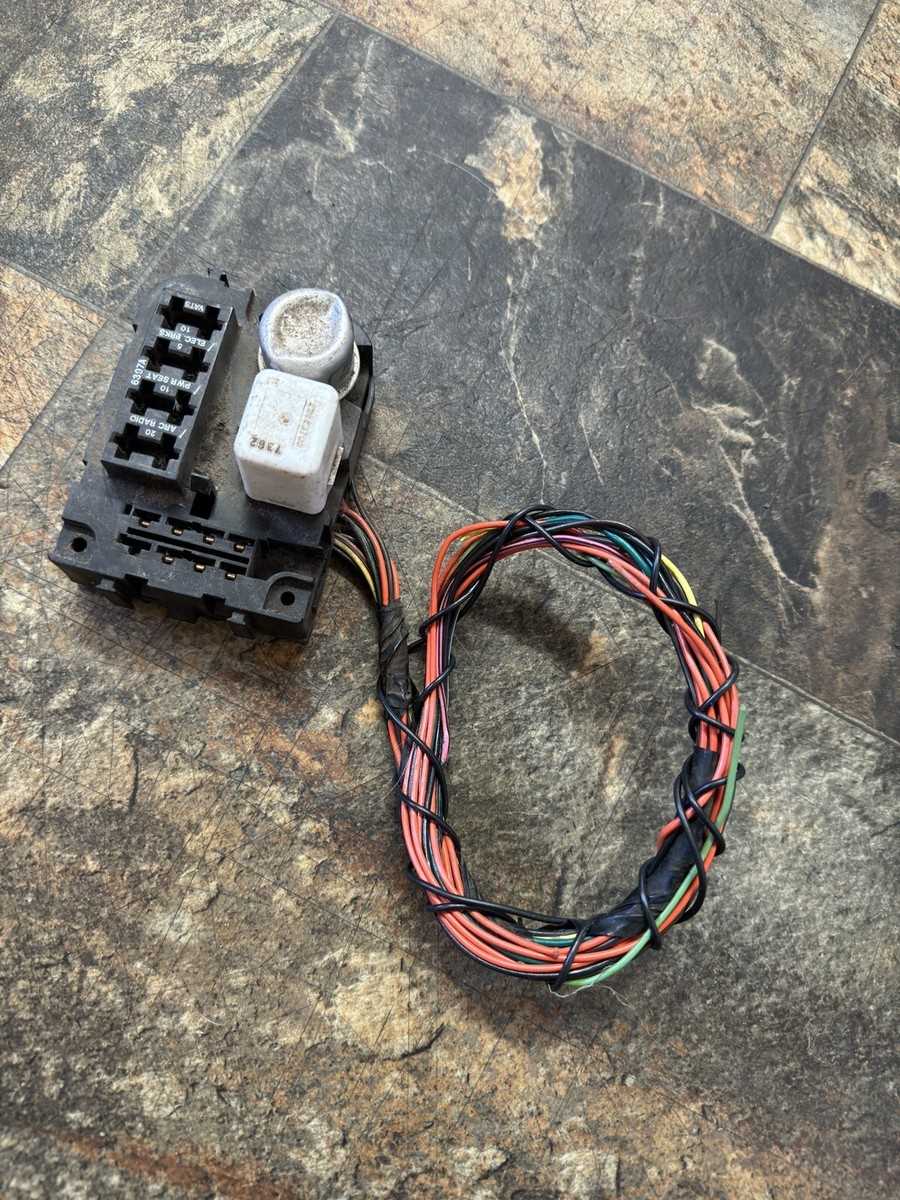

For the engine compartment, open the hood and move toward the driver-side fender. The secondary power distribution block is mounted close to the firewall, typically covered by a rectangular plastic lid secured with clips. Press the tabs inward and lift the cover upward; avoid forcing it sideways to prevent cracking. This under-hood unit handles higher-load circuits such as cooling fans and ignition-related components, so ensure the ignition is off before accessing it.
If access is obstructed by aftermarket wiring or aging insulation, clear the area carefully without pulling on harnesses. Dirt and corrosion often accumulate around both locations; use compressed air or a soft brush to clean the surroundings before inspecting or replacing any element. Reinstall all covers firmly after work is complete to protect against moisture and vibration-related issues.
