Locate the main electrical junction beneath the dashboard on the driver’s side. Identifying the numbered connectors and color-coded wires is key for pinpointing circuits linked to lighting, ignition, and auxiliary systems. Use a test light or multimeter to verify continuity before replacing any fuses or relays.
Follow the sequential labeling stamped on the metal frame of the junction. Each slot corresponds to a dedicated power source or protective element. Mapping these connections prevents accidental overloads and ensures each system receives the correct current.
Keep a reference chart detailing amperage ratings for every circuit. Older trucks often have discrepancies between factory manuals and actual installations due to past modifications. Recording any updates or repairs directly on the chart helps maintain accurate troubleshooting information.
Check for corrosion or loose terminals regularly. Oxidized contacts can mimic blown circuits and trigger intermittent electrical issues. Clean with appropriate contact cleaner and tighten fasteners to maintain reliable performance across all integrated systems.

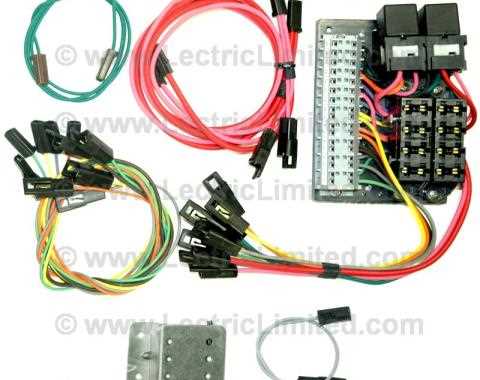

Integrate protective measures for aftermarket accessories. If installing additional lighting or audio systems, use inline connectors and fuses rated for the added load. This prevents strain on the existing wiring network and preserves the integrity of the original circuitry.

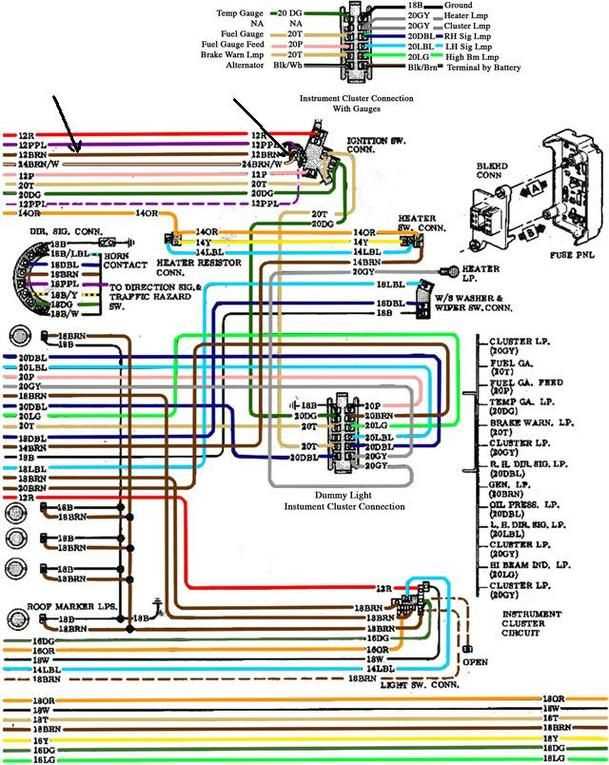

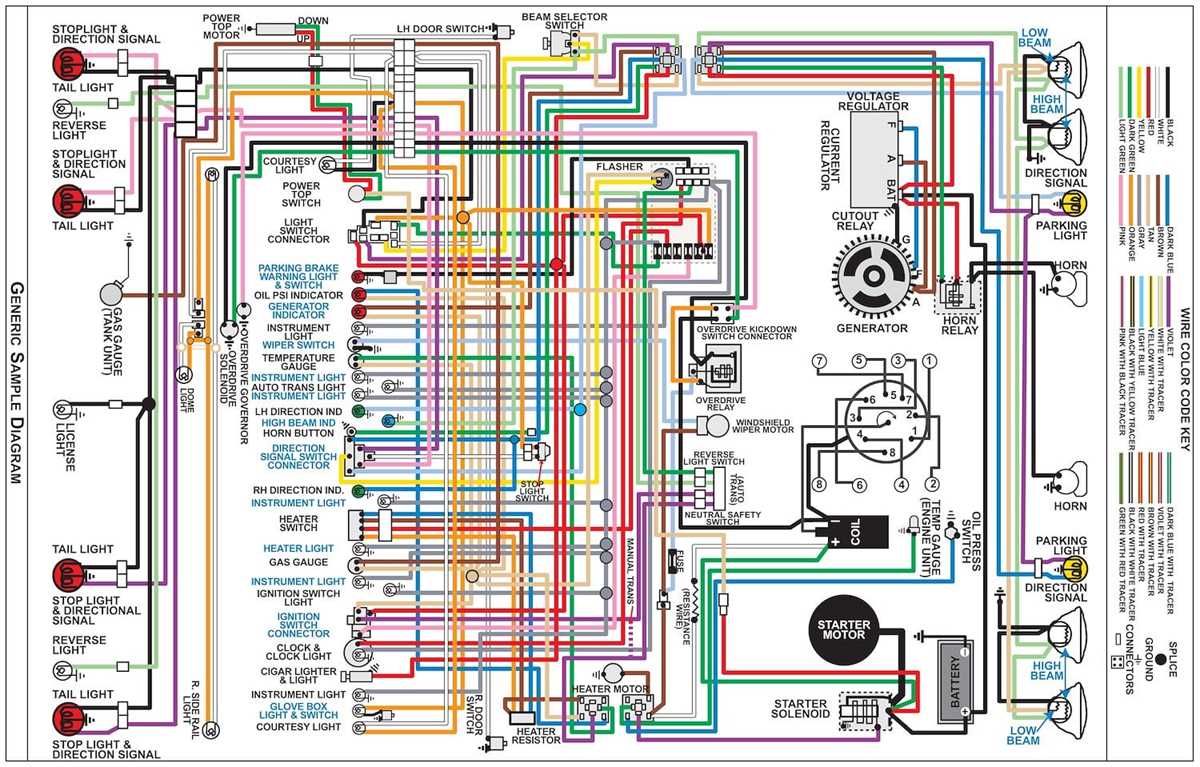

1981 Chevrolet C30 Fuse Block Diagram
Locate the panel beneath the dashboard on the driver’s side for quick access to all circuits. Each slot corresponds to a specific electrical path, including headlights, ignition, and auxiliary accessories. Labeling on the metal cover will indicate amperage ratings, which must match replacements exactly to prevent overheating or blown circuits.
Consult the guide etched on the inside of the cover to identify circuits by number rather than by color. This method reduces mistakes when swapping components or diagnosing shorts. For reliability, ensure terminals are free of corrosion and seated firmly in the connectors before restoring power.
For vehicles equipped with dual battery or upgraded lighting systems, verify whether certain rows accommodate higher current modules. Installing a rating above the specified limit can melt the holder, while a lower rating risks immediate disconnection during normal operation. Keep a small set of spares in the glove compartment for roadside troubleshooting.
Locating the Electrical Junction Panel in a Classic Pickup
Access the main power distribution module beneath the dashboard on the driver’s side, slightly to the left of the steering column. Remove the small plastic trim cover by pulling firmly at the tabs to expose a rectangular metal plate with labeled connections. For units with optional lighting or auxiliary circuits, the panel may extend toward the kick panel area near the pedals. Always disconnect the battery before inspecting connectors to prevent shorts or accidental sparks.
Follow these steps for accurate identification:
- Slide under the dash and locate the mounting screws securing the metallic tray to the inner frame.
- Trace the heavy-gauge wires coming from the ignition switch; they typically enter the top-left section of the panel.
- Check for any relays or fuses inserted horizontally, as these indicate power distribution points for engine and accessory circuits.
- Use a flashlight to inspect the stamped labels or engraved numbers on the panel to match each circuit with its function.
Positioning the module in this location allows convenient access for troubleshooting lamps, heaters, and other onboard electrical systems without removing the steering column or pedals.
