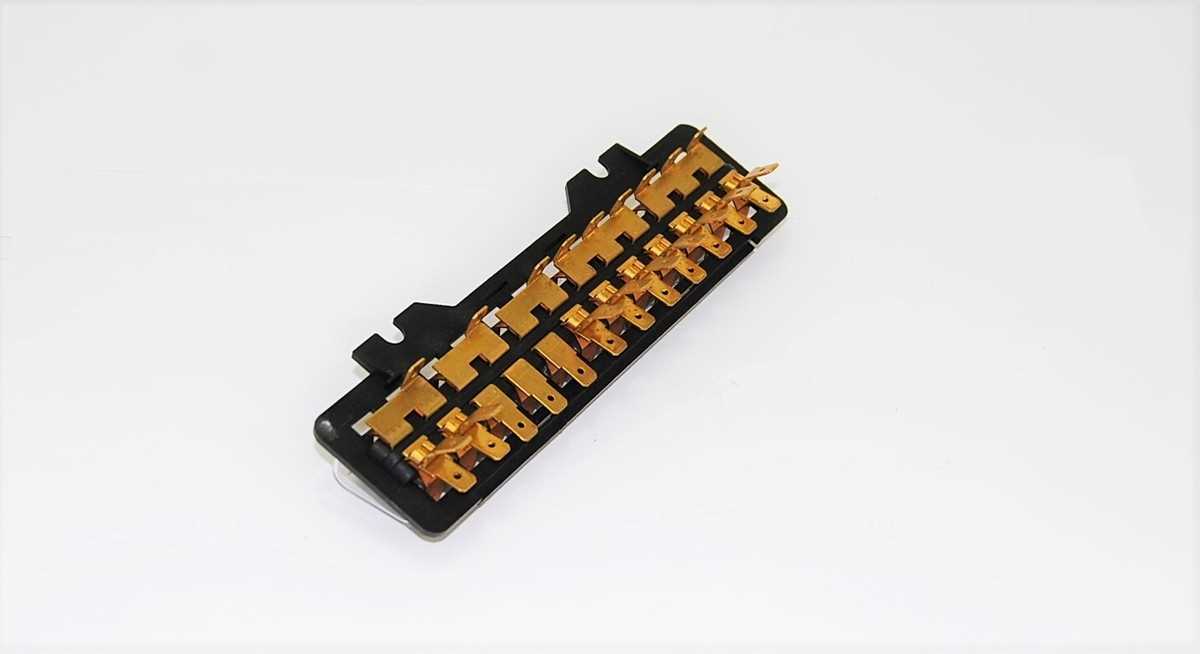

Open the front trunk and inspect the ceramic-style fuse panel mounted near the left side; match each position with the printed numbering before removing any component.
The electrical board uses 8 to 12 ceramic fuses depending on configuration, each connected to lighting, ignition, and accessory circuits. Typical ratings range from 8A for lighting circuits to 16A for higher-load components such as wipers and heating elements.
Each slot is bridged by metal contacts that route current between terminals; corrosion or loose clips can interrupt flow even if the fuse itself is intact. Clean contacts with fine sandpaper and ensure tight seating to restore proper conductivity.

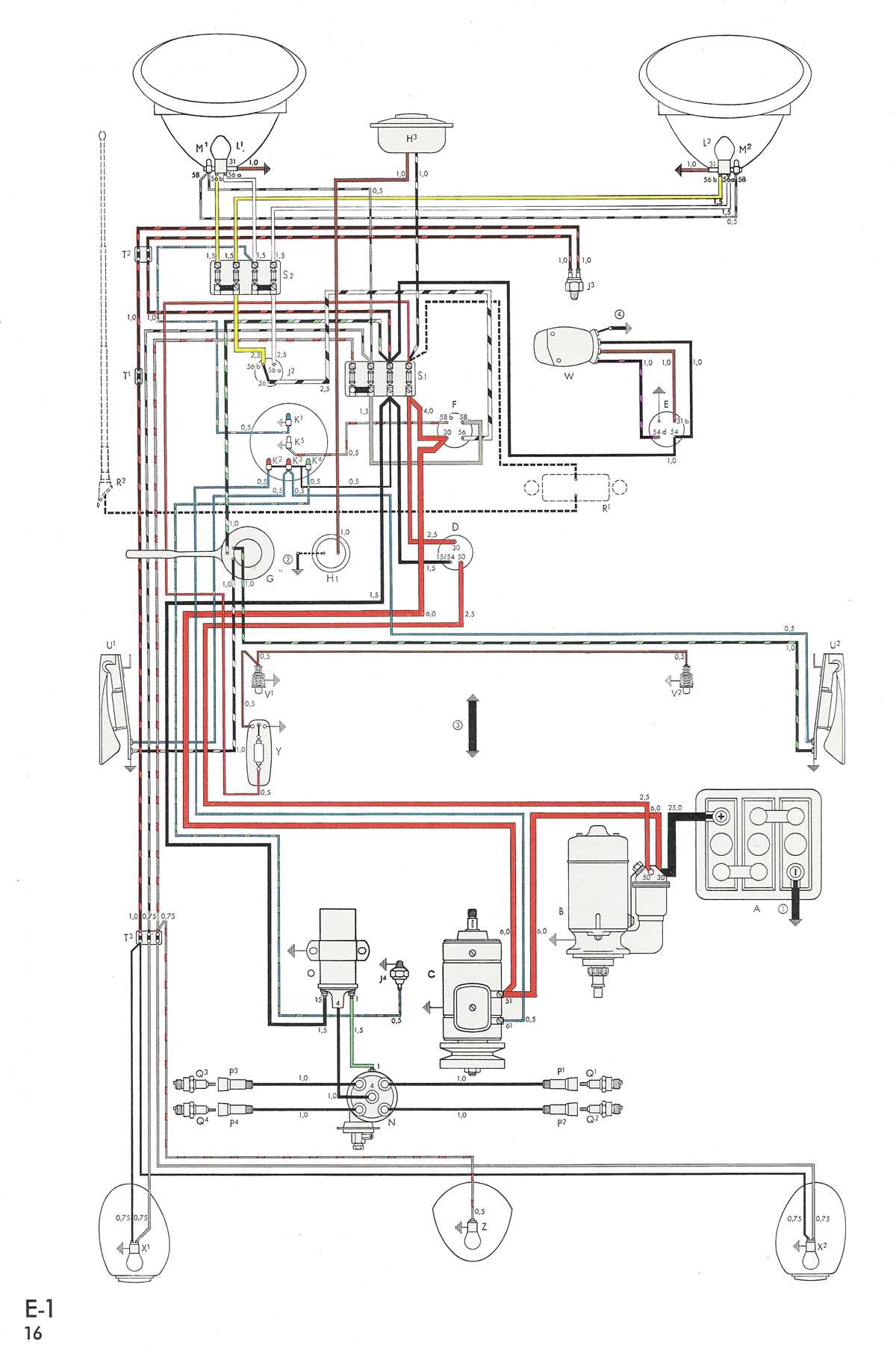

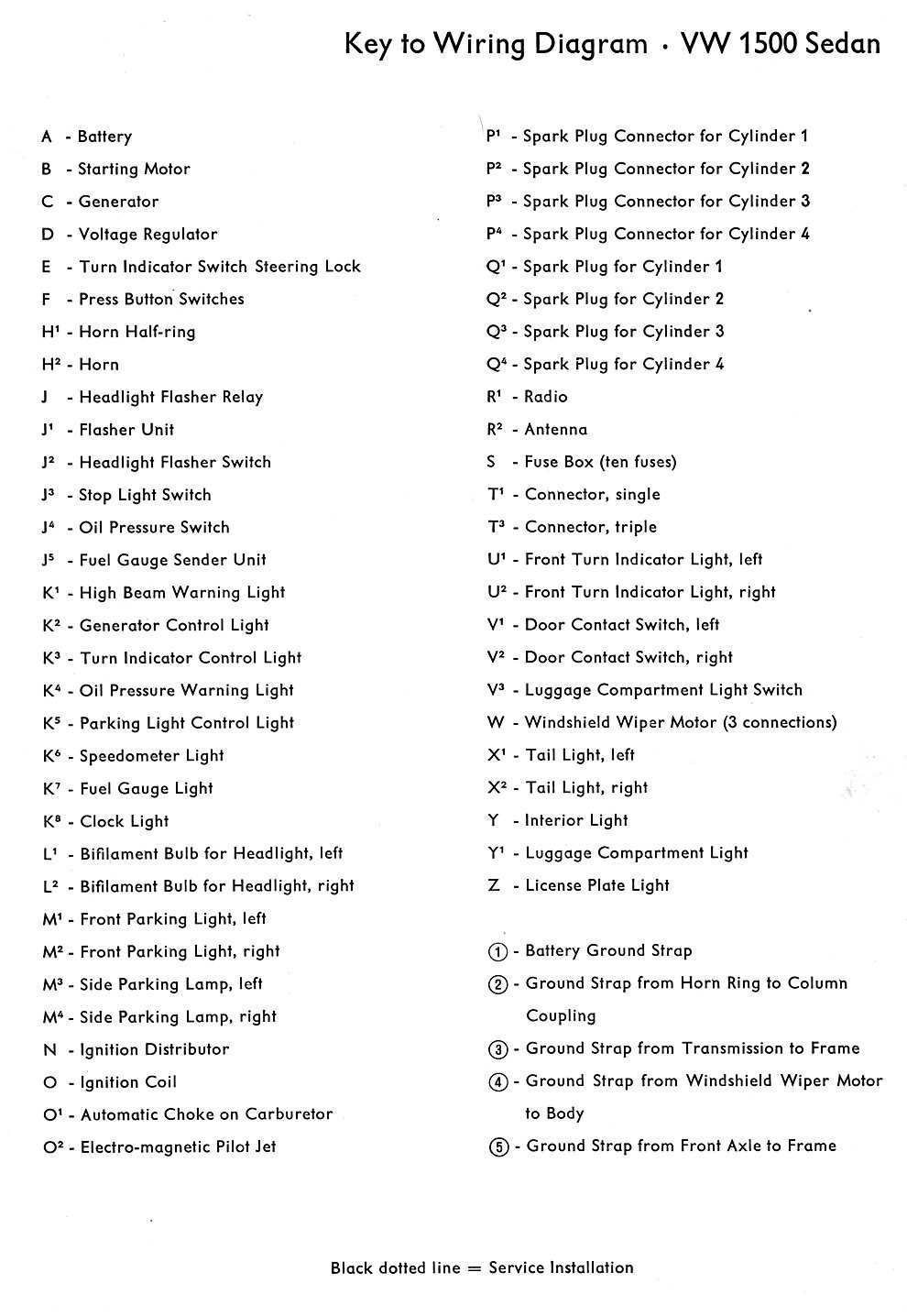

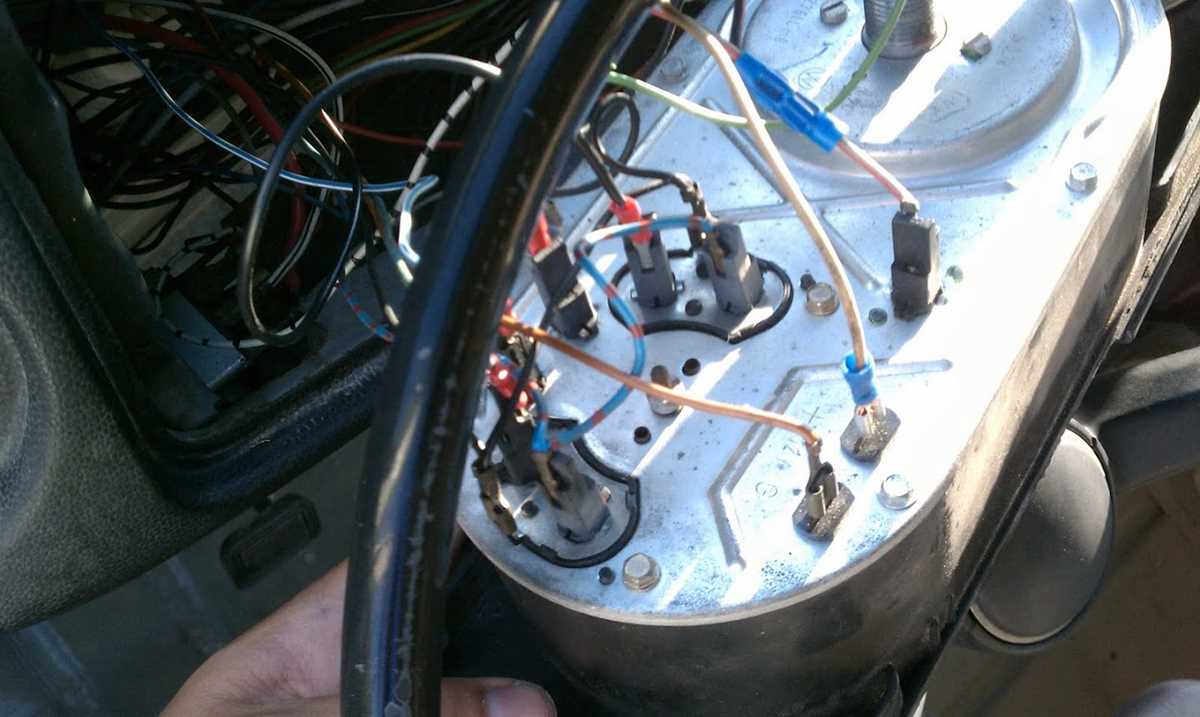

Trace wiring from each position using color-coded leads: gray for lighting, black for ignition-switched circuits, and red for constant battery supply. Correct identification of these lines helps isolate faults without unnecessary part replacement.
1972 VW Squareback Fuse Box Diagram and Circuit Layout Guide
Locate the front trunk electrical panel and verify each numbered position against the printed layout before removing any ceramic unit.
The panel is arranged in a horizontal row, with each slot linking two terminals that distribute current to specific systems. Common circuit assignments include lighting, ignition, wiper motor, and horn.
Typical Circuit Assignments
- Position 1–2: left and right low beam headlights, 8A
- Position 3–4: high beam headlights and indicator, 8A
- Position 5–6: parking lights and tail lamps, 8A
- Position 7–8: wiper motor and washer pump, 16A
- Position 9–10: ignition coil and engine-related circuits, 16A
- Position 11–12: horn and auxiliary systems, 8A–16A
Connection and Layout Details
Each slot uses metal clips that hold ceramic cylinders; power flows through exposed metal strips on both ends. Inspect clips for oxidation, as poor contact can interrupt current flow without visible damage to the insert.
Wire colors follow a consistent pattern: gray for lighting circuits, black for ignition-switched supply, and red for constant battery feed. Matching these colors to terminal positions allows accurate tracing of faults and confirms correct installation after repairs.

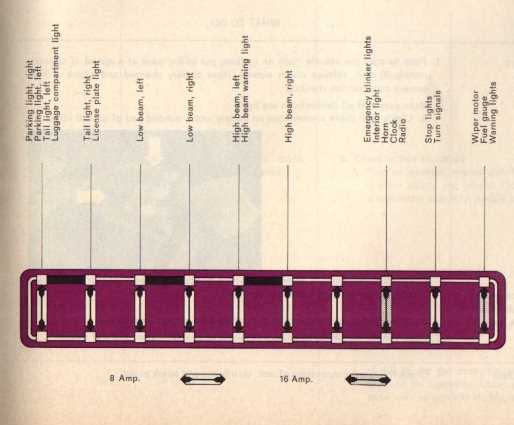

Front Trunk Fuse Panel Layout with Circuit Identification and Ratings
Open the front trunk and locate the horizontal electrical strip mounted near the left inner panel, then match each numbered slot with its assigned circuit before removing any ceramic insert.
The layout follows a left-to-right sequence where each position feeds a dedicated system. Headlight low beams typically occupy the first pair with 8A ratings, followed by high beams and indicator circuits at the same rating. Parking lights and tail lamps continue in the next positions, also rated at 8A, while higher-load components such as the wiper motor and washer pump use 16A inserts. Ignition-related circuits are grouped toward the right side, often sharing 16A capacity, with auxiliary items like the horn placed in the final slots.
Check the metal contact clips for tight grip and clean surfaces; oxidation increases resistance and causes voltage drop across circuits. Each ceramic piece must match the specified amperage, as installing a higher-rated unit can damage wiring, while a lower rating may lead to repeated failure under normal load.
