Use a verified wiring layout from the factory service manual to trace each circuit before making any changes; mismatched connections in this vintage Dodge can lead to immediate short circuits or hidden electrical faults. Identify every terminal by color code and amperage rating rather than position alone, as decades of repairs often alter the original configuration.
Pay close attention to circuit protection ratings: most lines in this model rely on low-amperage links (typically 10A–20A) for lighting, ignition, and accessories. Installing a higher-rated component in place of the specified one can damage wiring insulation and switches. Cross-check each slot with the wiring scheme and confirm continuity using a multimeter instead of relying on visual inspection.
Original layouts typically group circuits by function, with ignition and charging lines positioned separately from interior lighting and auxiliary systems. This arrangement simplifies diagnostics–if multiple components fail simultaneously, focus on the shared branch rather than individual devices. Corrosion on contact points is common; clean terminals thoroughly and verify tight connections to restore stable current flow.
When restoring or modifying the electrical system, document any deviations from the stock configuration. Label wires clearly and maintain a personal reference chart; this reduces troubleshooting time and prevents repeated disassembly of the dashboard area.
1970 Dodge Dart Fuse Box Diagram: Practical Guide
Check the interior electrical panel under the dashboard on the driver’s side and verify each circuit position against a labeled chart before replacing any component; mismatched amperage is a common cause of wiring damage.
The panel layout typically separates lighting, ignition, accessories, and charging circuits into clearly numbered slots. Headlamps and parking lights usually occupy higher-rated positions, while radio, wipers, and cabin illumination use lower values. Use a printed layout sheet or a verified reference image to confirm slot numbering, since faded markings on original hardware often lead to mistakes.
Each slot corresponds to a specific wire color and route. For example, a red or pink lead often connects to ignition-related circuits, while green or brown lines are frequently tied to lighting systems. Trace these colors physically behind the panel to confirm continuity instead of relying solely on labels, especially in vehicles that have undergone modifications.
When diagnosing a failure, remove one protective element at a time and inspect the metal strip inside; a break or discoloration indicates overload. Replace only with the same amperage rating–never substitute a higher value, as this can overheat the harness and damage switches.
Corrosion on контакты reduces conductivity and leads to intermittent faults. Clean terminals using a small brass brush and apply dielectric grease sparingly to prevent oxidation. Avoid excessive force when inserting new components, since aged plastic holders can crack under pressure.
If multiple circuits fail simultaneously, inspect the main feed wire supplying the panel. This line connects directly to the battery via the bulkhead connector. Loose or oxidized connections at this junction often mimic multiple blown elements, even when the panel itself is intact.
For long-term reliability, document any changes made to the electrical system and update your reference chart accordingly. Accurate labeling prevents confusion during future repairs and reduces the risk of incorrect replacements in this classic vehicle’s wiring network.
Locating the Power Distribution Panel in a Classic Dodge and Identifying Each Slot

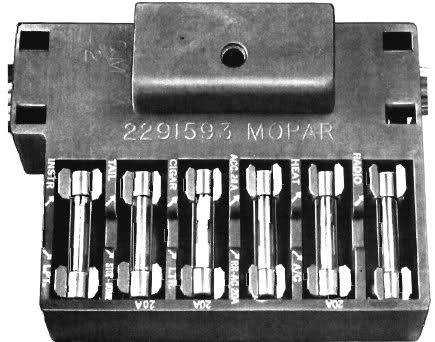

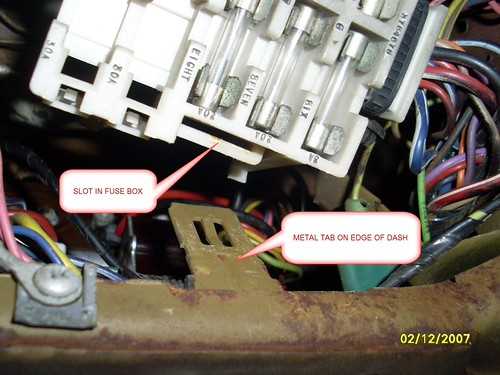

Check under the dashboard on the driver’s side, slightly left of the steering column, where the electrical panel is mounted vertically against the firewall; access may require a flashlight and removal of a small protective cover secured with clips. Each slot is labeled with stamped markings or faded print, so clean the surface gently before reading. Match each position with its circuit by tracing wire colors: red typically feeds constant power, while striped wires indicate specific circuits like lighting or accessories. Use a test light or multimeter to confirm live terminals before replacing any blown element.

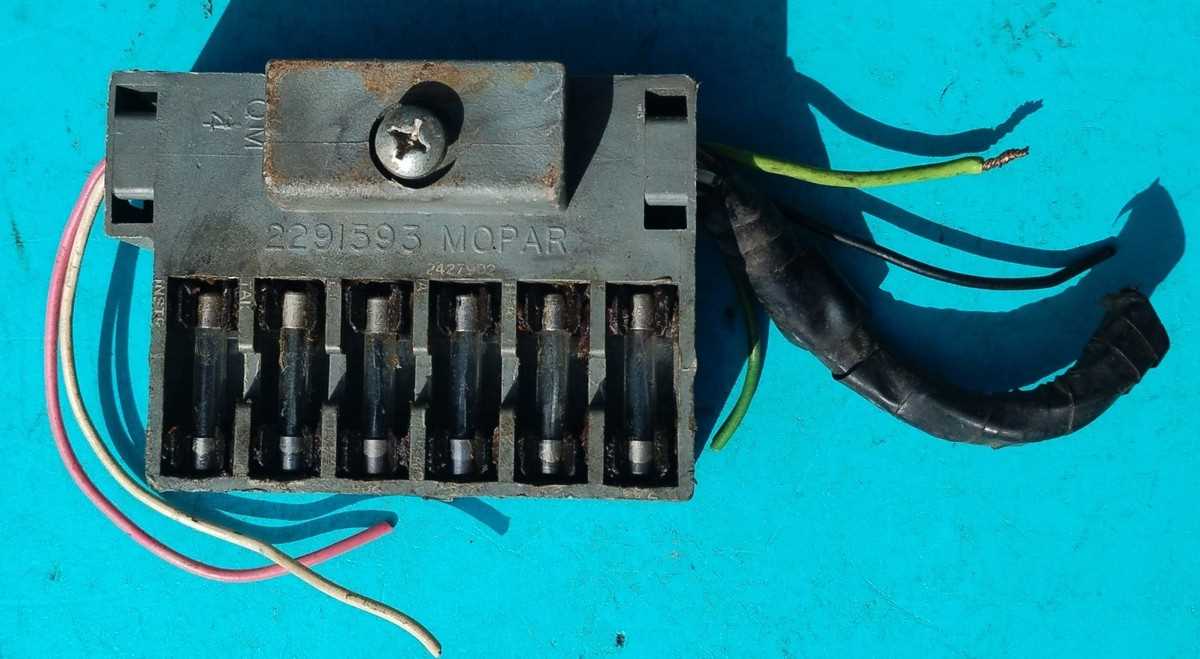

Slot Identification Guide
The panel uses a linear arrangement where each position corresponds to a specific vehicle system. The layout usually follows a left-to-right or top-to-bottom order:
- Position 1: Headlamp circuit (high draw, thicker wiring)
- Position 2: Tail and marker lights
- Position 3: Instrument cluster illumination
- Position 4: Heater and blower motor
- Position 5: Radio and interior accessories
- Position 6: Turn signals and hazard flasher
Practical Checks
Verify amperage ratings stamped on each metal strip; mismatched values can lead to wiring damage. Inspect clips for corrosion or looseness, as poor contact leads to intermittent failures. If labels are unreadable, sketch the layout and mark confirmed circuits during testing to build an accurate reference for future maintenance.
