This reference is most useful when you compare terminal position, amperage rating, and branch color at the same time. On this Chevrolet platform, the interior power center typically serves headlamp feed, heater blower, wiper motor, stop lamps, turn signals, radio supply, instrument illumination, and horn relay support through separate protected paths. A clear circuit map helps you spot whether a failure comes from a melted link, oxidized clip, poor ground, or a damaged conductor hidden in the harness wrap. For restoration work, verify each cavity with a multimeter and a test lamp instead of trusting old labels, because many cars from this period were modified with aftermarket stereos, add-on gauges, or bypassed protection points.
For accurate tracing, use factory color codes and connector orientation rather than relying on part names alone. Orange commonly indicates constant battery feed, brown often relates to tail or panel illumination, light green may appear in directional or indicator branches, and black is frequently tied to ground return. If a circuit appears dead on both sides of its protective link, inspect the bulkhead connector at the firewall and the battery-to-junction path near the starter area. If voltage appears on one side only, remove corrosion from the clips, inspect for heat damage, and install a replacement with the same amperage rating rather than a higher one.
A good circuit layout for this Chevrolet should also show splices, connector pin order, branch destinations, and grounding points. That level of detail matters during dash disassembly, steering-column service, or front lighting repair, where several lines of similar color can run together and cause misidentification. Use the chart alongside a continuity test from the load back toward the supply point, and mark each confirmed branch with removable tape. This approach reduces guesswork, protects original components, and makes fault isolation much faster on a classic American sedan from the mid-1960s.
Mid-Sixties Chevrolet Passenger-Car Power Panel Layout: Circuit Identification, Current Routes, and Fault-Check Points

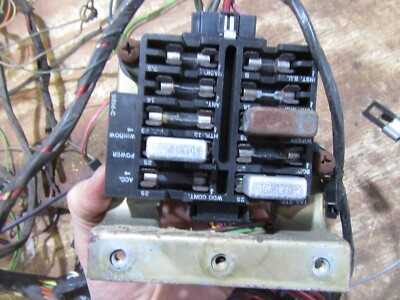

Check the cabin power panel with a test lamp before replacing anything: with ignition off, the feed side for horn, stop lamps, interior lamp, and clock should still show battery voltage, while heater, wiper, turn-signal, and radio branches should receive power only after the key is turned to ACC or RUN. If a strip looks intact but both terminals stay dead, inspect the main supply lead from the starter-solenoid battery stud to the interior distribution point and the bulkhead connector for heat damage or looseness.
Terminal assignment matters more than visual condition. On this Chevrolet platform, each protected link serves a defined load group rather than a random single accessory. The always-hot positions usually cover dome lamp, cigarette lighter, brake-light switch feed, and horn relay supply; the key-switched side commonly serves the heater blower selector, two-speed wiper motor circuit, back-up lamp path through the transmission switch, turn indicator flasher feed, and optional radio. A repeated failure on the same branch usually points to a downstream short, not to the panel itself.
The stop-lamp route is one of the quickest paths to verify. Battery current enters the cabin distribution unit, passes through the dedicated metal strip, goes to the brake-pedal switch, then continues to the rear lamp harness where it splits left and right. If rear lamps stay dark while tail lamps still work, probe for voltage at the pedal switch input and output. Power on one side only means the pedal switch is open or misadjusted; no power on either side means the protected link or its feed is open upstream.
Current paths worth tracing first

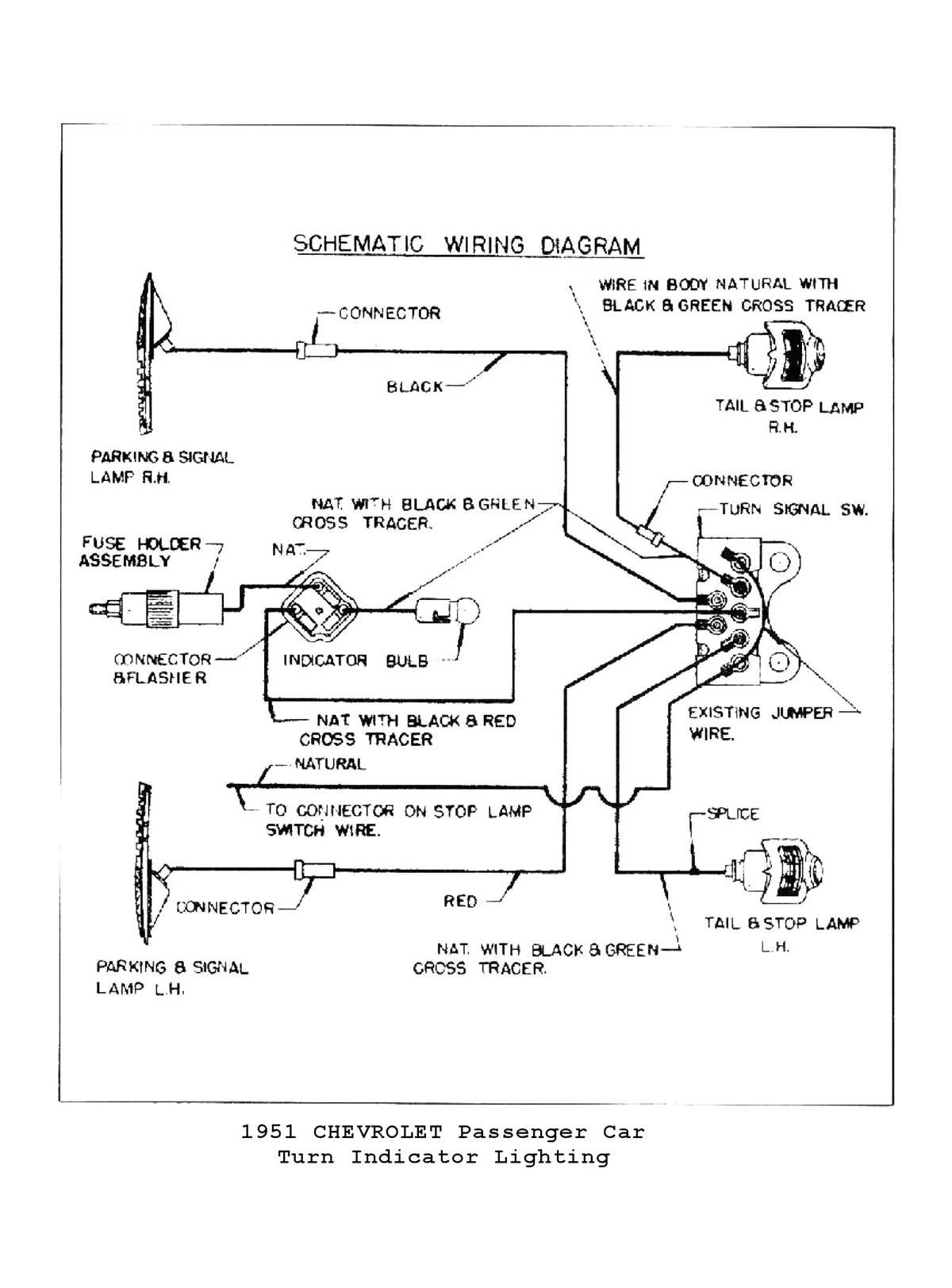

The turn-signal branch runs from the interior panel to the flasher can, then to the steering-column switch, then outward to front park/indicator assemblies and rear combination lamps. A steady lamp with no blinking usually means a bad flasher or poor ground at one corner. A dead side on both front and rear often points to worn contacts in the steering-column switch. The heater blower path is similarly direct: panel terminal, fan switch, resistor block for low and medium speeds, then motor. High speed often bypasses the resistor pack, so a blower that works only on high usually indicates an open resistor element.
Do not ignore shared grounds. Front lighting grounds near the radiator support, instrument illumination returns through dash metal, and rear lamp housings ground through the body sheet metal and mounting points. Rust, paint buildup, or loose fasteners can mimic an open circuit. When a lamp glows dimly, flashes backward through another bulb, or changes behavior when a second accessory is switched on, suspect ground resistance before chasing the protected strip assignments.
Typical failure points on this chassis
The most common trouble spots are the bulkhead connector at the firewall, the headlamp-switch connector, the ignition-switch plug, the steering-column turn-signal switch contacts, and the rear body harness junction near the left kick panel or sill route. Heat-discolored terminals, brittle insulation, green corrosion, and loosened female spades are stronger indicators than a quick visual glance at the panel. On cars with added radios, auxiliary gauges, or aftermarket lamps, look for non-factory splices tied into the wrong protected branch; those add-ons often overload a circuit intended for a lighter factory draw.
For instrument lighting faults, trace current from the headlamp switch rheostat to the cluster lamps and heater-control lamp, then confirm dash-shell grounding. For wiper issues, verify key-switched voltage at the motor feed, then inspect the firewall plug and motor ground strap. For horn complaints, test constant battery feed at the relay, then ground the relay control terminal manually; if the horns sound, the issue is in the steering-wheel contact or column path, not in the power distribution panel.
Use voltage-drop testing instead of part swapping. Measure from battery positive to the load-side terminal of the suspect strip while the accessory is switched on; more than about 0.2 to 0.3 volts across a good connection under load suggests resistance at clips, terminals, or connector joints. Then measure from the accessory housing to battery negative; anything beyond a small drop points to a weak return path. This method isolates whether the fault sits in supply, switchgear, connector blocks, or grounding hardware with far less guesswork.
