Check the power distribution panels under the hood and inside the cabin first, matching each slot number with its assigned circuit before replacing any blown link. Use the cover label to confirm amperage ratings such as 10A, 15A, 20A, or higher for heavy-load systems.
The full-size SUV uses two main electrical centers: one near the battery and another behind the passenger compartment trim. Engine area circuits typically control cooling fans, ABS, and ignition supply, while interior slots handle lighting, audio system, and accessory outlets.
Inspect each blade unit visually by checking the metal strip inside. A break or burn mark signals failure. Always install a replacement with the same rating and color to prevent wiring damage or unstable operation across connected systems.
Use slot numbering and grouping to locate faults faster. Systems like power windows, HVAC, and radio are arranged in nearby positions, which helps narrow down issues when one function stops working without affecting others.

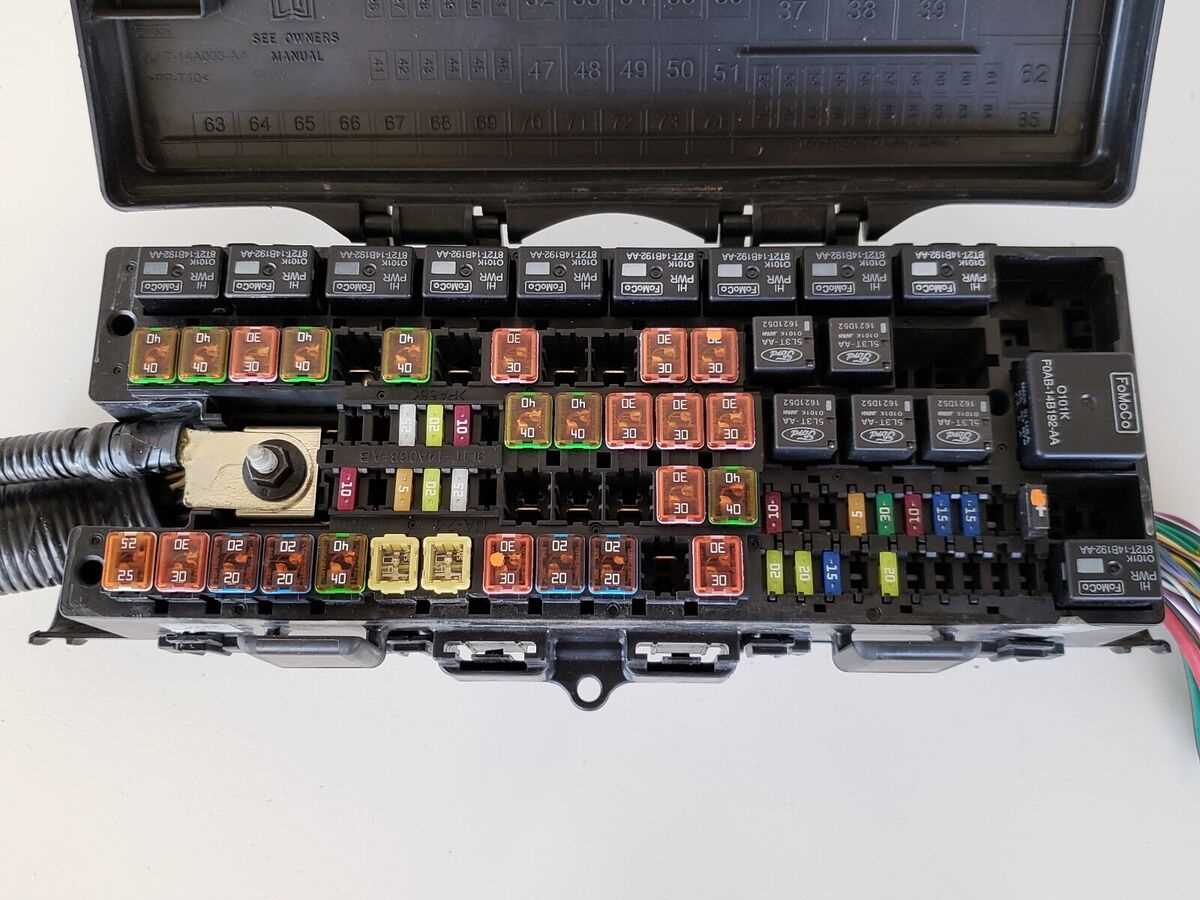

09 Expedition Fuse Box Diagram with Panel Layout and Circuit Assignments
Match each slot number with the printed cover chart before removing any blade unit, focusing first on high-load circuits near the main power feed under the hood. Systems such as cooling fans, ABS pump, and starter relay typically use 30A–50A links and are grouped together for direct battery supply.
Inside the cabin, the secondary distribution panel organizes lower-load circuits in numbered rows. Use the label to identify positions tied to specific systems and verify ratings before replacement. Common assignments include:
- 10A for interior lighting and control modules
- 15A for audio unit and accessory outlets
- 20A for wipers and power windows
- 30A or higher for blower motor and seat functions
Relays positioned рядом with these links control switching for key components such as fuel pump, ignition, and air conditioning compressor. Check each relay code and position index against the layout chart to avoid incorrect placement, as similar shapes can cause confusion.
Use a multimeter to confirm continuity when visual inspection is unclear, since some failed elements show no visible damage. Align numbering carefully with the orientation of the panel cover, as reversed viewing angles can lead to selecting the wrong slot during troubleshooting.
Engine compartment fuse box layout with relay positions and amperage chart
Open the under-hood power distribution center near the battery and read the cover label to align each slot with its circuit before removal. High-current lines are placed closest to the main feed and typically include cooling fans, ABS module, and starter supply, using 30A to 60A ratings.
Mid-range blade units in the same enclosure handle systems such as ignition coils, fuel delivery, and engine control modules. These are usually marked 15A to 25A and grouped in rows for easier identification based on numbering printed on the housing.
Relays are arranged рядом with these links and control switching for components like radiator fan motors, A/C compressor clutch, and fuel pump. Each relay position is labeled with a code; match it with the panel chart to avoid swapping identical-looking units that serve different circuits.
Use the amperage chart printed on the cover to confirm values before installing replacements. Installing a higher-rated link risks overheating wiring, while a lower-rated one may fail under normal load, especially in circuits tied to engine cooling or charging systems.
