Check the cover label first and match each slot number with its amperage rating to identify the correct circuit before removing any protective element.
The interior power distribution unit is usually installed behind a dashboard side cover and contains blade-type elements rated from 5A to 30A. These positions support systems such as lighting, audio, control modules, and accessory outlets.
In the engine compartment, a separate module handles higher load circuits including cooling fans, ignition supply, and braking electronics. These positions use larger connectors and higher current ratings, often exceeding 40A for systems with increased demand.
Use the layout chart printed on the cover to match slot numbers with circuit assignments and amperage values. A damaged element typically shows a broken internal strip or burn marks, which can be confirmed with a multimeter set to continuity.
Repeated failure at the same position indicates wiring damage or a faulty connected component. Inspect harnesses, connectors, and grounding points before installing a replacement to prevent recurring issues.
2008 Kia Sportage Fuse Diagram and Circuit Assignment Guide
Check the legend under the cover first to match each slot with its circuit before removing any protective element, as labeling varies slightly by trim level and engine type.
The electrical distribution unit inside this vehicle uses both mini and standard blade protectors, typically rated from 10A to 40A. Lower ratings handle interior electronics such as radio, cluster, and accessory sockets, while higher ratings control systems like cooling fans, ABS, and power windows. Always replace with identical amperage to avoid damage or wiring overload.
- 10A–15A: audio system, interior lighting, control modules
- 20A–25A: wipers, heated seats, outlet circuits
- 30A–40A: blower motor, window regulators, main power feeds
Trace circuits by following color-coded wires from each slot; for example, red or red-striped lines often indicate constant battery supply, while black or brown typically represent ground. If a system fails, test continuity across the metal tabs using a multimeter rather than relying on visual inspection, as internal breaks may not be visible.
Exact location of interior and engine bay fuse panels in 2008 Kia Sportage

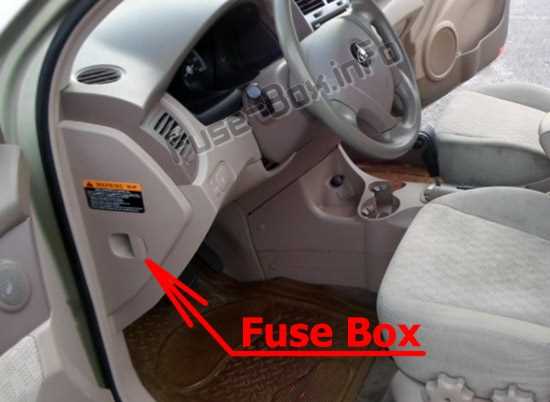

Open the driver side lower dash cover to access the cabin electrical block, positioned just to the left of the steering column behind a removable plastic panel secured by clips.
The interior unit sits slightly above the footwell level, aligned with the side trim. To reach it, pull the cover outward from the bottom edge; no screws are used. Inside, rows of small blade protectors are arranged vertically, with a label on the back of the cover indicating circuit roles.
Use a flashlight when working in this area, as the placement is recessed and partially obstructed by the dashboard frame and wiring harnesses running toward the steering assembly.
The engine compartment electrical center is mounted near the battery on the left side when facing the vehicle from the front. It is enclosed in a black plastic housing with a snap-on lid designed to protect against moisture and debris.
Release the locking tabs on both sides of the under-hood housing to lift the cover. Inside, you will find larger cartridge-style protectors and relays responsible for high-load systems such as cooling fans, ignition circuits, and ABS modules.

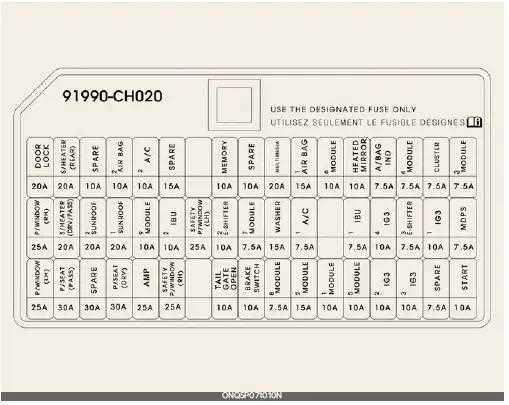

Check the underside of the lid for a printed layout showing each slot and relay position, which helps identify the correct component without removing multiple elements.
Maintain clear access by avoiding loose cables or aftermarket additions around the engine bay unit, as obstruction can lead to overheating or poor contact at terminals.
Always disconnect the battery before servicing components in the engine area to reduce the risk of short circuits or accidental activation of electrical systems.
