2007 Ford F150 Fuse Diagram with Fuse Panel Layout and Relay Assignment Guide

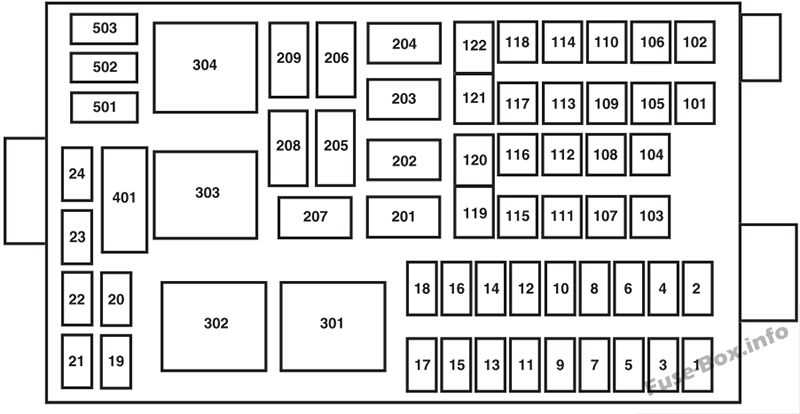

07 f150 fuse diagram

Check the passenger-side kick panel and the engine compartment power distribution center first, as these two locations handle most electrical faults in this pickup. Access both panels before replacing any component to avoid missing linked circuits or shared relays that can affect multiple systems at once.

Each slot in the panel corresponds to a specific circuit such as fuel pump, radio, power windows, or trailer connections. Use the printed layout on the cover or a trusted reference chart to match numbers with functions. For example, a non-working radio or interior outlet often points to a low-amperage insert in the cabin panel, while cooling fan or headlight issues usually trace back to higher-rated parts under the hood.

Inspect each element for a broken metal strip or discoloration, and always replace it with the same amperage rating like 15A, 20A, or 30A. Keep a puller tool nearby for safe removal. Using a higher rating can damage wiring and connected modules, especially in circuits tied to electronic control units and sensors.

2007 Ford F150 Fuse Diagram with Fuse Panel Layout and Relay Assignment Guide

Check the legend printed on the panel cover and align each numbered slot with its assigned circuit before removing any component, as misidentification often leads to unnecessary replacements.

The interior panel, located behind the passenger-side kick trim, typically includes low to mid-amperage inserts controlling radio, interior lighting, power locks, and diagnostic port functions; these are usually rated between 10A and 25A and arranged in tight vertical rows.

The engine compartment distribution center handles high-load systems such as cooling fans, fuel pump, ABS module, and headlights, with larger inserts rated from 30A up to 60A and grouped relays positioned nearby in square housings.

Match relay positions using the molded layout inside the cover, noting labels like PCM, starter, or blower motor, and confirm orientation before removal to avoid incorrect placement during reinstallation.

Inspect each metal strip inside the insert for breaks, dark spots, or warping, which indicate overload or short circuits.

Use identical amperage ratings when replacing components, as installing a higher-rated piece can overheat wiring and damage connected modules such as the ECU or lighting control system.

Test suspected relays by swapping them with identical units from non-critical circuits like the horn or auxiliary systems, then recheck operation to confirm failure.

Secure the panel covers tightly after inspection to protect internal contacts from moisture and debris, especially in the engine bay where exposure to heat and dust is constant.

Where to Locate Fuse Panels in a 2007 Ford F150 and How to Open Them

Remove the passenger-side kick panel trim to access the interior power distribution unit, positioned low near the floor and slightly forward of the door frame.

Pull the trim cover gently from the edge using your hands or a plastic pry tool to release retaining clips without cracking the panel.

Inside, the panel sits recessed and may include a small puller tool attached for removing inserts safely.

Engine Compartment Power Distribution Center

Open the hood and locate the main electrical center near the battery on the driver’s side, enclosed in a black plastic housing with a snap-on lid.

Press the locking tabs on both sides of the cover and lift upward to expose high-current circuits and relays.

Access Tips and Precautions

Turn off the ignition and remove the key before opening any panel to prevent short circuits or accidental relay activation.

After inspection or replacement, align the cover properly and press down until all clips engage to protect internal contacts from moisture and debris.
