Remove the driver side lower trim panel to access the interior power distribution unit located near the steering column. Use a plastic trim tool to avoid damaging clips while exposing the row of blade-type links.
Each slot is labeled with a number tied to a specific circuit such as radio, power windows, brake lights, or instrument cluster. Check both terminals with a multimeter to confirm current flow rather than relying on visual inspection of the metal strip.
Common amperage ratings include 7.5A, 10A, 15A, and 20A. Installing a higher-rated replacement can overheat wiring, while a lower rating may fail during normal use. Keep spare links in multiple ratings for quick troubleshooting.
If a slot fails repeatedly, inspect wiring behind the kick panel, near pedals, and along door channels where insulation may wear. Targeted circuit testing helps isolate the exact source without replacing working components.
06 Civic under dash fuse box diagram with slot layout and circuit details
Use the panel cover legend to match slot numbers with circuits before removing any link; this mapping shows which position feeds systems like radio, interior lights, power windows, and control modules. Slots are arranged in rows with clear numbering, allowing quick identification during checks.

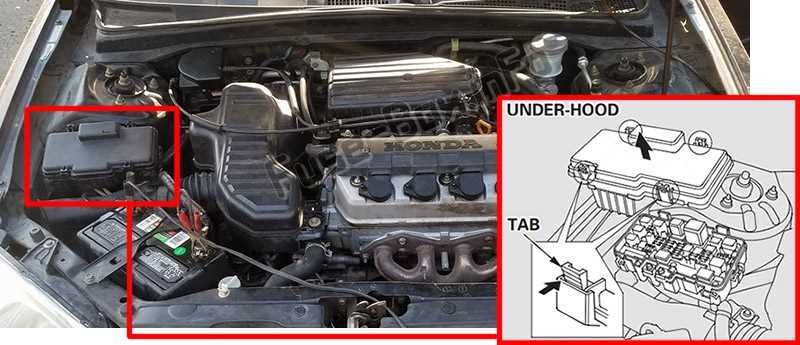

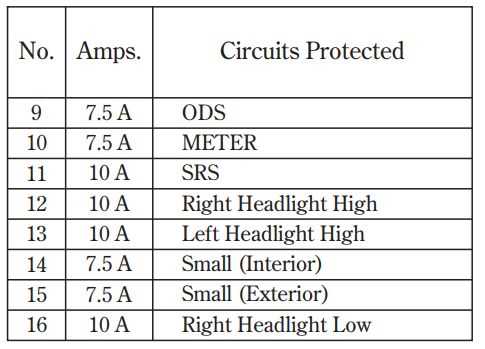

Typical ratings include 7.5A for instrument cluster, 10A for audio and accessories, 15A for brake lights and power outlets, and 20A for window motors. Each position has an input and output side; test both sides with a multimeter to confirm continuity and detect hidden breaks not visible to the eye.
If multiple interior functions stop working at once, inspect adjacent positions since related circuits are often grouped together. Repeated failure in the same slot usually indicates wiring damage near pedals, door channels, or harness bends, requiring inspection beyond the panel itself.
Exact location of under dash fuse box in 06 Civic and how to access it

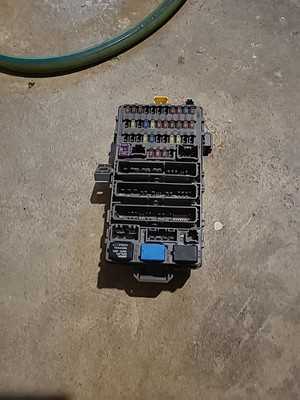

Look to the left of the steering column near the driver footwell; the interior electrical panel is mounted behind a small removable trim cover integrated into the lower dashboard area. Reach below the steering wheel and pull the cover outward to expose the row of blade-style links.
- Sit in the driver seat and locate the panel above the footrest area
- Grip the edge of the trim cover and pull gently to release clips
- Use a flashlight to improve visibility in the tight space
- Keep a plastic tool nearby to avoid damaging surrounding panels
