Locate the power distribution panel under the dashboard on the driver’s side and the secondary unit in the engine bay before attempting any electrical work. The 2005 Toyota full-size pickup uses two separate blocks with clearly numbered slots; cross-check each position with the factory labeling on the крышка панели rather than relying on generic схемы. This avoids installing an incorrect amperage insert, which can overheat wiring and damage control modules.
Each circuit is tied to a specific rating, typically ranging from 5A to 120A, depending on load: lighting circuits usually use 10–15A, while systems like ABS or starter relays require higher values. Never replace a burned element with a higher rating; this does not fix the issue but shifts the risk to insulation and connectors. If repeated failures occur in the same slot, inspect the downstream wiring harness and connected components for shorts or corrosion.
For accurate identification, match slot numbers with functions such as ECU-IG, ACC, EFI, AM1, and H-LP. The interior block typically handles cabin electronics–radio, climate control, instrument cluster–while the engine compartment unit manages ignition, fuel injection, and cooling systems. A printed reference card inside the cover provides the quickest verification method, reducing diagnostic time when troubleshooting non-working accessories or intermittent power loss.
When testing, use a multimeter instead of visual inspection alone. A component can appear intact but fail under load. Measure continuity and voltage on both sides of the contact with the ignition in the appropriate position. This approach identifies hidden faults and ensures the electrical network operates within the designed parameters.

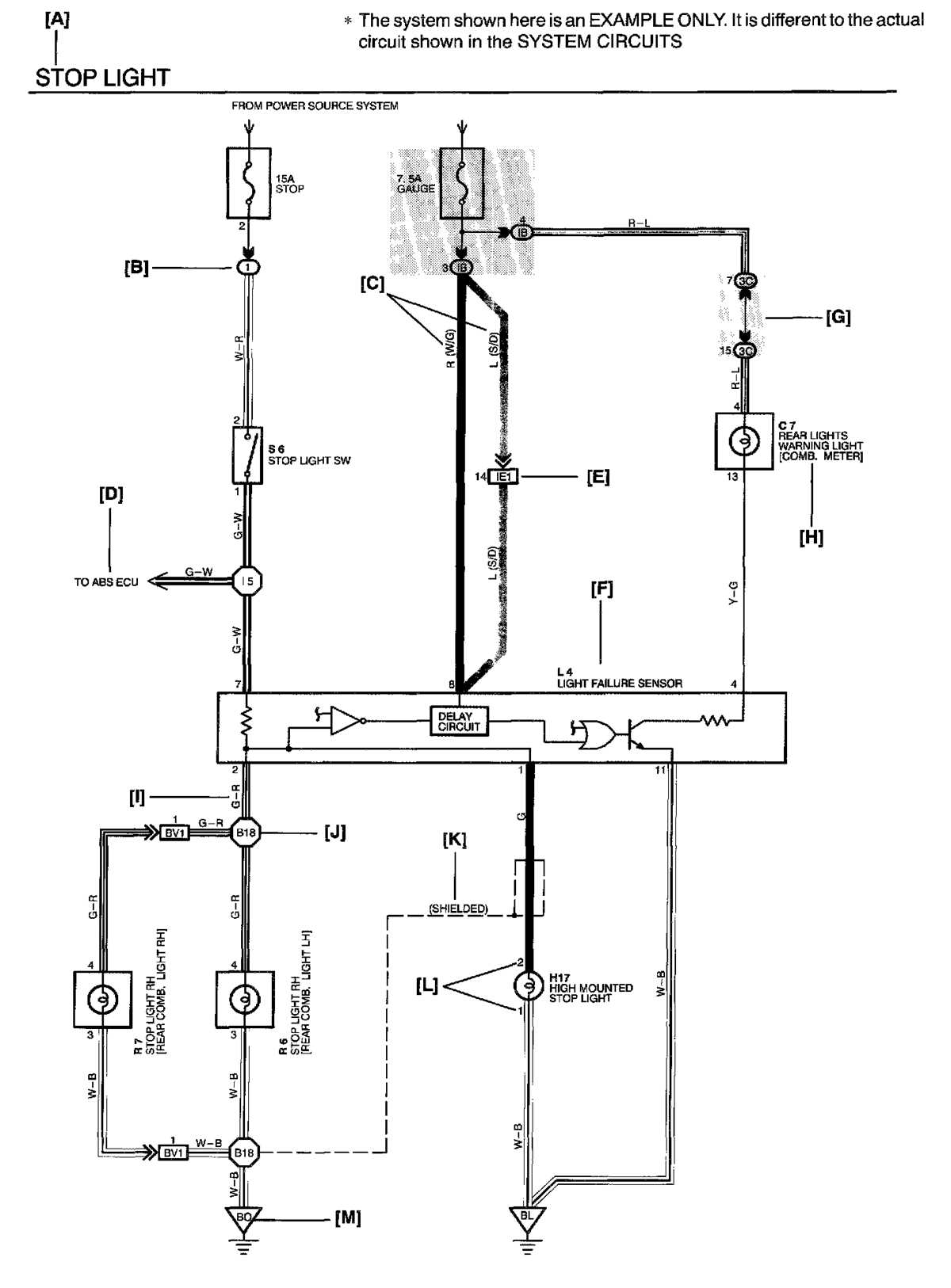

2005 Toyota Tundra Fuse Diagram: Practical Guide for Troubleshooting and Replacement
Check the interior power distribution box under the driver-side dashboard first: locate the cover panel, flip it open, and match the labeled chart to identify the exact circuit position for headlights, radio, or power windows. For the 2005 pickup by Toyota, the cabin block typically includes low-amperage inserts (5A–20A) for electronics, while higher loads are handled in the engine bay module.
The under-hood relay and protection block sits near the battery; remove the plastic lid to access larger amperage links (30A–120A). Use the printed map inside the lid to find components such as ALT (charging system), AM1/AM2 (ignition), and EFI (fuel injection). A failed lighting circuit often points to the 10A–15A slot labeled for headlamps or tail lamps; verify by cross-referencing the legend on the cover rather than guessing by position.
To test a suspected blown insert, pull it with plastic tweezers and inspect the metal strip: a break or burn mark indicates failure. For confirmation, use a multimeter set to continuity; a good piece shows near-zero resistance. Replace only with the same amperage rating–installing a higher value can damage wiring and control units.
If multiple circuits fail simultaneously, inspect the main fusible links in the engine compartment. These are bolted or clipped and may not look like standard blade pieces. Check battery terminals for corrosion and ensure the ground cable to the chassis is tight; poor grounding can mimic a blown protection element.
Common Circuit Assignments
Typical layout includes: 7.5A for dome light, 10A for gauges, 15A for cigarette lighter/power outlet, 20A for wipers, and 30A for power windows. Engine bay assignments often include 40A for ABS motor and 50A for heater blower. The exact slot numbers are printed on the cover map–use that reference instead of memory.
Replacement and Preventive Tips
Carry a small kit with spare blade inserts (5A–30A) and a puller. After replacement, switch the ignition on and verify the circuit under load; if it fails again, trace for a short in the wiring harness or a faulty component such as a motor or socket. Keep the cover seals intact to prevent moisture ingress, and avoid mixing different blade sizes (mini vs. standard) to ensure proper contact.
How to locate and identify fuse boxes in a 2005 Tundra (engine bay vs cabin layout)

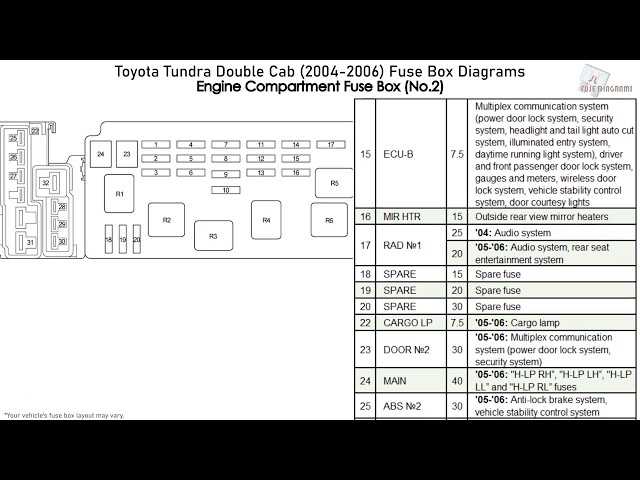

Open the hood and check the driver-side rear corner of the engine compartment: a black rectangular power distribution box sits near the battery with a snap-on lid marked by a molded label. Press the side clips to lift the cover; inside you’ll find a grid map showing relay and blade positions. High-amperage links for starter, ABS, cooling fans, and charging system are grouped here, typically 30–120A, and are larger than interior circuits.

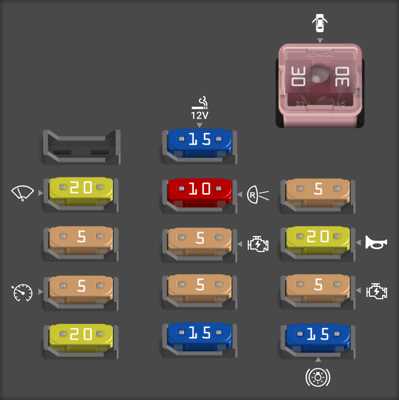

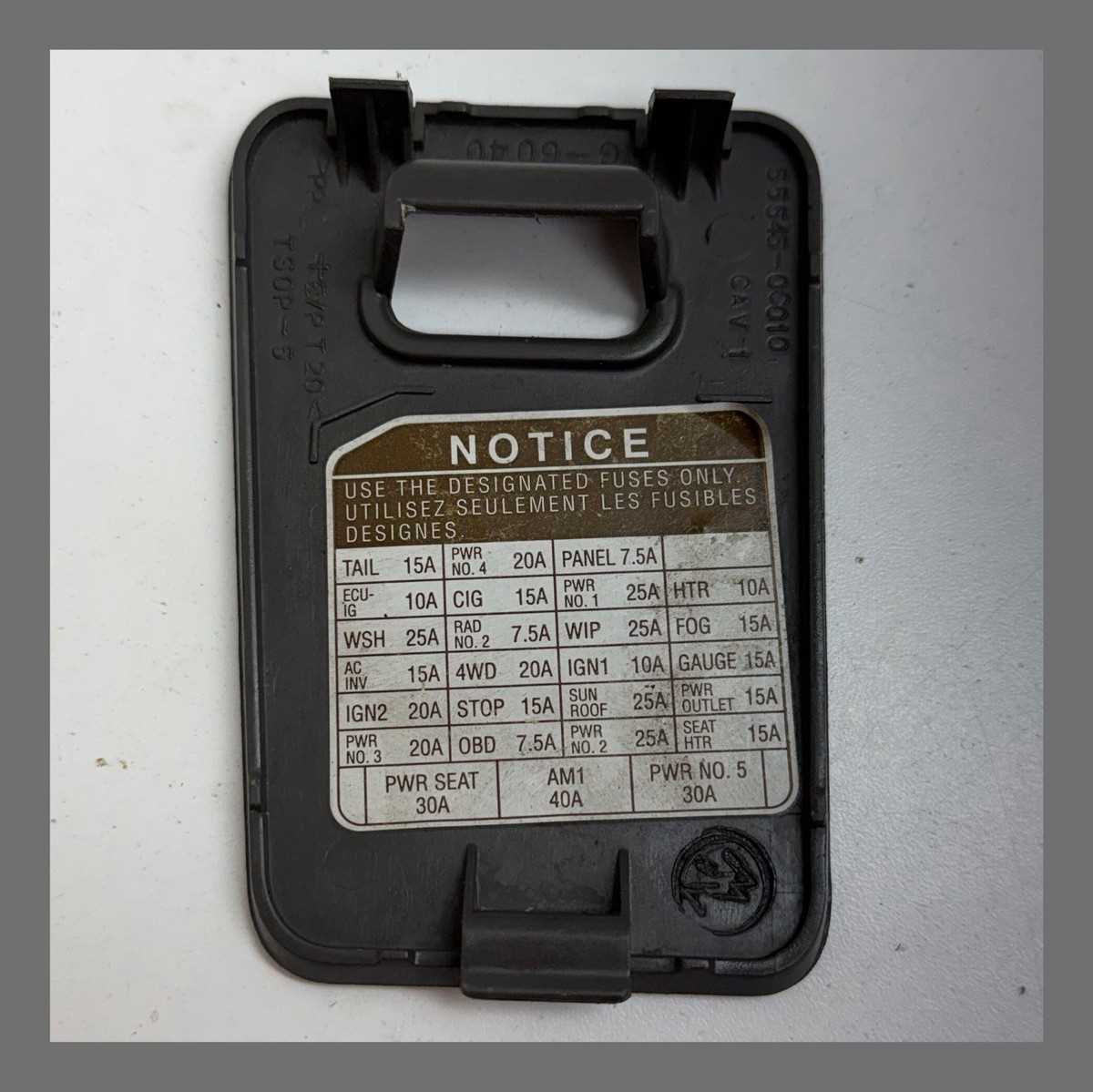

Inside the cabin, move to the driver footwell and look beneath the lower dash panel, slightly left of the steering column. A small access cover or open slot reveals the interior panel. Use a flashlight: low-profile blade slots are arranged in rows, usually 7.5–25A, handling lighting, radio, power outlets, and ECU feeds. The legend is printed on the back of the cover or adjacent trim.
Engine bay vs cabin: quick identification
- Engine compartment unit: sealed plastic housing, thick wiring looms, large relays, high-current links.
- Cabin panel: exposed or lightly covered block, smaller colored blades, tighter spacing.
- Markings: under-hood lid has embossed map; interior cover uses printed chart with abbreviations (e.g., ACC, IG, DOME).
- Access: hood release for front box; no tools for interior–hand removal of trim cover.
Verification and labeling tips
- Match amperage color codes (tan 5A, brown 7.5A, red 10A, blue 15A, yellow 20A, clear 25A) before pulling anything.
- Use the lid chart to cross-check circuit names; if missing, consult the owner manual stored in the glovebox.
- For the front unit, confirm by tracing thicker cables leading to battery positive and main harness junctions.
- For the interior block, confirm by turning ignition to ACC and testing accessory circuits with a tester.
