Start by locating the main electrical control panel under the seat, where you’ll find the key relays and connections for critical systems such as the lights, ignition, and battery. This area is key for troubleshooting issues related to power loss or malfunctioning components.
Next, check the secondary panel located near the battery, which houses circuits that control the engine, charging system, and other high-power components. These parts are crucial for the motorcycle’s overall performance, so ensure you inspect them regularly for wear or corrosion.
If you’re experiencing electrical issues, focus on the specific circuits tied to malfunctioning components. For instance, if the headlight or turn signals are not functioning, the issue might lie within the associated relay or circuit. Always refer to the vehicle’s manual to confirm relay positions and amperage requirements before replacing any part.

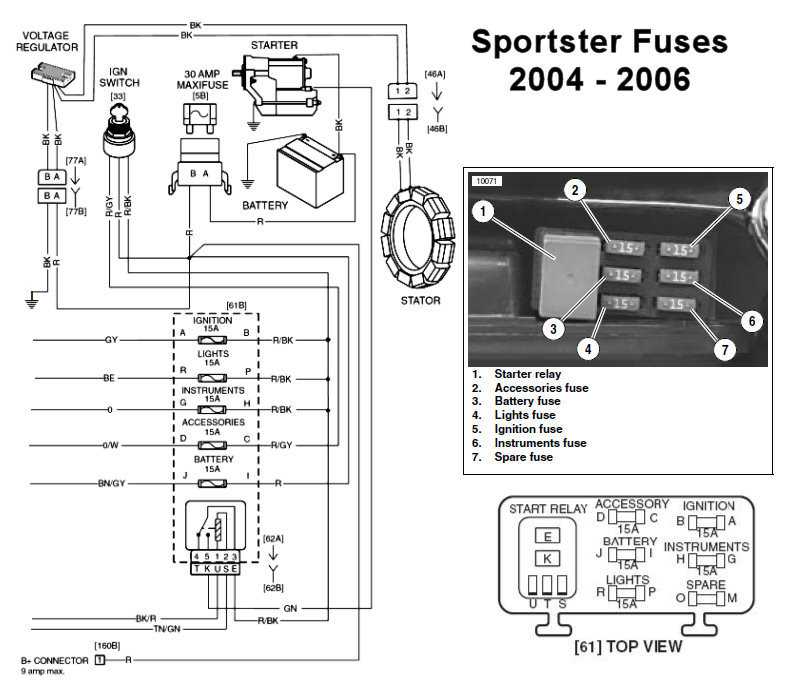

04 Sportster 12 Electrical System Layout
Start by inspecting the primary control panel, located beneath the seat. This area manages circuits that control basic components such as lights, the ignition, and the battery. Carefully remove the cover to avoid damaging any of the sensitive parts within. This panel is your first stop if the bike is experiencing power-related issues.
Check the second panel near the battery for circuits that power higher-demand components, including the charging system and the engine. Ensure that all connections are clean and corrosion-free. Poor connections in this area are common causes of electrical failures in the engine or charging system.
Before replacing any components, verify the exact amperage rating for the circuits you’re working on. Inaccurate replacements can damage the electrical system or lead to further failures. Always consult the bike’s manual for exact specifications and fuse placement before proceeding with replacements.
Identifying Faulty Circuits
If any component is malfunctioning, check the corresponding circuit for damage. For example, if the turn signals or headlights aren’t functioning, the issue could lie within the relay or its associated wiring. Inspect the connections for signs of wear or corrosion, as these can disrupt the power supply.
For more complex issues, a test light or multimeter can help identify faulty connections or blown circuits. This will ensure you don’t waste time replacing components that are not the source of the problem.
Replacing Damaged Relays and Components
When replacing damaged parts, make sure the replacement relays match the original part exactly. Installing an incorrect relay can cause overloading or failure of other components in the circuit. Similarly, always use the correct amperage when replacing any parts to prevent future electrical issues.
After replacing the necessary components, conduct a thorough system check. Verify the functionality of all electrical components, such as lights, signals, and engine management systems. If any issues persist, recheck all connections and ensure that no damage has occurred to the wiring.
- Clean all electrical terminals before reassembly.
- Ensure all components are securely mounted to avoid vibration-related damage.
- Use a dielectric grease to protect connections from moisture and corrosion.
Locating the Fuse and Relay Panels on the 04 Sportster 12
The first set of electrical connections can be found beneath the seat. This panel controls basic circuits for lights, ignition, and the battery. To access it, remove the seat carefully, and then remove the cover to expose the electrical components underneath.
Another key panel is located near the battery in the engine compartment. This area contains higher-power circuits for the engine, charging system, and headlight. Accessing this panel requires removing the battery cover and ensuring all connections are secure and free from corrosion.
Once you have located the panels, identify the relays and their corresponding circuits. These are responsible for controlling the flow of electricity to various components. A loose or damaged relay can prevent certain systems from functioning properly.
Be sure to use the correct method for opening each panel. For the under-seat panel, simply lift the seat and gently remove the protective cover. For the engine compartment panel, ensure the battery is disconnected before proceeding to avoid any accidental electrical shorts.
It’s crucial to check both panels regularly for signs of wear, especially around the connectors. Over time, these areas may accumulate dirt, moisture, or corrosion, which can interfere with the electrical connections and lead to system malfunctions.
After accessing both panels and identifying the components, verify that each is functioning properly. If any relay is not responding, it should be tested for continuity using a multimeter before being replaced. Always ensure that any replacement components match the specifications of the original parts to avoid further damage.
