Use the factory numbering and amperage ratings printed on the inner cover to verify each circuit before any work. The 2003 TJ uses two primary power distribution points: one under the hood near the battery and another inside the cabin beneath the dashboard. Each position is assigned a specific load–lighting, ignition, HVAC, and auxiliary systems–so mismatching ratings can lead to wiring damage or intermittent failures.
The under-hood module contains high-current links (20A–60A range) responsible for starter relay feed, radiator fan, ABS pump, and headlamp supply. Positions are arranged in rows, typically labeled F1 through F20, with relays grouped on one side. Check orientation carefully: the numbering sequence follows a left-to-right pattern when viewed from the front of the vehicle, not from the driver’s seat perspective.
Inside the cabin, the secondary panel handles lower-current circuits (5A–20A), including instrument cluster, radio, interior lighting, and diagnostic connector. Each slot corresponds to a color-coded insert–tan (5A), red (10A), blue (15A), yellow (20A). Replacing with a higher rating is unsafe and may bypass protection for sensitive components like the PCM and airbag system.
For troubleshooting, match the symptom to the circuit group: loss of dash illumination points to the interior panel, while cooling fan or horn issues trace back to the engine compartment unit. Always disconnect the battery before accessing terminals to avoid short circuits and accidental relay activation.

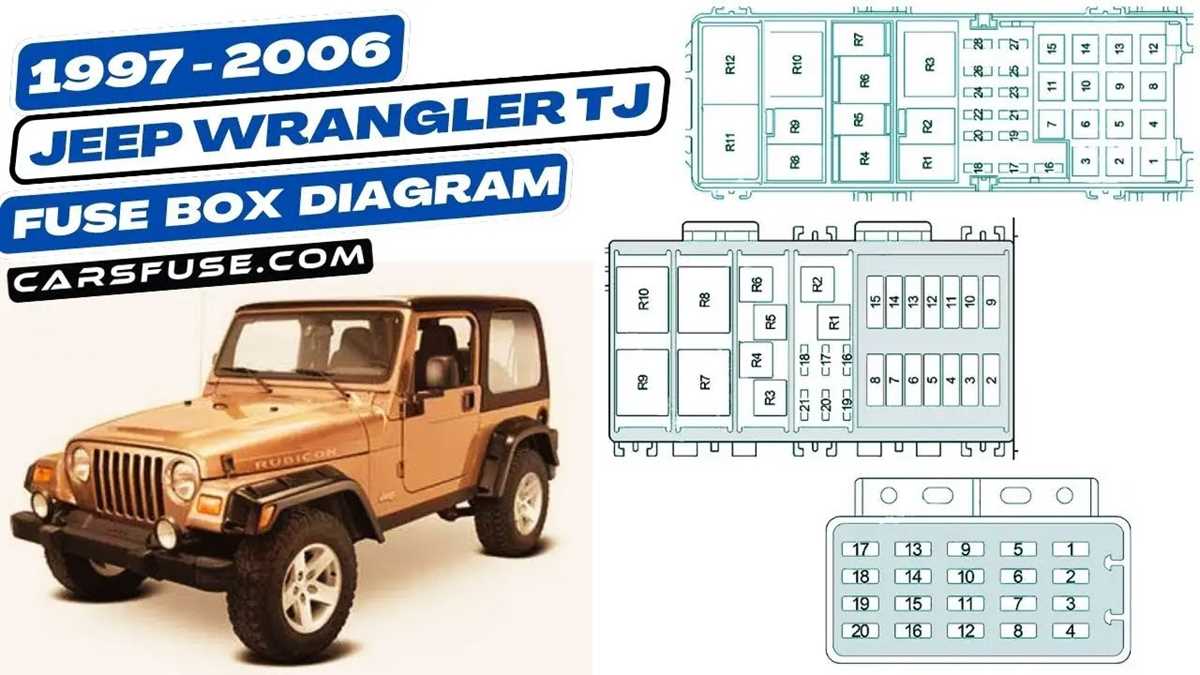

03 TJ Fuse Box Diagram: Practical Guide to Layout and Troubleshooting
Check the legend under the cover first: it shows the exact position and rating of each circuit protector in the 2003 Jeep TJ. The panel under the hood handles high-load systems like the radiator fan, ABS, and ignition relays, while the interior unit (near the glove compartment) supports lighting, radio, and auxiliary outlets. Use a multimeter instead of visual inspection–many burned elements look intact. A correct reading should show continuity; any resistance spike or open circuit indicates replacement is required. Match amperage strictly: inserting a higher-rated part risks wiring damage, while a lower rating leads to repeated shutdowns.
For layout orientation, note that slots are arranged in rows with numbered identifiers molded into the plastic base. Cross-reference these numbers with the printed chart to locate circuits such as #15 (instrument cluster) or #22 (power outlet). Relays are grouped separately and often identical in shape; swap a suspected faulty relay with another of the same type (for example, horn or AC clutch) to confirm malfunction. If the issue moves with the relay, replacement is necessary. Keep dielectric grease minimal when reinstalling components to avoid contact interference.
Troubleshooting intermittent failures requires checking not only the panel but also grounding points along the firewall and frame. Corrosion or loose ground bolts can mimic a blown protective element. Inspect wiring harnesses near the battery tray and steering column where insulation wear is common. Voltage drop testing under load gives clearer insight than static checks: a drop above 0.5V on a single line signals resistance buildup. Always disconnect the battery before pulling or inserting any component to prevent short circuits and control module damage.
How to read the 2003 Jeep TJ fuse box diagram and identify each circuit
Locate the legend printed on the inside cover and match each numbered cavity to its assigned circuit; the numbering sequence runs left to right and top to bottom, which prevents confusion when tracing power distribution across the panel.
Each slot corresponds to a specific amperage rating, typically marked in color (e.g., 10A red, 15A blue, 20A yellow). Use these color cues alongside the numbering to verify that the installed component matches the required load for systems like headlights, radio, or fuel pump.
Focus on the labeling abbreviations: common markings include “ACC” (accessory line), “IGN” (ignition-fed circuit), and “B+” (constant battery feed). These indicate whether power is present continuously or only when the key is turned, which is critical when diagnosing electrical issues.
Trace circuits by grouping related components:
- Interior electronics (radio, dome light) usually share accessory-fed lines
- Engine management (ECU, injectors) connects to ignition-controlled paths
- Safety systems (airbags, ABS) often have dedicated high-priority lines
Pay attention to relay positions adjacent to the panel layout; relays control high-current devices such as the starter motor or cooling fan. The schematic will show relay identifiers that correspond to physical blocks near the main panel.
Use the amperage and label together to confirm function:
- Find the slot number in the chart
- Read its description (e.g., “Horn/Stop”)
- Check the rating to ensure compatibility
- Inspect the connected system if malfunction occurs
Ground-dependent circuits are not always obvious in the layout. Cross-reference wiring paths in the service manual when a component fails but its slot appears intact, as the issue may lie outside the panel itself.
When replacing any element, match both position and rating exactly; installing a higher-rated component can damage wiring, while a lower rating may cause repeated failures under normal load conditions.
