Check the circuit chart on the panel cover before removing any protective element, as similar amperage ratings can control different systems such as lighting, audio, or engine management.
This full size luxury SUV from the early 2000s uses two main power distribution centers: one inside the cabin and another under the hood. The interior panel is usually positioned near the driver side lower dash, while the engine compartment unit sits close to the battery. Each location contains labeled slots with ratings typically ranging from 5A to 50A, along with relay modules for higher load circuits. Accurate slot identification reduces the risk of removing the wrong component.
Interior circuits manage systems like power seats, climate control, and dashboard electronics, while the under-hood section supports high-demand components such as cooling fans, ignition coils, and fuel delivery. When a system stops working, use a multimeter to test continuity instead of relying only on visual inspection, since internal breaks may not be visible.
Replace damaged elements with the exact amperage rating printed on top, as installing a higher value can overheat wiring and damage connected modules. Keep spare components and a simple puller tool in the vehicle for quick checks during electrical faults.

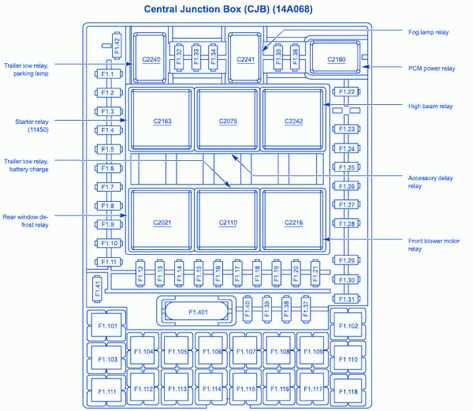

2003 Lincoln Navigator Fuse Box Diagram with Full Panel Layout and Circuit Guide
Match each circuit position with the printed chart before pulling any electrical link, since identical amperage markings may serve unrelated systems such as lighting, audio, or engine control.
The interior power distribution panel is located beneath the driver side dashboard and contains low to mid-range amperage slots, typically from 5A to 30A. These positions control components like power seats, radio, interior lighting, and climate systems. Each slot is numbered and tied to a specific function listed on the cover insert, which should be used as the primary reference.
Under the hood, the main distribution unit sits near the battery and handles high-load circuits including cooling fans, ignition modules, anti-lock braking system, and fuel delivery. These positions often range from 30A to 80A and may include relay modules alongside blade-style links for switching higher current loads.
Check slot orientation carefully, as the layout grid may appear reversed depending on viewing angle. Each numbered position corresponds to a labeled function such as PCM, ACC, or HVAC, and incorrect alignment can lead to removing the wrong component.
Use a multimeter set to continuity mode to verify each link, since internal breaks may not be visible through the plastic casing. This method provides a clear result and reduces repeated troubleshooting when dealing with intermittent electrical faults.
Install replacements with the same amperage rating, following the color coding standard used in automotive systems. Higher-rated components may prevent immediate failure but increase the risk of overheating wires and damaging connected modules.
Exact locations of interior and engine compartment fuse panels in 2003 Navigator
Access the cabin power panel by removing the lower dash cover on the driver side, positioned just above the footwell near the kick panel.
This interior unit sits behind a пластиковый trim panel that can be pulled off without tools. It contains low and medium amperage links assigned to systems such as interior lighting, power seats, audio, and climate controls. Use a flashlight to read the slot labels clearly, as visibility is limited in this area.
Open the hood to locate the main distribution center next to the battery, enclosed in a sealed plastic housing designed to protect high-current circuits.
This engine compartment unit includes larger amperage links and relay modules responsible for cooling fans, ignition, fuel delivery, and braking systems. The cover snaps into place with locking tabs and usually contains a printed layout guide on the inside.
Lift the cover straight up after releasing the clips, avoiding sideways force that could damage the hinges or sealing edges.
Keep both panel areas clean and dry, since dirt or moisture inside these enclosures can interrupt current flow and cause intermittent electrical issues across multiple vehicle systems.
