Locate the central power distribution unit behind the glove compartment for the 2002 model. Identify each protective component by its numbered slot and amperage rating to quickly isolate circuits affecting lights, ignition, or auxiliary systems.
Labeling each connector is key before removal to prevent misplacement. Use a compact flashlight to inspect the small tabs on terminals, ensuring secure contacts and avoiding intermittent failures in engine electronics or dashboard instruments.
Replace blown elements cautiously with equivalents matching the exact current rating. Using higher or lower capacity can trigger severe electrical malfunctions or damage sensitive control modules. Always keep a reference chart for the panel’s layout for faster troubleshooting during emergencies.
Regular inspection of corrosion and loose connections enhances reliability. Moisture or vibration can degrade contact points, leading to erratic behavior in climate control, infotainment, or signaling circuits. Tighten all retaining clips and verify each element engages fully to maintain stable electrical operation.
Document any modifications to auxiliary circuits like aftermarket audio or lighting. Mark the panel slots used and retain a copy of the layout to avoid conflicts with the vehicle’s original configuration, ensuring future maintenance remains straightforward and safe.
02 VW Golf Fuse Layout
Locate the power distribution panel behind the glove compartment to access the electrical protection units. Each slot carries a specific amperage rating visible on the plastic cover, ensuring circuits for lights, wipers, and infotainment remain functional.
For engine management and ignition circuits, consult the printed legend inside the lid. Slots 1 through 10 typically serve the fuel pump, ECU, and ABS modules. Using a multimeter can confirm continuity without removing components.
Interior Electrical Slots
- Slot 11: HVAC control module – 15A
- Slot 12: Central locking – 20A
- Slot 13: Dashboard illumination – 5A
- Slot 14: Radio and media interface – 10A
Exterior lighting connections are often grouped near the main relay panel under the hood. Headlamp circuits occupy the upper section, while fog and indicator lights are positioned lower. Inspect these if multiple lamps fail simultaneously.
Replacement components must match the stamped amperage. Using a higher rating risks overheating wiring, while a lower rating can lead to frequent interruptions. Maintain a small toolkit with spare units for emergency swaps.
Diagnostics and Testing
- Switch off ignition before removing any protector.
- Use a test probe or continuity tester to verify the circuit.
- Replace faulty components with exact-rated spares only.
Label the panel after any changes to prevent confusion. Cross-reference with the service manual for year-specific layouts, as minor variations exist between trims and markets. This prevents accidental damage during maintenance.
Locating the Fuse Box in a 2002 VW Golf

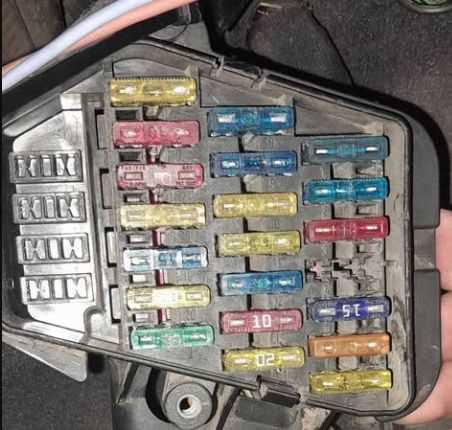

The control panel for electrical circuits in a 2002 VW model is positioned beneath the dashboard on the driver’s side. Open the lower cover by pulling it gently; the panel is secured with clips that release with minimal force. You will notice a rectangular casing with a transparent lid, allowing a clear view of the miniature power holders inside.
Another access point exists under the hood, near the battery compartment on the right-hand side. This secondary box contains higher-amperage holders for major systems like headlights, wipers, and the ignition system. Look for a black plastic enclosure with a snap-fit cover that can be lifted without tools.
Inside the cabin, the holders are arranged in rows labeled with numbers and abbreviations corresponding to different electrical modules. Each slot has a distinct shape and size, reducing the chance of incorrect insertion. A small chart is often printed on the inside of the lid, indicating amperage ratings and component assignments.
For troubleshooting, it is recommended to have a flashlight and a magnetized tool if a holder is stuck. The exterior box under the hood can be hot after driving, so ensure the vehicle has cooled. Both panels are designed for easy removal and replacement of individual elements without affecting neighboring circuits.
