Check the power distribution panels under the dashboard on the driver side and in the engine compartment near the battery before troubleshooting any electrical fault. Use the printed layout on the cover or a verified chart to match each circuit with its rating, typically ranging from 5A for interior lighting to 30A or higher for motors and control modules.
For lighting failures, inspect the small blade links marked for headlamps, tail lamps, and instrument cluster; these are often grouped together and can be tested with a multimeter set to continuity mode. If the radio, power windows, or wipers stop working, focus on medium-range links between 10A and 25A, as these protect accessory circuits.
Always disconnect the battery before removing any component to prevent short circuits. Replace damaged elements with the same amperage rating to avoid wiring damage or fire risk. Never install a higher-rated part as a temporary fix, since this can overload the wiring harness and control units.

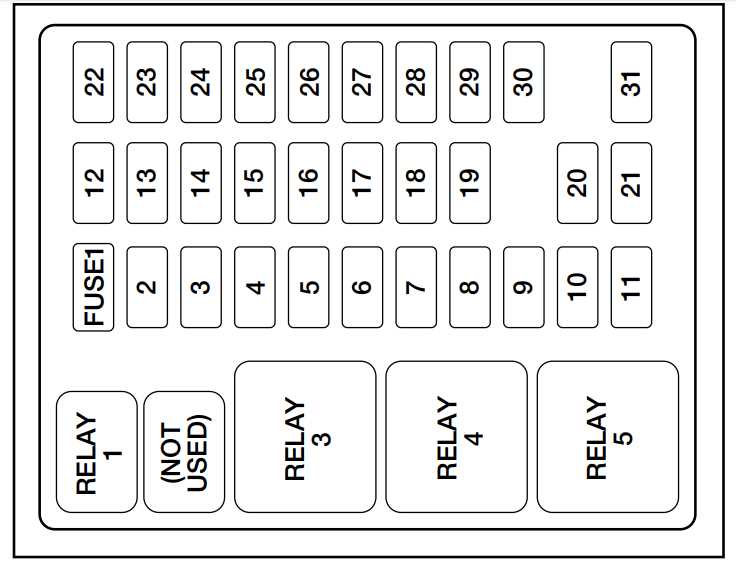

2000 Ford F350 fuse box diagram with panel locations and fuse details
Locate the interior power panel beneath the steering column on the driver side and the engine compartment unit near the battery on the left fender. Use the cover map or a service manual to match each slot with its circuit, as positions vary between trim levels and engine types.
The cabin panel contains low to mid amperage links, typically 5A to 25A, assigned to lighting, audio system, instrument cluster, and accessory outlets. For example, a 15A slot often protects the radio and cigar lighter, while a 10A slot may control interior illumination and warning indicators.
Under the hood, the distribution center handles high-load circuits such as starter relay, fuel pump, cooling fans, and ABS module. Ratings here can reach 30A, 40A, or higher, and larger cartridge-style links are used instead of standard blade types.
Check labeling inside the cover carefully, as each position is numbered and tied to a specific function. If the cover is missing, refer to a verified chart that lists slot numbers, amperage, and protected systems to avoid misidentification.
Common circuit assignments
Headlamps and exterior lighting are usually grouped with 15A–20A protection, while power windows and door locks rely on 20A–30A links. Engine control modules and transmission systems often use smaller 10A–15A protection but depend on relays located in the same under-hood unit.
Air conditioning clutch and blower motor circuits are typically protected by higher ratings, often 25A–40A, due to increased current draw. Trailer wiring and towing connectors may have separate protection, especially on models equipped with factory towing packages.
Verification and replacement tips
Use a test light or multimeter to confirm continuity before replacing any element. Remove the suspect piece with a puller tool, inspect the metal strip for breaks, and install a matching amperage part only. Mismatched ratings can damage wiring or connected modules.
Where to find interior and engine bay fuse boxes on 2000 Ford F350
Open the driver door and look under the dashboard to the left of the steering column to access the cabin power panel; remove the plastic cover by pulling it outward to expose the protected circuits.
This interior unit is mounted low, near the brake pedal area, and may require a flashlight for clear visibility. The cover usually has a molded layout showing slot numbers and circuit names.
- Position: driver side lower dash
- Access: pull-off cover or small latch
- Typical use: lights, radio, gauges, interior systems

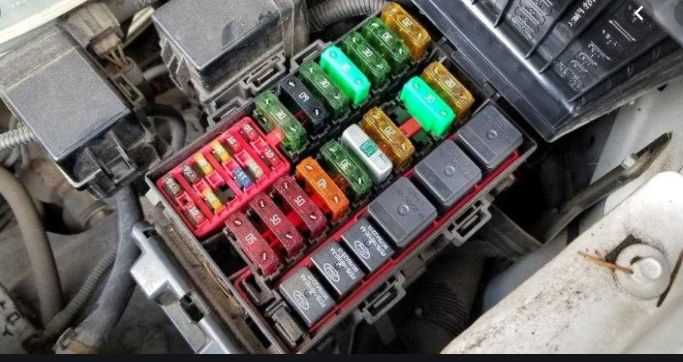

Lift the hood and move to the driver side fender to locate the engine compartment distribution center; it sits close to the battery and has a rectangular plastic housing with snap clips.
Release the clips and lift the lid to view larger cartridge-style links and relays arranged in rows. The underside of the lid contains a labeled map that matches each slot with its function.
- Position: engine bay near battery
- Access: press locking tabs and lift cover
- Typical use: starter, fuel pump, cooling fan, ABS
Access tips
Use a flat trim tool if the cabin cover is tight, and avoid forcing it to prevent broken tabs. In the engine area, check for dirt or moisture before opening to keep contaminants out of the electrical system.
Visibility and identification
Clean the cover surface if labels are faded and use a printed reference chart if markings are unreadable. Slot numbers are arranged in a grid, making it easier to trace circuits without removing multiple components.
