Check the cabin and engine compartment power distribution panels first, as both locations contain separate circuits with distinct roles: the interior unit handles lighting, infotainment, and auxiliary systems, while the under-hood module protects high-load components such as cooling fans, ABS, and ignition circuits.
The interior power panel is typically positioned behind a trim cover near the driver’s side dashboard. Each slot corresponds to a numbered circuit, where low-amperage inserts (5A–15A) are assigned to electronics like audio systems, instrument cluster, and door controls. For example, a 10A insert often protects the multimedia unit, while a 15A line may be linked to the power outlet. Always verify amperage markings before replacement to prevent wiring damage.
Under the hood, the distribution unit includes larger capacity elements ranging from 20A up to 80A. Cooling system relays and blower motors are usually paired with 30A–40A protection, while battery-linked main lines can exceed 60A. The cover of this compartment commonly features a printed scheme showing relay positions and circuit identification numbers–use it to match each slot precisely rather than relying on assumptions.
Interpreting the layout correctly reduces diagnostic time: if headlights fail, inspect the corresponding 10A–15A slot inside the cabin first; if the radiator fan is inactive, shift attention to the engine bay module and its higher-rated protection elements. Misplacing even a single insert with incorrect rating may lead to repeated failures or overheating of wiring harnesses.
Always disconnect the battery before accessing high-current sections, especially in the engine compartment. This step prevents short circuits when handling metal tools near exposed terminals. After replacement, confirm system operation immediately–if the new insert burns out again, the issue lies deeper in the circuit rather than in the protective element itself.

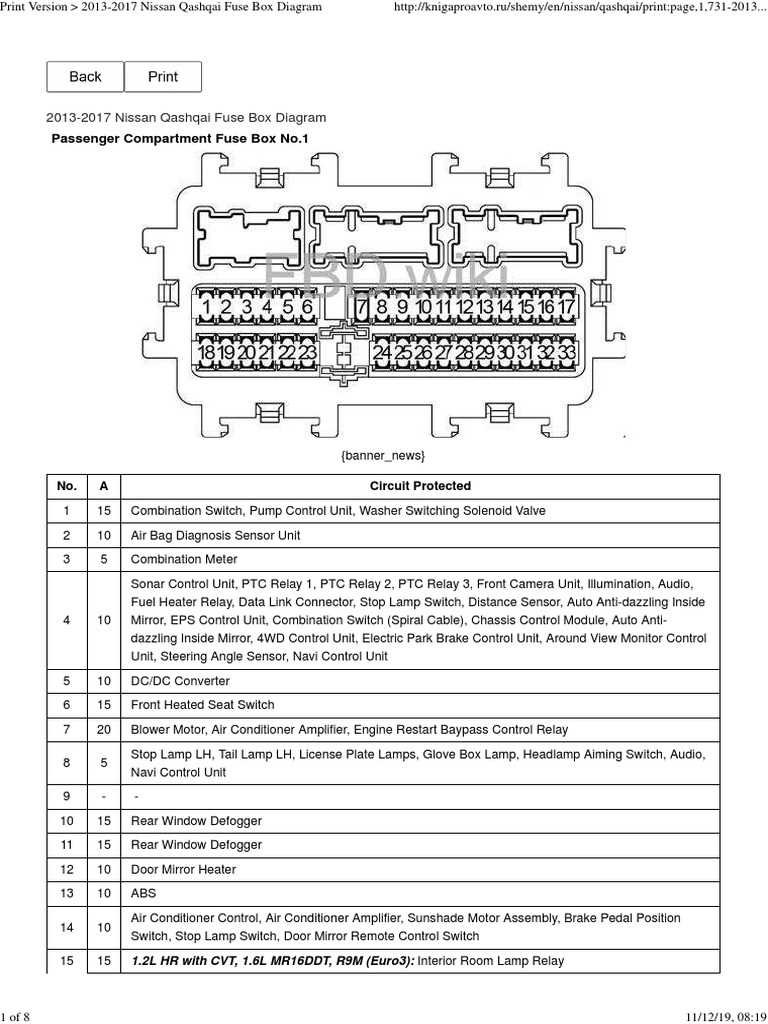

Nissan Qashqai 2015 Fuse Box Diagram

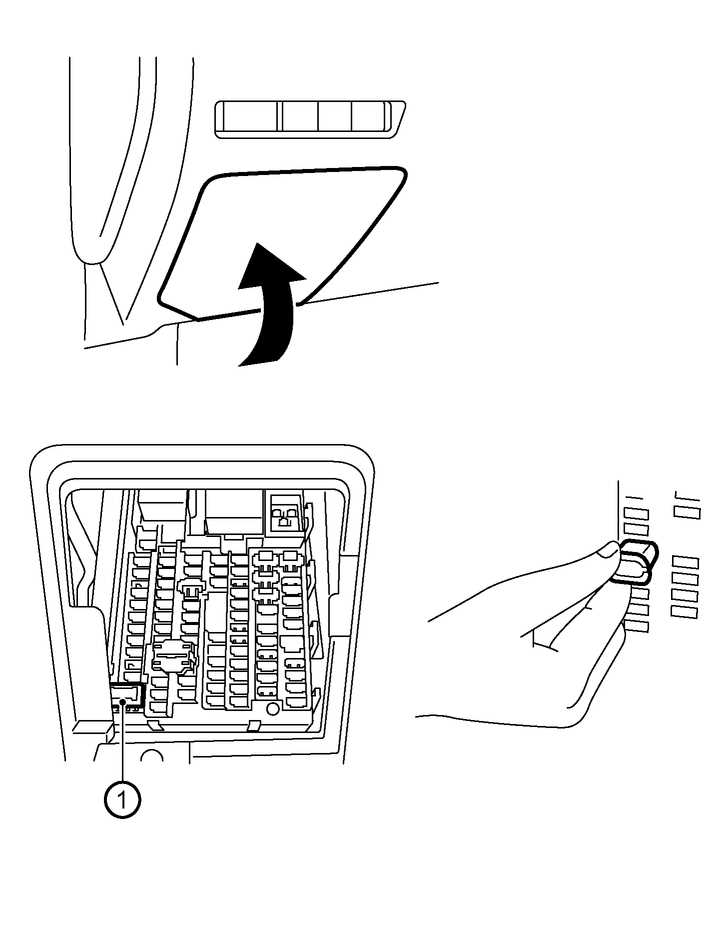

Check the cabin-mounted electrical panel first: it sits behind the lower dashboard trim on the driver’s side and contains most low-amperage circuits such as lighting, infotainment, and interior electronics. Remove the plastic cover carefully and inspect the legend printed on its rear side–this labeling provides direct mapping between slot numbers and protected components.
The engine compartment unit is positioned near the battery and handles higher-load systems like cooling fans, ABS, and ignition circuits. Access requires releasing two side clips; inside, larger relays and high-capacity links are grouped separately from standard blade elements. This separation helps identify faults faster when a major system fails.
Interior Panel Layout Details
Inside the passenger compartment distribution block, the arrangement follows a grid with vertical numbering. Typical assignments include:
- Slot 1–5: audio system, navigation display, accessory socket
- Slot 6–10: cabin lights, central locking, mirror adjustment
- Slot 11–15: wipers, washer pump, climate control module
- Slot 16–20: airbags, instrument cluster, steering column switches
Amperage ratings vary between 7.5A and 20A in this section. Replacing with a higher value risks wiring damage; always match the original rating stamped on the element’s top surface.
Engine Bay Panel Configuration
The under-hood distribution block includes both cartridge-style and standard blade components. Key circuits are grouped logically:
- Cooling system: radiator fan relays and 30A–40A links
- Braking electronics: ABS module supply with dedicated high-current protection
- Powertrain control: ECU, ignition coils, injectors
- Charging system: alternator connection and battery feed protection
If multiple systems fail simultaneously, inspect the main link near the battery terminal. A blown main link disconnects several downstream circuits at once, unlike individual slots that affect isolated functions.
Use a multimeter instead of visual inspection when diagnosing intermittent faults. A component may appear intact while internal continuity is broken. Measure resistance across the terminals; a good element shows near-zero ohms.
For recurring failures in the same slot, trace the connected circuit rather than repeatedly replacing the protective element. Common causes include damaged insulation near moving parts, moisture ingress in connectors, or aftermarket equipment drawing excess current.
