Locate the main control unit behind the dashboard on the driver’s side or under the hood near the battery. Ensure the ignition is off and remove any loose objects that may interfere with connectors before handling circuits.
Identify protective elements by referencing the codes printed next to each slot. Each code indicates the current rating and the specific system it safeguards. Keep a record of these markings for troubleshooting and maintenance purposes.
Test connections carefully using a multimeter to check continuity and voltage. Replace corroded or worn terminals immediately to avoid intermittent power failures or system malfunctions.
Maintain organized records of any changes, replacements, or observations. Tracking the condition of protective devices ensures long-term reliability for lighting, ignition, and auxiliary circuits.

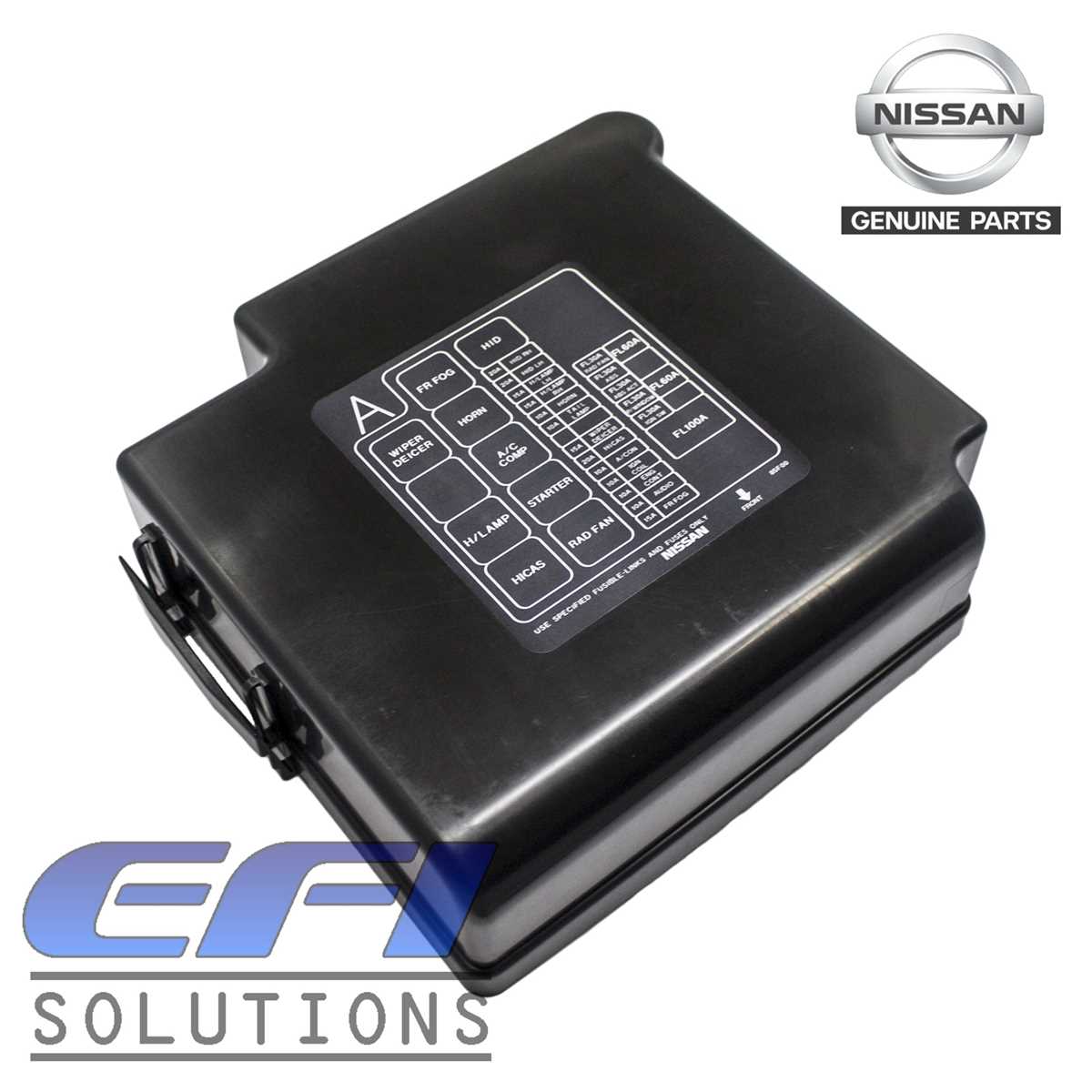

Main Electrical Panel Location and Access
Access the primary control panel under the dashboard on the driver’s side or beneath the hood adjacent to the battery. Remove the cover carefully, ensuring no metal tools contact exposed terminals to prevent short circuits or accidental power discharge.
Organize and document all connections before inspecting or replacing components. Label wires according to their system assignment and amperage rating to simplify troubleshooting and avoid misrouting that can lead to electrical malfunctions or system failures.
Connector Types and Current Ratings
Use the correct connector type for each circuit to ensure safe operation. Standard blade connectors support currents up to 20 amps, while ring terminals handle higher loads ranging from 25 to 40 amps. Mismatched connectors increase resistance and can cause overheating or intermittent faults.
Check current capacity by matching wire gauge to the connector rating. For instance, a 14 AWG wire paired with a ring terminal rated for 30A provides a secure path for high-current circuits, whereas using a thinner wire can result in voltage drop and potential insulation damage under load.
Common Connector Variants
- Blade terminals – designed for quick plug-in connections, suitable for circuits up to 20A.
- Ring terminals – bolted connections for high-current circuits up to 40A.
- Spade connectors – partially removable connections for low-current circuits below 15A.
- Bullet terminals – cylindrical plugs rated for 10–15A depending on wire gauge.
- Push-on connectors – used in sensor and accessory circuits, rated 5–10A.
Perform load testing on newly installed connectors. Apply the intended current while measuring voltage drop and temperature rise. Any noticeable heating indicates the connector is undersized and must be replaced with an appropriately rated type.
Label and color-code connectors to prevent confusion during maintenance. Consistent identification of terminals ensures each circuit remains within its designed amperage, reduces troubleshooting time, and maintains system reliability over repeated inspections.
Testing and Replacing Terminals Safely
Always disconnect the battery before inspecting terminals to prevent shorts and sparking. Use a multimeter set to continuity mode to check each terminal for secure connections and resistance levels. Terminals showing resistance above 0.05 ohms should be replaced immediately to avoid overheating in high-current circuits.
Inspect for corrosion and wear visually and with a light gauge probe. Oxidation, pitting, or discoloration reduces conductivity and can cause intermittent failures. Replace terminals exhibiting any of these signs and use dielectric grease on the new terminals to prevent future corrosion.
Proper Replacement Procedure
- Select a terminal rated for the specific wire gauge and current load.
- Crimp using a high-quality crimping tool to ensure full metal-to-metal contact.
- Verify tightness by gently tugging on the wire; the connection should not move.
- Reconnect the circuit and test voltage drop under load to confirm proper installation.
Document replaced terminals and their locations to maintain accurate maintenance records. Consistent inspection cycles combined with proper replacement techniques prevent failures in critical circuits and extend the operational lifespan of the vehicle’s electrical system.
