Check the cabin panel near the driver knee area and the engine compartment power center first, then match each slot number with the printed legend to avoid installing a component with the wrong amperage.
Interior panel typically handles lighting, audio system, power windows, and control modules, while the engine bay distribution unit carries high-load circuits such as cooling fans, starter relay, and charging system. Ratings usually range from 5A for sensors up to 40A or higher for motors and heaters.
Use a multimeter to confirm voltage on both sides of each installed element; power on one side only points to a blown link, while no voltage indicates an upstream relay or wiring issue. Keep slot numbering orientation consistent with the cover label to prevent misplacement.
Corrosion or loose contacts inside the panel can interrupt current flow, so inspect terminals and clean them if needed. Always replace with identical amperage and verify circuit names such as ignition feed, accessory line, or ECU supply before reinstalling components.
2012 Nissan Sentra Fuse Box Diagram Guide

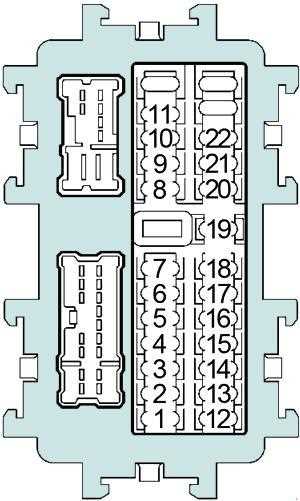

Locate the interior panel near the lower dashboard and the engine compartment power center, then match each numbered slot with the legend on the cover to identify circuit roles before removing any component. Low-amperage positions such as 5A or 10A usually support sensors, control units, and lighting circuits, while higher-rated slots like 20A–40A handle blower motor, rear defroster, and power accessories.
Use a test light or multimeter to check both terminals of each installed element, confirm correct voltage flow, and verify relay operation for systems like fuel pump, ignition feed, and cooling fan; this step isolates faults quickly and prevents installing incorrect amperage parts that may damage wiring or disable multiple systems.
Engine bay fuse box location and slot identification with circuit mapping
Open the hood and locate the main power distribution unit near the battery on the driver side, then use the cover label to align each numbered slot with its assigned circuit before removing any element.
- Main power supply lines connect through high-amperage links rated 40A–100A for alternator and battery feed
- Cooling system circuits use 30A–50A positions for radiator fan control
- Starter relay and ignition feed typically occupy central relay positions
- ABS module and pump motor are assigned to dedicated high-load slots
- Headlight and horn circuits use mid-range ratings between 10A and 20A
Check slot numbering orientation carefully since viewing angle can invert layout perception, then test each connection with a multimeter to confirm voltage presence and relay activation, ensuring proper circuit mapping and preventing incorrect component placement that may interrupt engine-related systems.
