Check the panel map and circuit assignment chart before replacing any blown link, as identical amperage ratings may serve different systems such as lighting, audio, or engine control. Using the wrong slot can lead to repeated power loss or damage to onboard electronics.
The full size pickup released in the late 2000s uses two main electrical blocks: one located inside the cabin near the driver side kick panel, and another under the hood near the battery. Each block contains labeled slots with specific amp values, typically ranging from 10A to 40A for standard circuits and higher ratings for main relays. Accurate identification of each slot prevents unnecessary disassembly and saves time during diagnostics.
Interior circuits often control accessories like power windows, radio, and dashboard systems, while the engine compartment block handles high-load components such as cooling fans, fuel pump, and ignition modules. If a system stops working, inspect the corresponding slot using a test light or multimeter rather than relying on visual inspection alone, since hairline breaks are not always visible.
Always match the replacement link to the exact amperage specified on the panel chart. Installing a higher-rated element may stop repeated failure temporarily but increases the risk of wiring damage. Keep a printed or digital circuit map available in the glove compartment for quick reference during roadside checks.
2007 Nissan Titan Fuse Diagram and Panel Layout Guide
Locate the cabin and engine bay power distribution blocks first, as each one controls separate groups of electrical circuits and requires different access steps for inspection.
The interior block is positioned near the driver side lower dash, typically behind a removable cover. It contains low to medium amperage links (10A–30A) assigned to accessories such as climate control, audio system, power outlets, and instrument cluster. Use the legend printed on the cover to match each slot with its assigned circuit rather than guessing by position.
Under the hood, the main electrical box sits close to the battery and includes high-load protection elements for systems like radiator fans, ignition coils, ABS module, and fuel delivery. These slots often range from 30A to 80A and may include relay units alongside standard blade components.
Read the slot numbering carefully, as the layout follows a grid pattern where rows and columns correspond to specific circuit groups. Misreading the orientation can lead to pulling the wrong component and leaving the actual fault unresolved.
Each slot is tied to a dedicated function such as “ECM,” “ACC,” or “TAIL LAMP,” and these labels indicate the protected circuit path. When a specific system fails, cross-check the label with the panel chart and verify continuity using a multimeter set to resistance mode.
Avoid relying only on visual checks, since micro fractures inside the metal strip can interrupt current flow without visible damage. A continuity test provides a clear yes-or-no result and reduces repeat troubleshooting.
Replace any damaged element with the same amperage rating printed on its top, commonly color-coded for quick identification. Using a higher value increases heat in the wiring harness and may damage switches or control modules.
Keep spare components in common ratings like 10A, 15A, and 20A inside the glove compartment, along with a small puller tool. This allows quick roadside repairs without removing additional panels or searching for tools.
Location of interior and engine bay fuse boxes in 2007 Nissan Titan

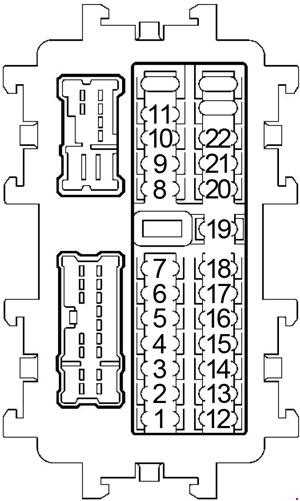

Access the cabin electrical block by removing the lower dash cover on the driver side, positioned just above the footwell near the kick panel.
- Open the driver door fully for easier reach
- Locate the small rectangular panel near the left knee area
- Pull the cover outward to expose the slot grid and legend
- Use a flashlight to read labels clearly in low light conditions

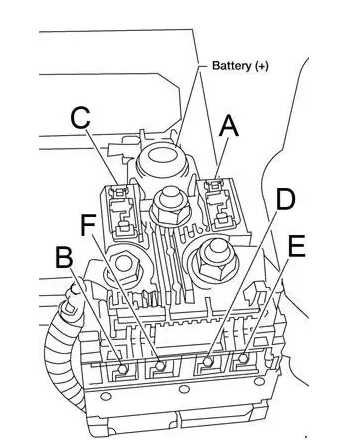

The under-hood power distribution unit sits next to the battery on the driver side, enclosed in a black plastic housing with a snap-on lid.
- Release the retaining clips on both sides of the cover
- Lift the lid straight up to avoid damaging the hinges
- Check the inside of the cover for a printed circuit layout
- Inspect both blade components and relay modules in this area
Keep both locations clean and dry, as moisture or debris inside either housing can interrupt current flow and lead to intermittent electrical faults across multiple systems.
