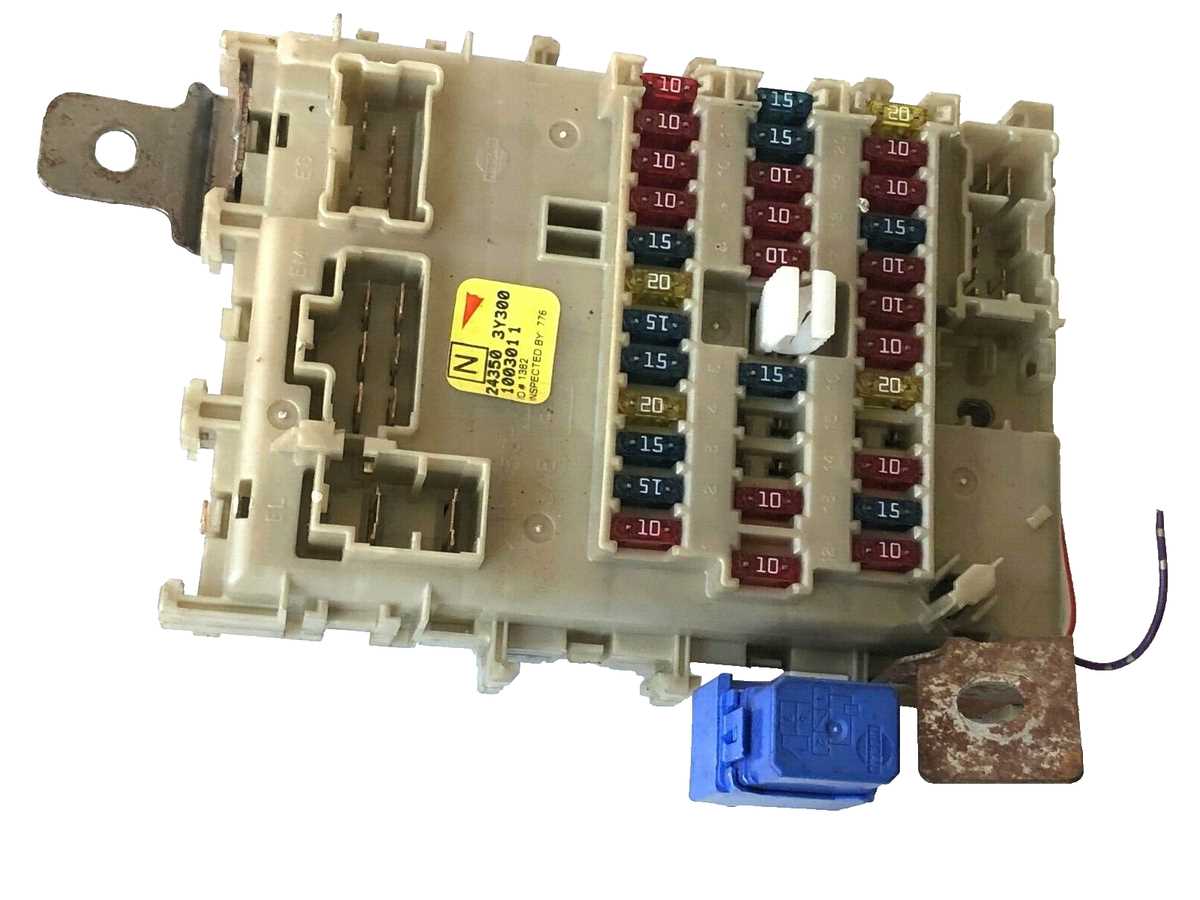

Locate the main interior power panel beneath the driver-side dashboard by removing the lower cover. This panel contains terminals for circuits controlling lighting, climate control, audio system, and auxiliary modules, allowing fast inspection and replacement.
Verify amperage ratings printed on each terminal before replacing any component. Standard values include 7.5A for interior lights, 15A for accessory circuits, and 30A for high-demand devices such as fans and starter relays.
Match each terminal to its code found on the panel cover. Common labels include IGN for ignition, ACC for accessories, ECU for engine management, and H-LP for headlights. Correct identification prevents accidental disconnection of critical systems.
Test continuity with a multimeter before installing a new terminal. Confirming each pathway ensures reliable operation of all onboard electrical systems and avoids misdiagnosis of malfunctioning circuits.
Reinstall holders securely after inspection, making sure clips fully engage. Loose connections can cause intermittent failures, voltage drops, or damage to electronic modules throughout the vehicle.
Location of Interior Power Panels in Vehicle
Access the driver-side lower dashboard panel by removing the plastic cover beneath the steering column. This cluster controls circuits for interior lighting, climate control, horn, and infotainment system.
Check the passenger-side panel located near the glove compartment for additional low-current terminals. These manage auxiliary circuits such as seat heaters, courtesy lights, and power outlets.
Inspect under-hood panels for high-current circuits. They are positioned near the battery and firewall, controlling headlights, radiator fan, ABS, and starter motor circuits.
Rear cargo area panels are placed behind the right side trim. These terminals serve tail lights, rear power outlets, and optional accessories like trailer wiring.
Verify panel clips and fasteners before removal. Driver-side panels use push clips, while under-hood clusters are secured with screws and tabs that must be released carefully.
Label circuits by photographing the panel before removal. This ensures correct reinstallation and prevents accidental disconnection of critical systems during maintenance.
Ensure all slots are accessible for inspection. Some terminals may be partially hidden behind trim panels or air ducts, requiring removal of minor components to reach them safely.
Keep spare terminals for circuits prone to frequent overloads. Immediate replacement maintains system reliability and prevents damage to connected modules and accessories.
Circuit Functions and Amperage Ratings
Check amperage values printed on each terminal before replacement. Standard ratings include 7.5A for interior lighting, 15A for accessory systems, and 30A for high-current circuits like radiator fans and starter relays.
Identify each circuit using the codes on the panel cover. Labels include IGN for ignition circuits, ACC for accessories, ECU for engine management, and H-LP for headlights. Correct identification prevents accidental disconnection or short circuits.
High-current terminals handle sustained loads from components such as the starter motor, ABS module, and cooling fan. These terminals are larger and often placed under the hood for heat dissipation and easy access during maintenance.
Low-current terminals manage devices like interior lights, turn signals, horn, and infotainment modules. They are usually smaller and located in the cabin for easy inspection and replacement.
Regular inspection of terminals is necessary to detect discoloration, melting, or corrosion. Cleaning contacts with electrical contact spray ensures consistent current flow and reduces the risk of intermittent failures across systems.
Keep spare terminals for circuits prone to frequent overloads such as brake lights and power outlets. Immediate replacement maintains system reliability and protects connected devices from voltage spikes or interruptions.
Safe Inspection and Replacement of Electrical Holders
Disconnect the vehicle battery before accessing any panel to prevent short circuits and protect sensitive electronic modules during inspection or replacement of terminals.
Inspection Process
Check each holder visually and electrically:
- Look for signs of overheating such as discoloration or melting.
- Use a multimeter to measure continuity; intact pathways show near-zero ohms.
- Confirm the slot code to ensure proper identification of circuits like headlights, horn, and ECU modules.
Replacement Procedure involves matching the amperage rating of the new holder with the original. Typical ranges are 7.5A, 15A, and 30A depending on the load.
Remove the old terminal using insulated pliers, pulling straight to avoid bending or damaging connectors. Insert the new holder until the clips engage fully to ensure a secure connection.
Testing and Verification
After replacement, reconnect the battery and test all circuits connected to the panel. Activate headlights, horn, wipers, and interior lights to confirm proper function.
Maintain a log of replaced terminals to track circuits prone to frequent overloads. This helps prevent repeated failures and supports preventive maintenance.

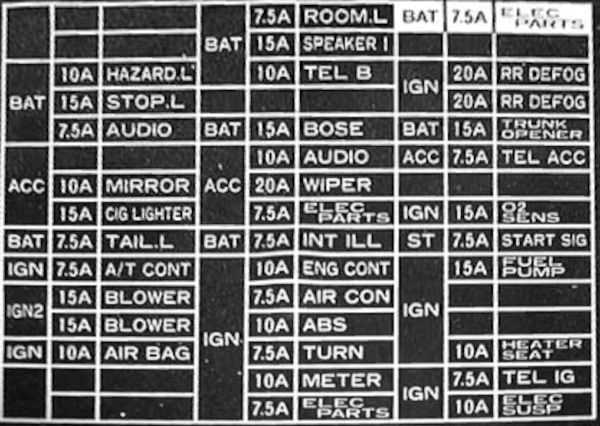

Use the table below to reference common amperage ratings and typical circuits for interior and under-hood holders:
| Terminal Rating | Common Circuit |
|---|---|
| 7.5A | Interior lighting, sensors, infotainment |
| 15A | Accessory outlets, climate control, turn signals |
| 30A | Radiator fan, starter motor, ABS module |
Clean connections using electrical contact spray if corrosion or dirt is present. Proper maintenance ensures consistent electrical flow and extends the lifespan of all vehicle circuits.
