Locate the cabin-mounted electrical panel beneath the dashboard on the driver side and remove the plastic cover to access protected circuits; this area contains labeled slots with specific current ratings that control lighting, radio, power windows, and dashboard systems.
Each slot is marked with a number and paired with a defined amperage value, typically ranging from 10A to 30A, where smaller ratings handle electronics like the audio unit, and higher ratings support blower motor or window regulators; using the wrong rating can damage wiring or connected components.
Check the legend printed on the cover or near the panel frame to match each position with its assigned system; for example, mid-range slots often correspond to HVAC controls and instrument cluster, while edge positions may handle auxiliary outlets or lighting circuits.
Remove any suspect element with a puller tool and inspect the metal strip inside; a broken link indicates failure, and replacement must match both size and rating to maintain stable operation across connected electrical paths.

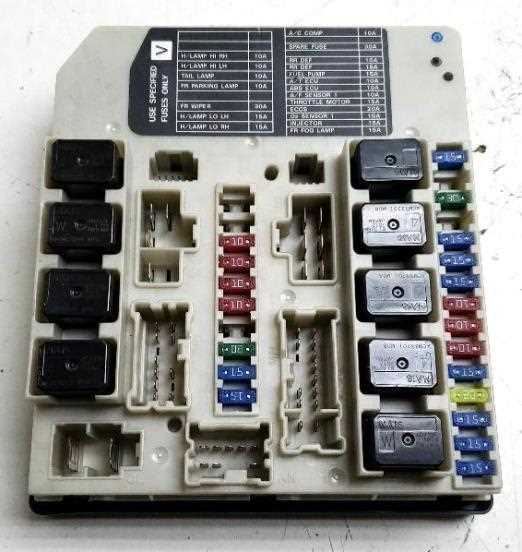

2005 Nissan Sentra Interior Fuse Box Layout with Circuit and Amperage Details
Use the panel map printed on the cover to match slot numbers with their assigned circuits; positions are arranged in rows, where lower numbers typically control lighting and audio, while higher numbers support HVAC and power accessories.
- Slot 1–5: 10A–15A circuits for radio, dash lights, and control switches
- Slot 6–10: 15A–20A lines for wipers, turn signals, and instrument cluster
- Slot 11–15: 20A–30A supply for power windows and blower motor
- Slot 16+: mixed ratings for auxiliary outlets and backup systems
Each position uses standardized color coding, making it easier to verify ratings during replacement; always match amperage exactly to avoid overheating or circuit interruption.
Check related relays mounted above the panel when multiple systems fail at once; these modules handle load switching for ignition, fan, and accessory power, and a faulty unit can mimic a blown protective link, so test continuity and swap with a known working relay if needed.
Interior fuse panel location under dashboard and access steps
Open the driver-side lower dash area and look directly beneath the steering column; the electrical panel sits behind a small rectangular cover aligned with the left knee position.
Release the cover by pulling from the notch at the bottom edge; no screws are used, so moderate hand pressure is enough to disengage the clips without damaging plastic tabs.
Move the seat fully back to create working space, then tilt your headlamp or flashlight upward to clearly see slot numbering and labeling printed near the mounting frame.
Disconnect the negative battery terminal before touching any components; this prevents accidental short circuits while removing or checking protective inserts.
Use a plastic puller tool stored inside the panel or a similar non-metal tool to extract each element; avoid metal pliers since they can bridge contacts and cause sparks.
Check the orientation of each slot before removal; positions are tightly spaced, and incorrect reinsertion may lead to malfunction in lighting, audio, or climate control systems.
Inspect the backside of the cover where a printed chart shows circuit assignments; align this reference with visible numbering to confirm correct slot identification.
After completing inspection or replacement, press the cover firmly until clips lock into place, then reconnect power and verify operation of all affected systems.
