Locate the interior power distribution block under the dashboard on the driver side and verify each slot label before replacing any component to prevent damage to connected systems.
This vehicle uses a centralized electrical block with blade-type links arranged in numbered positions. Each slot corresponds to a specific circuit such as lighting, radio, climate control, or power accessories. Common ratings include 10A for lighting circuits, 15A for audio and accessory outlets, and 20A to 30A for motors and control modules.
Cross-check slot numbers with a printed layout or cover legend to identify the correct circuit quickly. Misplacing even a single component may disable unrelated systems like interior lights or dashboard indicators.
Use a multimeter for continuity testing instead of relying only on visual inspection, since internal breaks are not always visible. Keeping spare blade links in standard ratings ensures quick replacement during electrical faults.

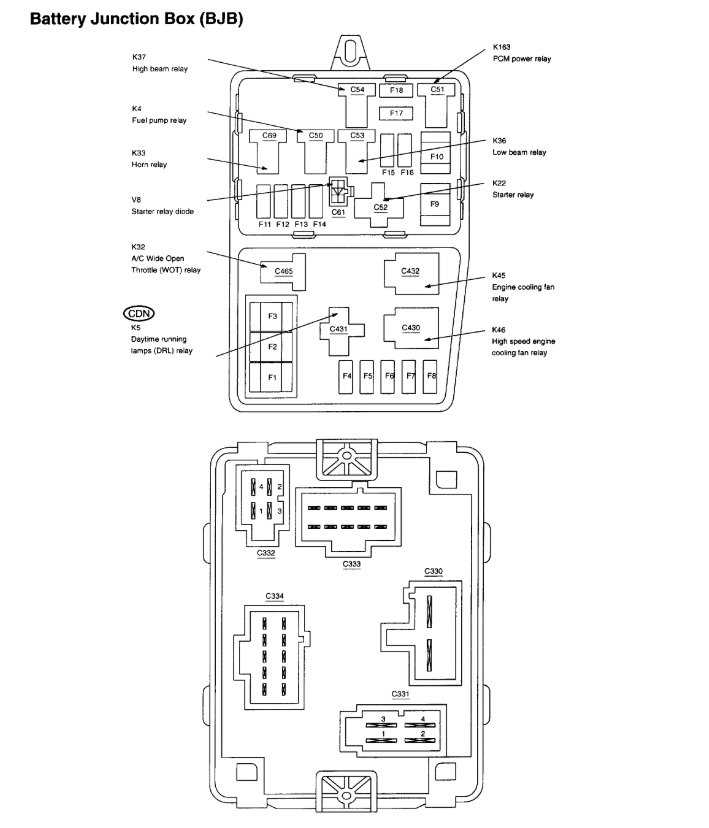

1999 Mercury Cougar Fuse Panel Diagram with Layout and Circuit Mapping
Identify the correct slot by matching its number and label before pulling any blade component, since multiple circuits share similar physical sizes but differ in amperage and function.

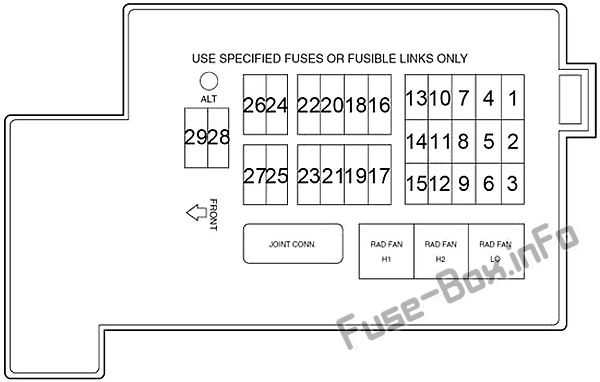

The interior electrical distribution unit is organized into rows with clearly numbered positions. Each slot is assigned to a specific system, and the cover typically includes a printed legend. Common circuit assignments include:
- Headlamps and exterior lighting
- Instrument cluster and warning indicators
- Audio unit and antenna amplifier
- Power windows and door locks
- Climate control system
Follow a left-to-right, top-to-bottom sequence when locating a slot number to avoid confusion, especially when multiple rows contain identical component sizes.
Amperage ratings are stamped on top of each blade unit and must match the original specification. Typical values include:
- 10A for lighting and control circuits
- 15A for accessory systems
- 20A–30A for motors and higher load devices
Installing a higher-rated part can lead to wiring overheating, while a lower rating may cause repeated failure during normal operation.
Check related systems when diagnosing a fault, since a single blown link may disable multiple features tied to the same circuit path, such as dashboard lights and tail lamps.
Use a test light or multimeter to confirm power flow across both terminals of the slot, ensuring the issue is not caused by upstream wiring or a relay rather than the protective component itself.
Exact Location of Interior Fuse Panel and Access Without Tools
Open the driver door and inspect the lower dash area near the kick panel, where the interior electrical block is mounted behind a removable trim cover.
The access point sits slightly forward of the door hinge, below the steering column. A plastic cover conceals the slot array and can be removed by hand. No screws are used; the cover is held by clips that release with a firm pull. Position your fingers along the edge and pull outward evenly to avoid bending the plastic.
Check for a small notch or grip point along the cover edge, which indicates the correct place to apply pressure for removal.
Once opened, the internal layout becomes visible with numbered positions and printed labels. The legend may appear on the back side of the cover or adjacent to the slot grid. This placement allows quick identification without tools or disassembly.
Keep the ignition off before touching any component to prevent short circuits or accidental activation of electrical systems.
Reinstall the cover by aligning clips and pressing evenly until it snaps into place, ensuring a secure fit that protects the internal connections from dust and accidental contact.
