Locate the primary interior control unit behind the glove compartment on the passenger side. Remove the retaining screws and gently lift the cover to reveal labeled connectors and protective links. Check each link rating before replacement to prevent system overload.
For engine compartment circuits, find the main distribution unit near the battery. Disconnect the battery before inspecting high-current terminals to avoid shorts or sparks. Identify the relay slots and high-amp connections clearly marked on the underside of the panel cover.
Maintain an organized inspection routine by documenting link positions and amperage values before removing any components. Keep a small digital camera or notepad handy to record placements and prevent errors during reassembly.
Replace defective connectors only with equivalent specifications to preserve the integrity of electronic modules. Always consult the vehicle’s service manual for recommended part numbers and torque settings for mounting screws.
Mercedes W205 Electrical Panel Overview
Identify the interior control module behind the glove compartment on the passenger side. Remove the cover carefully to expose the rows of protective links and relay slots. Inspect each link for discoloration or corrosion before replacing.

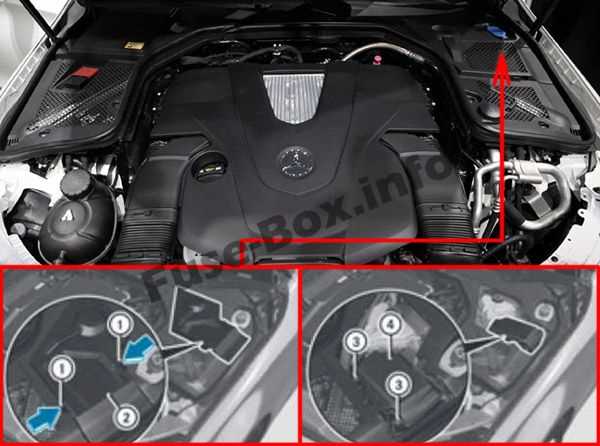

Engine compartment power distribution is located near the battery. Always disconnect the main battery terminal before handling high-amp connectors to avoid shorts. Check that the high-current terminals are securely seated and free from debris.
Use labeling to avoid confusion when removing multiple connectors.
- Mark each relay location with a temporary sticker
- Note amperage ratings for every link
- Photograph the layout for reference
Relays for lighting, climate, and auxiliary modules are mounted on the top section of the interior panel. Replace any relay only with the specified amperage version to prevent system failure.
High-current circuits in the engine compartment include starter, alternator, and cooling fan lines.
- Verify terminal tightness
- Clean contacts with electrical-safe cleaner
- Check for frayed wiring insulation
Protective covers and gaskets must be fully seated after inspection. Improper sealing can allow moisture intrusion and lead to short circuits.
Regular maintenance schedule should include a visual inspection of all panels at least twice a year. Look for melted connectors, loose screws, or burnt terminals and replace immediately.
Document every change or replacement in a maintenance log. Recording amperage values and replacement dates ensures consistent performance and simplifies troubleshooting.
Identifying Interior Circuit Panels and Their Functions
Locate the passenger-side control panel behind the glove compartment. It contains low-voltage circuits for lighting, infotainment, and climate controls. Carefully lift the cover to inspect rows of links and mini-relays.
Dashboard accessory circuits are concentrated along the top row. Each link corresponds to switches for the instrument cluster, central console, and audio system. Check for discoloration indicating overload or heat damage.
Relays for safety modules are situated near the center of the panel. Replace any relay showing loose terminals or corrosion using the exact amperage rating specified.
Interior lighting circuits are grouped in the lower section.
- Check cabin lights, footwell illumination, and door-activated circuits
- Confirm that connectors are firmly seated
- Clean contacts with electrical-safe cleaner if necessary
HVAC and climate control circuits often include fuses and relays for blower motors and actuators. Test continuity before replacing components to avoid unnecessary replacements.

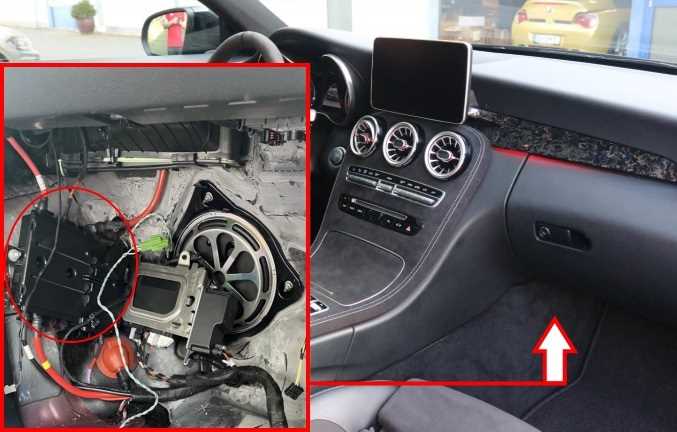

Power seat and mirror adjustment circuits are located near the passenger side footwell. Inspect connectors for bent pins and ensure proper seating to prevent intermittent operation.
Document each circuit function by labeling links and relays during inspection. Maintaining a reference map helps during future maintenance or troubleshooting.
Regular panel inspection should include visual checks for burnt terminals, loose connections, or moisture intrusion. Routine monitoring ensures consistent interior electrical performance.
