Check the cabin power block on the driver side behind the lower dash trim first, then inspect the engine bay unit near the battery to match each circuit with its assigned slot and amperage rating. Always compare numbers printed on the cover with the actual insert positions before replacing any blown link.
Inside the vehicle, the interior electrical center contains low-amperage circuits for lighting, infotainment, and control modules. Use a plastic trim tool to release the cover clips and avoid damaging mounting tabs. The legend on the lid shows slot numbers paired with functions such as audio system, instrument cluster, and climate control.
Under the hood, the main distribution unit manages high-load components including cooling fans, ignition supply, and starter relay. Disconnect the negative battery terminal before handling high-current elements to prevent short circuits. This section often uses larger cartridge-style links rated from 30A to 80A.
Each relay is positioned next to its corresponding circuit group, with labels indicating roles like fuel pump control, horn activation, or powertrain switching. Listen for a click when testing relays while turning ignition or activating systems, which helps confirm operation without removal.
Color coding on protective elements simplifies identification: yellow for 20A, blue for 15A, red for 10A. Match both color and printed rating to avoid installing an incorrect part that could damage wiring or modules.
Mercedes GLC 300 Fuse Box Diagram and Component Layout Guide
Match each slot number with the cover legend and verify amperage before replacing any protective link, focusing first on the interior module under the dashboard and then the engine compartment unit near the battery. Incorrect ratings can lead to wiring damage or module failure, so always install the same value and type.
The cabin electrical center contains grouped circuits for infotainment, interior lighting, seat adjustment, and control units, typically using blade-style elements rated between 5A and 25A. Slot numbering runs in rows, often left to right, with dedicated positions for systems like radio, instrument cluster, and power outlets. The engine bay distribution unit handles higher loads such as cooling fans, ignition supply, and starter control, using larger cartridge-style components rated up to 80A, along with relays positioned nearby for switching functions like fuel delivery and horn activation.
Relays are arranged adjacent to their related circuits and identified by codes printed on the housing; swap with a matching relay from a non-critical circuit for quick testing if a system fails to activate. Check for corrosion or heat marks on terminals, and confirm tight seating after inspection, since loose connections often cause intermittent faults.
Exact Fuse Box Locations in Mercedes GLC 300 Cabin and Engine Bay
Open the driver side lower dash panel and locate the interior power distribution unit positioned behind a removable trim cover near the footwell. Use a plastic pry tool to release clips without cracking the panel, then pull the cover straight out to access the internal slots.
The cabin unit sits slightly above the pedals on left-hand drive vehicles, aligned vertically with the steering column. A small latch or pressure tab secures the cover, and the slot map is printed on the inner side, showing numbered positions tied to systems like infotainment, seat motors, and interior lighting.
Move to the engine compartment and locate the main electrical center near the battery housing on the right side. This enclosure is sealed with a tight plastic lid that requires firm upward pressure on both locking tabs before lifting.
Inside the engine bay unit, high-current protection elements and switching relays are arranged in rows with larger cartridge-style components placed toward the outer edges. Spacing between elements allows heat dissipation, so avoid forcing parts into adjacent slots.

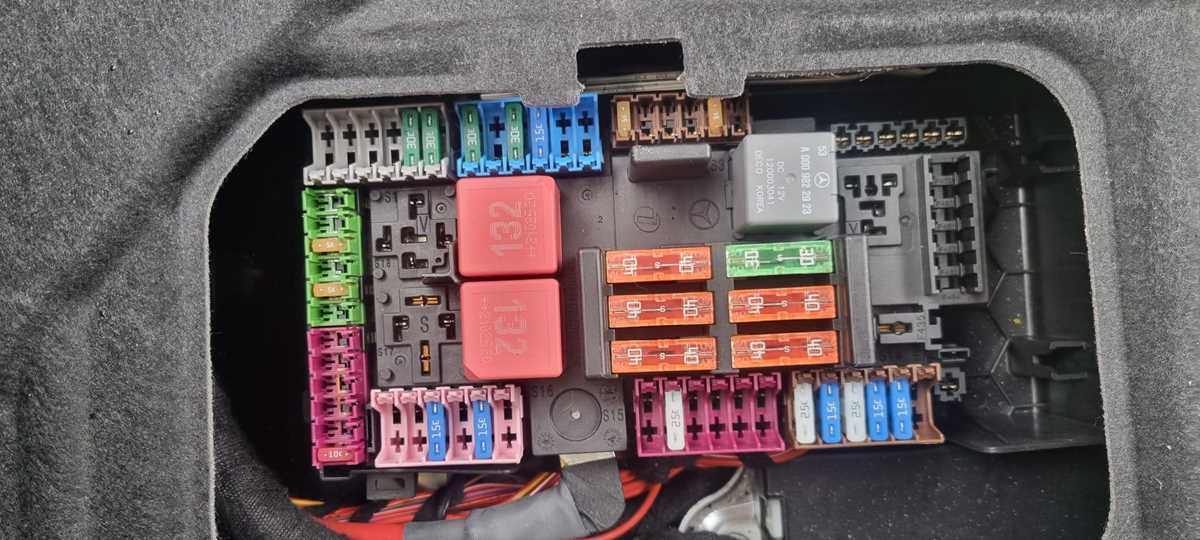

A secondary rear compartment unit may be present in some configurations, positioned behind a side trim panel in the cargo area. Check this location if rear electronics like tail lights or power liftgate stop working.
After accessing any unit, ensure the cover is fully seated and all clips are locked back into place to protect internal circuits from moisture and dust intrusion.
