Start by locating the main panel for vehicle circuitry under the dashboard on the driver’s side. Use a flashlight to identify all miniature circuit holders and note their positions against the reference chart in the service manual.
Label each connection clearly using masking tape or markers before removal to prevent confusion during reassembly. This approach avoids accidental short circuits or miswiring.
Check the amperage rating on every protective element before replacement. Overrated or underrated units can cause malfunction or permanent damage to control modules and lighting systems.
Keep a set of precision testers and a small screwdriver kit in the glove compartment for quick inspection. Regular visual and electrical checks prevent unexpected power interruptions in critical systems such as indicators, climate control, and infotainment circuits.
Document any changes made to the wiring layout. Photographing the original setup helps maintain accurate records for future repairs or diagnostics, reducing the risk of operational errors.
Access and Maintain Vehicle Circuit Panel
Locate the protective panel beneath the dashboard on the driver’s side and remove the cover carefully. Check the orientation of each miniature circuit holder before touching any connectors. Use a small flashlight to distinguish between high- and low-amperage elements. Mark each location with a sticker or numbered tape to match the reference guide.
Follow these steps for accurate inspection and replacement:
- Identify each protective element by its amperage rating and function.
- Test continuity with a multimeter to detect broken or overloaded circuits.
- Replace damaged components with exact-rated spares from the manufacturer.
- Reassemble in the same order and secure all connectors firmly.
- Run a system check for headlights, indicators, and auxiliary electronics before finalizing.
Locate and Identify All Electrical Protectors in the Vehicle

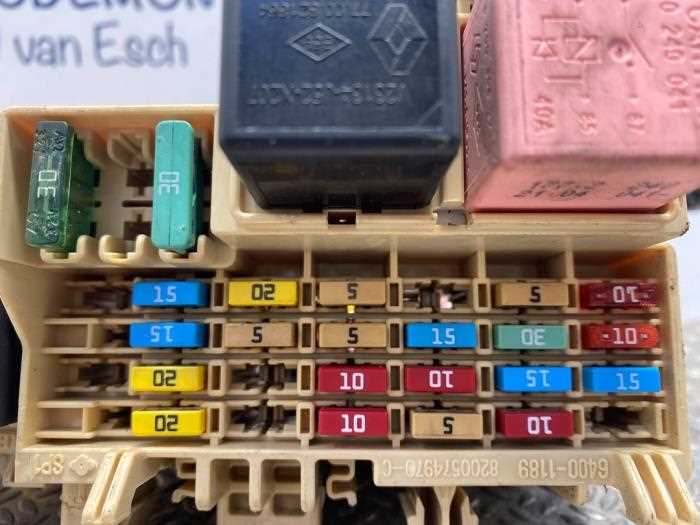

Start by opening the access panel under the driver’s dashboard. Use a flashlight to inspect each holder carefully. Note the size and color coding to distinguish between low- and high-capacity units.
Check the side compartments under the hood for additional protective elements linked to major power lines. Label each slot with numbered tape to match the reference chart in the service guide.
Remove the panel cover slowly to avoid dislodging adjacent connectors. Keep a small tray nearby to hold tiny clips and terminals for reassembly.
Examine the amperage markings on every element before testing. Use a multimeter to verify continuity and identify any burnt or damaged units.
Document the positions with a photo before making changes. Accurate records prevent incorrect installation during maintenance or replacements.
Inspect auxiliary panels for smaller protectors controlling systems like interior lighting, wipers, and infotainment modules. These are often overlooked but critical for proper operation.
Organize replacements by rating and type. Keep a labeled kit of spare components to handle immediate swaps without confusion.
After completing identification, perform a full system check on all electrical circuits, including indicators, climate control, and charging points. Confirm every circuit is operational before closing the panels.
