Check the vehicle’s electrical layout chart and locate the correct circuit box before replacing any blown link. On this compact sedan, power distribution is split across several modules, each protecting specific systems such as lighting, ignition, and onboard electronics. Access points vary, so identifying the exact compartment under the hood or inside the cabin prevents unnecessary disassembly.
Each protective element is rated by amperage, commonly ranging from 5A to 40A, and is assigned to a defined circuit. A quick visual inspection helps detect a damaged strip inside the housing, while a multimeter provides confirmation by measuring continuity. Always match the amperage rating exactly to avoid overheating or damage to wiring.
Factory charts map every slot with precision, linking positions to functions like fuel pump, climate control, or control modules. Using the correct reference allows you to trace faults faster, especially when dealing with intermittent electrical issues such as non-working windows or dashboard warnings.
2003 Mercedes C230 Kompressor Fuse Panel Diagram

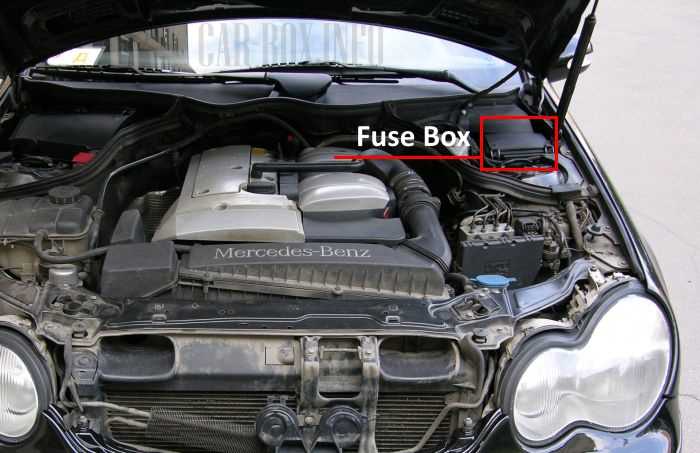

Locate the correct power distribution box first by checking under the hood on the driver side and inside the cabin near the dashboard edge. This model uses multiple circuit blocks, each assigned to separate systems such as engine management, lighting, and interior electronics. Removing the plastic cover reveals a numbered layout that corresponds to a printed chart, usually attached to the cover or found in the owner manual.
Each slot contains a protective link with a specific amperage rating, typically color-coded: brown for 7.5A, red for 10A, blue for 15A, yellow for 20A, and green for 30A. Never replace a damaged element with a higher-rated one, as this can lead to wiring damage or component failure. Always inspect the metal strip inside; a break or burn mark indicates failure.
Reading the Layout and Matching Circuits
Use the numbering system to match each position with its assigned circuit, such as fuel pump, ignition coils, or climate control. For example, mid-range slots often handle interior systems, while higher amperage positions are reserved for power windows or blower motors. Cross-checking with a reference chart avoids removing the wrong component during troubleshooting.
Testing and Replacement Tips
Use a multimeter set to continuity mode to verify whether the strip inside the protective link is intact. Pull the component using plastic tweezers stored in the box, then test both terminals. If no continuity is detected, install a replacement with identical rating and recheck the affected system immediately.
Exact Fuse Box Locations Under Hood Cabin and Trunk Areas
Open the hood and check the left side near the firewall to access the main power distribution unit. It sits inside a black plastic housing with a snap-on cover, positioned close to the brake fluid reservoir. This location handles high-load circuits such as cooling fans, engine control modules, and ignition components.
Release the locking tabs carefully to avoid cracking the cover. Inside, you will find a structured layout with rows of protective links and relays arranged by function. A printed reference chart is usually fixed to the inner side of the cover, allowing quick identification of each slot.
Cabin Access Point Near Dashboard
Check the side of the dashboard on the driver side after opening the door. A small removable trim panel conceals an interior electrical block dedicated to lower amperage circuits. This section powers systems like audio, interior lighting, and control switches.
Use a flat plastic tool to pry off the cover without damaging clips. The layout here is more compact, with tightly grouped slots labeled numerically. Keep track of slot positions before removing any component to avoid confusion during reinstallation.
Rear Compartment Power Module

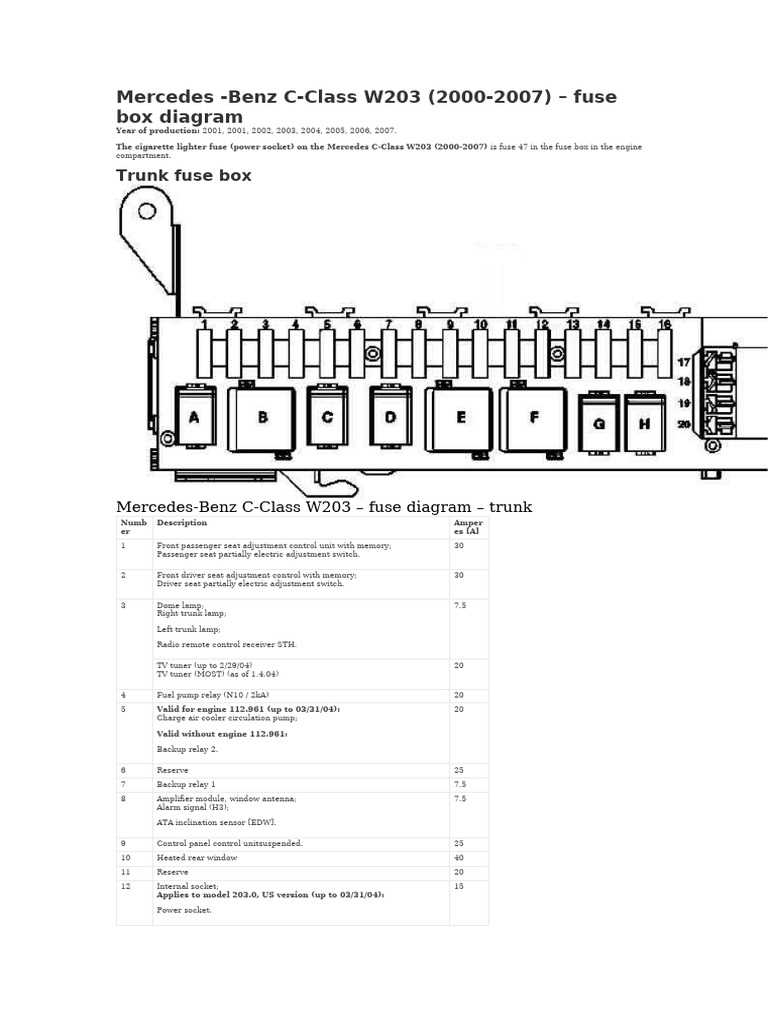

Lift the trunk floor and inspect the right-side compartment behind a protective cover. This area contains another distribution unit tied to rear electrical systems, including tail lights, central locking, and sometimes auxiliary equipment.
Remove the lining panel to reveal the housing. The arrangement differs from front sections, often combining relays and higher-capacity links in a vertical orientation. Ensure the area is dry before handling any components.
Access across all three locations allows full coverage of the vehicle’s electrical network. Checking each section methodically helps isolate faults without unnecessary part removal.
