Use the exact relay allocation chart from the owner’s manual to locate each circuit protection slot and prevent damage to onboard electronics. The compact hatchback in this class uses two primary blocks: one under the dashboard near the steering column and another in the engine bay beside the battery. Each slot is rated in amperes, typically ranging from 7.5A to 40A, and is assigned to systems such as lighting, infotainment, climate control, and ignition.
Interior block positions usually include low-current circuits: 7.5A for dashboard illumination, 10A for audio system and central locking, and 15A for the cigarette lighter or accessory socket. Access requires removing a plastic cover panel; markings on the reverse side indicate slot numbers and their purpose. Misplacing even a single relay can lead to malfunction of multiple subsystems, particularly CAN-controlled features.
Engine compartment layout handles higher loads: 30A–40A slots for radiator fan and ABS pump, 20A for fuel pump, and 15A for ignition coils. The protective box is sealed against moisture; always reseat the lid firmly after inspection. When replacing a burned element, match both amperage and physical type–mini, low-profile, or standard–since incorrect sizing leads to overheating or intermittent faults.
Practical tip: keep a printed electrical layout in the glove box and mark replaced components with a date. This helps track recurring overloads, which often point to wiring insulation wear or failing actuators rather than a simple blown protection element.
Mazda 2 Fuse Diagram: Practical Guide for Owners

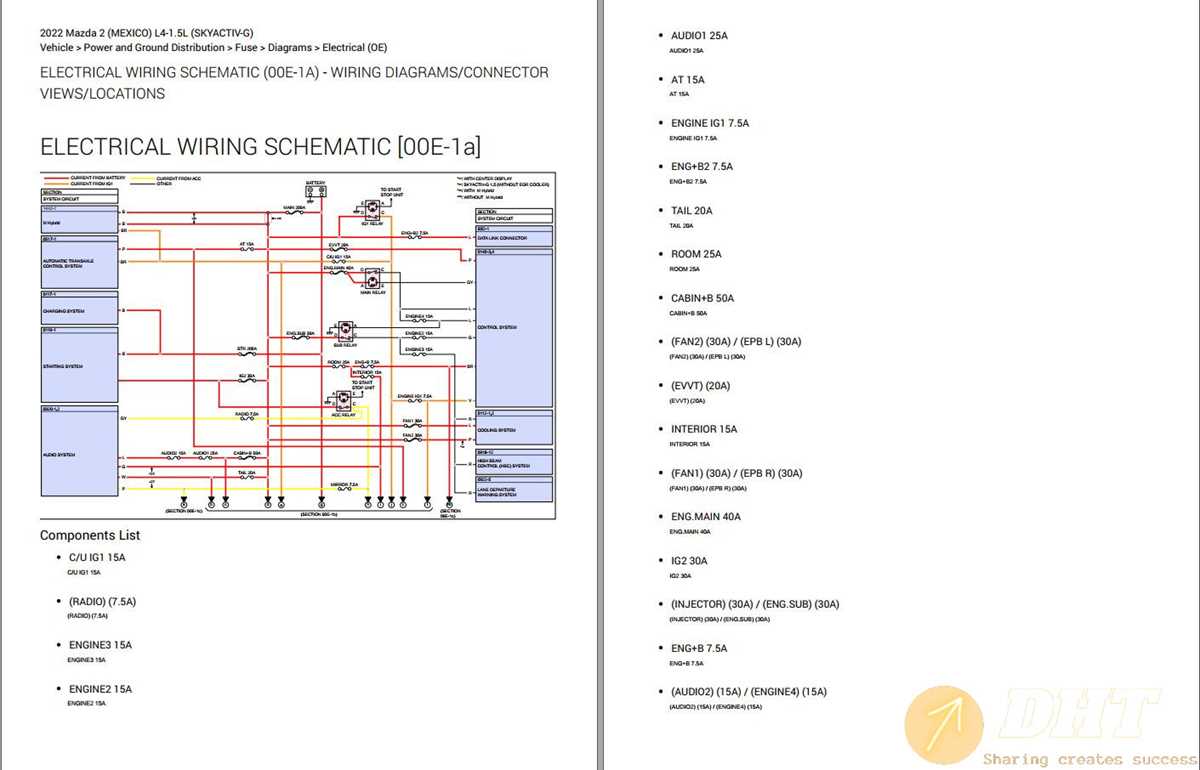

Check the cabin panel first: it sits under the dashboard on the driver’s side, covered by a plastic lid with a printed layout showing circuit positions and ratings. Use this chart to match each slot with its protected system, such as lighting, audio unit, or power windows, and always verify the amperage marking before removing any component.

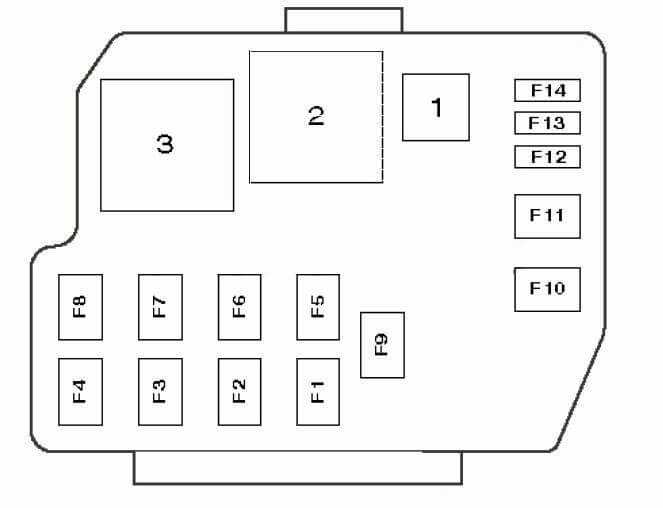

Under the hood, a second block protects high-load systems like the cooling fan, ABS, and main power supply. The layout here differs from the interior panel and includes larger cartridge-style elements. Open the cover and inspect the molded scheme inside; it lists relay positions alongside protective links, which helps identify issues tied to engine electronics or charging faults.
When diagnosing a failure, rely on the labeling codes rather than guessing by position. For example, “ACC” corresponds to accessory power, while “TAIL” links to rear lighting. If a system stops working, trace it directly through the chart instead of checking all slots randomly. This reduces the risk of removing the wrong component and causing additional electrical interruptions.
Replacement requires strict matching of amperage values–typically 7.5A, 10A, 15A, or 20A in the cabin section. Installing a higher-rated piece may lead to wiring damage, while a lower one can fail immediately under normal load. Use a puller tool stored in the panel or a plastic clip to avoid damaging contacts during removal.
If multiple systems fail simultaneously, inspect shared circuits indicated on the scheme. Some lines distribute power to several consumers, such as interior lighting and dashboard illumination. A single burned element in such a branch can disable several features at once, which often leads to confusion without consulting the printed layout.
Common Problem Areas
Frequent issues include cigarette lighter sockets, audio systems, and central locking. These are tied to frequently used circuits and are more likely to experience overload. Moisture intrusion in the engine bay block can also cause corrosion on terminals, especially in older vehicles, leading to intermittent contact rather than complete failure.
Quick Inspection Routine
Turn off ignition, locate the correct panel, compare the slot number with the chart, remove the suspected element, and inspect the metal strip inside. If broken, replace it with the same rating and recheck the system. If it fails again, the fault lies deeper in the wiring or connected device, requiring further electrical testing.
How to Locate and Access the Interior and Engine Bay Fuse Boxes in Mazda 2

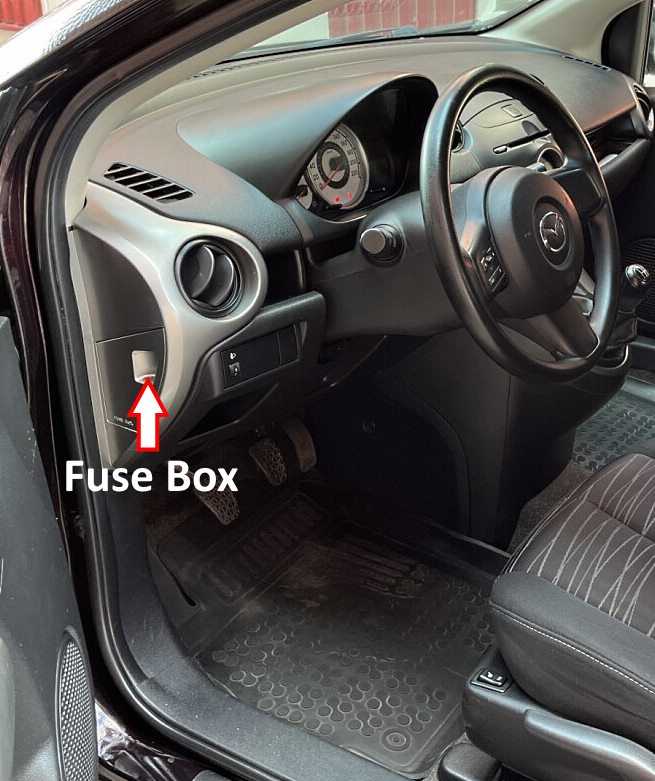

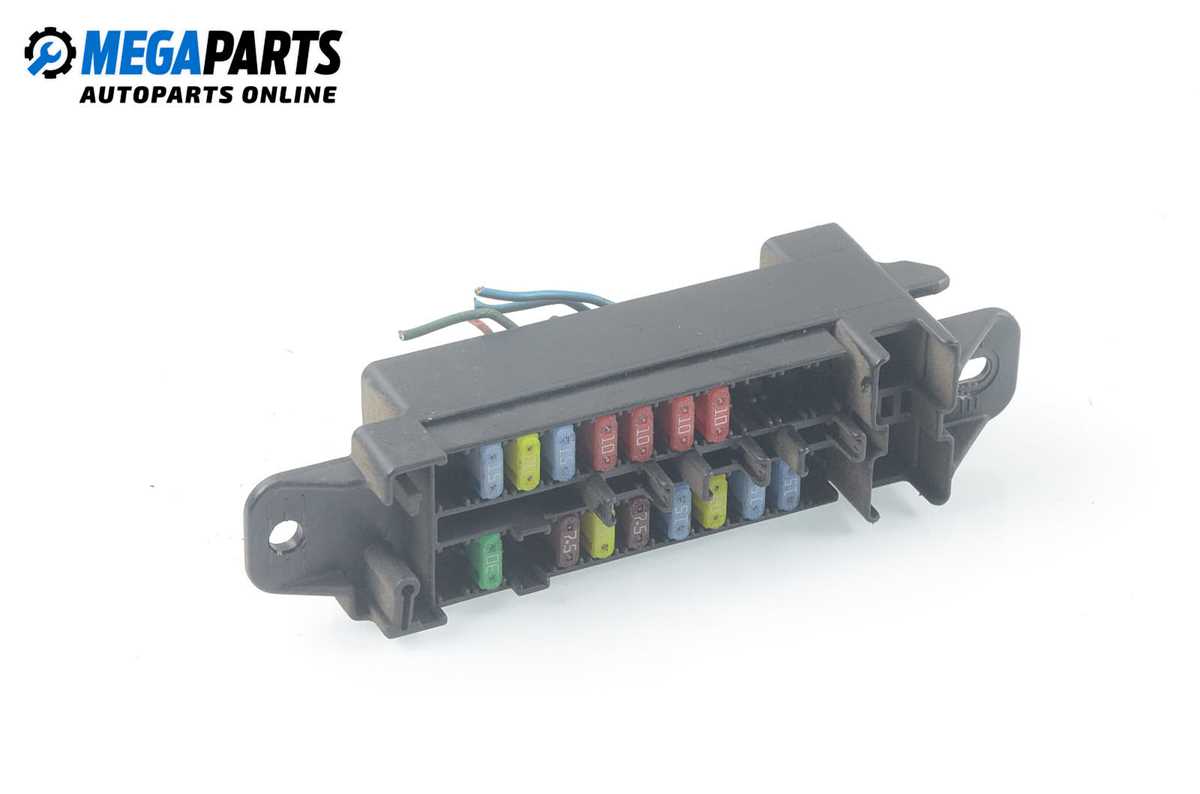

Open the driver’s door and inspect the lower section of the dashboard on the left side to find the cabin electrical panel; it is typically hidden behind a small plastic cover that can be removed by hand without tools. In right-hand-drive versions, this panel shifts to the opposite side. Use a flat trim tool if the cover is tight, but avoid metal objects to prevent scratches. Once removed, the block of circuits is visible, arranged in rows with labeled slots corresponding to lighting, infotainment, and climate systems.
For access under the hood, release the bonnet latch from inside the cabin, then secure the hood with the support rod. The main power distribution box sits near the battery or along the fender wall, enclosed in a rectangular black housing with snap clips. Press the tabs firmly and lift the lid straight up; inside, you’ll find higher-capacity links protecting systems like the starter motor, ABS module, and cooling fan. The inner side of the cover usually includes a molded layout showing slot positions and ratings.
Before touching any electrical component, switch off the ignition and remove the key to avoid short circuits. Pullers for small blade inserts are often clipped inside the engine compartment housing; if missing, use plastic tweezers for safe removal. Match amperage ratings exactly when replacing a blown element–using a higher value risks wiring damage, while a lower one may fail immediately under load.
After completing checks or replacements, refit each cover securely to protect against dust and moisture. Ensure all clips are fully engaged, especially in the engine area where exposure is higher. If repeated failures occur in the same slot, inspect the connected circuit for wiring faults or component overload rather than continuing replacements.
