Check the cabin power panel first if electrical components stop working, as most lighting, audio, and accessory circuits are routed through this interior unit placed near the driver side footwell. Use the cover label or a wiring chart to match each slot with its function, then verify amperage ratings before replacing any blown link.
Locate the engine bay distribution unit for high-load systems such as cooling fans, ABS, and ignition circuits. This unit typically sits close to the battery and contains larger protection elements and relays. Inspect terminals for corrosion and confirm tight connections, since loose contacts can cause intermittent faults that mimic component failure.
Always compare amperage values stamped on each link with the manufacturer specification to avoid overheating or circuit damage. If repeated failures occur in the same position, trace the wiring path tied to that slot and check for shorts, worn insulation, or faulty devices drawing excess current.
Use a multimeter instead of visual inspection alone to confirm continuity across each protective element. A broken strip may not always be visible, especially with hairline cracks. Testing voltage on both sides while the circuit is active provides a reliable diagnosis.
2009 Mazda 3 Fuse Box Diagram with Locations Relay Layout and Circuits
Match each circuit to its assigned slot using the panel legend before replacing any protective link, as interior and engine compartment units serve different systems. The cabin panel typically handles audio, interior lighting, power windows, and dashboard electronics, while the under-hood unit distributes power to cooling fans, ignition components, and ABS. Each position is labeled with amperage ratings such as 10A, 15A, 20A, or 30A, and installing a higher rating can lead to wiring damage. Relays placed рядом with these slots control high-current devices like the fuel pump and radiator fan, switching them on without routing full load through switches.
Use the layout map printed inside the cover to identify relay positions and circuit paths, then verify operation by swapping identical relays from non-critical systems such as horn or fog lights for testing purposes. Pay attention to grouped circuits sharing a single power source, since a fault in one branch may affect multiple components, including dashboard indicators and accessory ports.
Where Fuse Boxes Are Located in 2009 Mazda 3 and How to Open Them Safely
Access the interior power panel from the driver side footwell by removing the small plastic cover positioned below the steering column on the left. Pull the cover outward using steady pressure at the notch; avoid prying with metal tools to prevent cracking the trim.

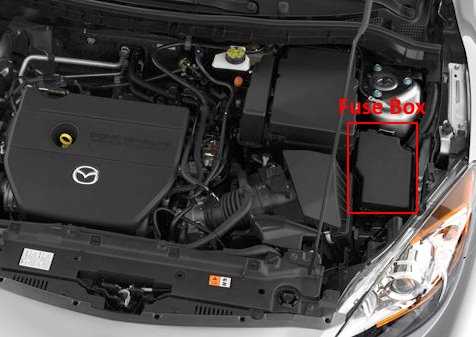

Locate the engine compartment unit near the battery, typically secured with a snap-on lid. Press the locking tabs on both sides and lift upward; if resistance is high, check for dirt buildup around the edges before applying more force.
Disconnect the negative battery terminal before handling high-current circuits under the hood. This prevents accidental short circuits while inspecting larger links and relay modules.
Use the following steps to open each panel safely:
- Turn off ignition and remove the key
- Allow electrical systems to power down for at least 60 seconds
- Wear insulated gloves when working near battery connections
- Keep a plastic puller tool nearby for removing small components
Inspect the inside of the cover for a printed layout guide, which shows slot numbering and relay positions. Keep the cover clean and reinstall it firmly after inspection to maintain protection from moisture and dust.
Ensure all clips are fully engaged when closing, as loose covers can lead to corrosion or intermittent contact issues, especially in the engine bay where temperature and vibration are higher.
