Check the panel legend located under the dashboard on the driver’s side first–this placement gives the quickest access to the exact circuit allocation and prevents misidentification of protective elements during replacement.
The interior block typically contains 10–15 slots, each linked to systems such as cabin lighting, radio memory, ignition control, and dashboard indicators. For example, the slot rated at 15A often supports the cigarette lighter and accessory socket, while a 10A position is commonly assigned to instrument illumination. Misplacing even one component can disable multiple subsystems simultaneously.
Under the hood, a separate power distribution box houses higher-capacity inserts ranging from 30A to 80A. These protect critical assemblies like the cooling fan, anti-lock braking system, and main charging circuit. Always compare amperage markings stamped on the plastic housing with the installed piece; discrepancies may lead to overheating or intermittent failures.
Color coding plays a key role: blue usually corresponds to 15A, red to 10A, and green to 30A. Matching these colors with their designated slots reduces diagnostic time when tracing electrical faults such as non-functioning headlights or a dead starter relay.
For precise identification, rely on the stamped numbering sequence along the panel edge. Cross-referencing these numbers with a verified wiring chart ensures each circuit is correctly mapped, especially when dealing with aftermarket modifications or previous repair work.
1995 Mazda Fuse Diagram: Practical Guide for Identification and Troubleshooting
Check the interior electrical panel first: locate the small rectangular block under the dashboard on the driver’s side and match each slot with its labeled circuit, such as headlights (15A), radio (10A), or interior lights (10A), using the cover legend or service manual.

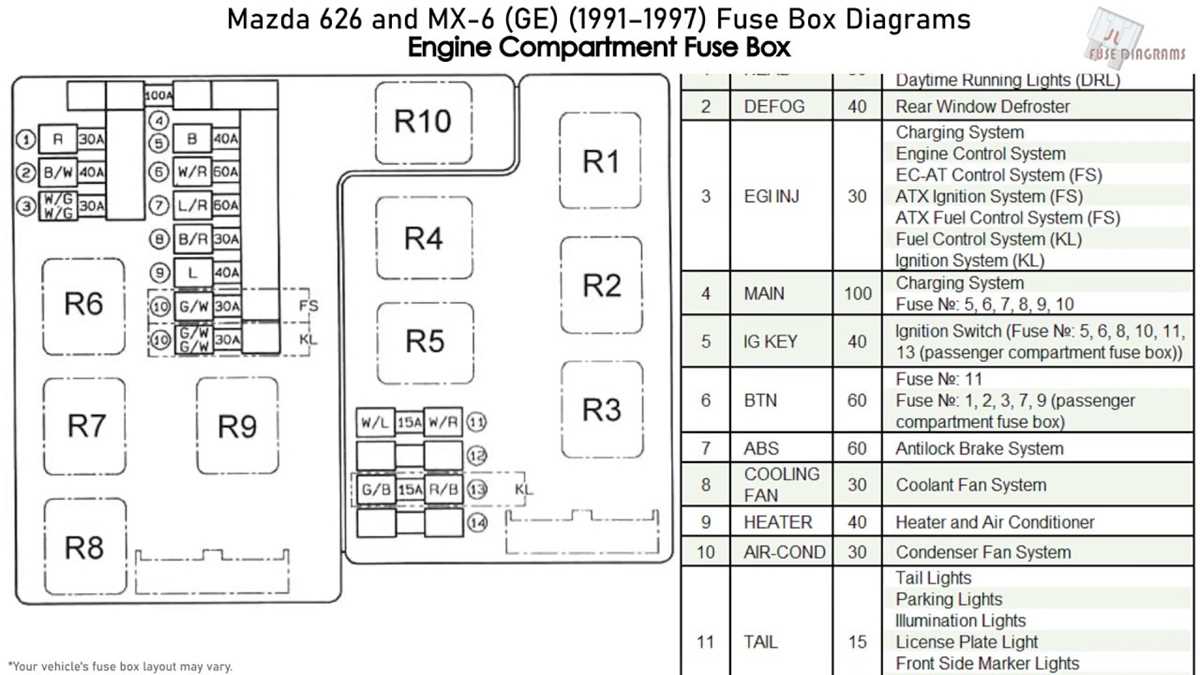

For engine bay circuits, inspect the power distribution box near the battery; higher-amperage inserts (30A–80A) control systems like the cooling fan, ignition relay, and main power supply, so any failure here can disable multiple components at once.
Use a multimeter set to continuity mode rather than relying on visual inspection alone; a metal strip may appear intact but fail under load, so test both terminals while the part remains seated to confirm current flow.
Color coding helps speed up identification: red typically marks 10A, blue 15A, yellow 20A, and green 30A; mismatching ratings risks wire overheating or recurring failure of the same circuit.
If a replacement burns out immediately, trace the circuit path–common fault points include worn insulation near door hinges, aftermarket stereo wiring, or moisture intrusion in tail light assemblies.
Keep a small assortment of spare inserts in the glove box and always replace with identical amperage; inserting a higher-rated piece may temporarily restore function but can damage switches, relays, or wiring harnesses.
Label unclear slots manually after verification: note each circuit’s function on the inside of the panel cover using a fine marker, which reduces diagnostic time during roadside repairs or future maintenance.
How to Locate and Interpret the Fuse Box Layout in a 1995 Mazda Model

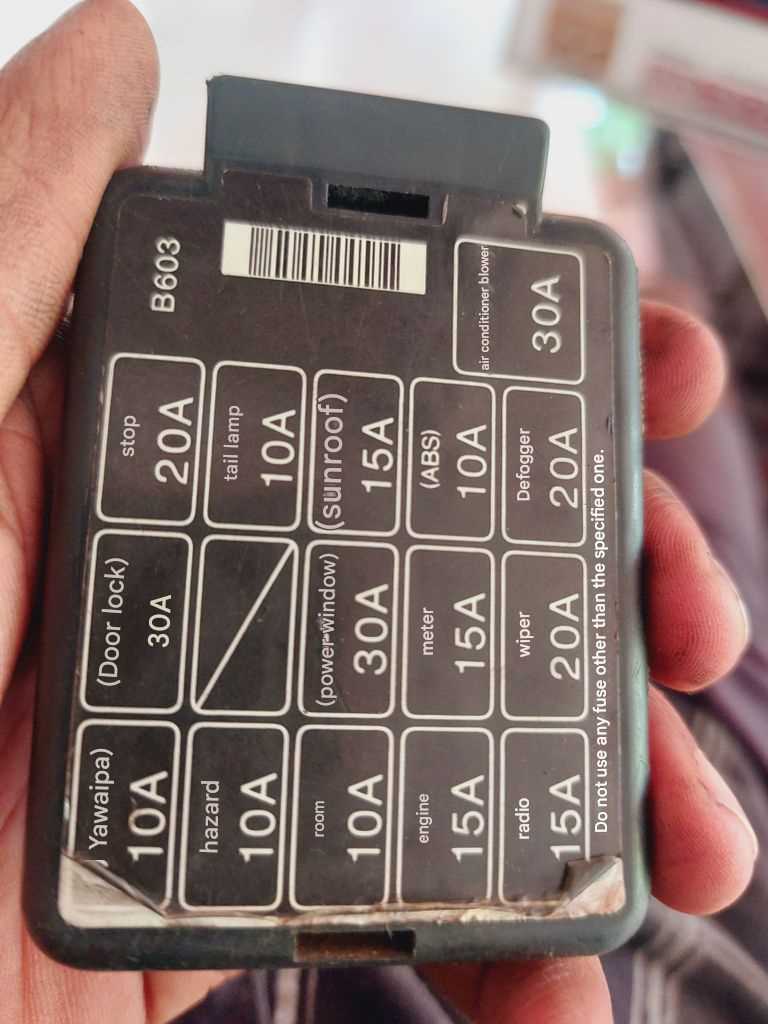

Open the driver-side door and check the lower dash panel near the steering column–this is where the primary electrical panel is typically installed. A second unit is often mounted in the engine bay, close to the battery housing. Remove the plastic cover by pressing the side clips; on its inner surface you will usually find a printed map showing circuit assignments and amperage ratings.
The legend inside the cover uses abbreviations tied to vehicle systems. Focus on matching each label to a function rather than guessing. Common markings include:
- IGN – ignition circuit
- TAIL – rear lighting
- RADIO – audio system
- ECU – engine control module
- WIPER – windshield wipers
Each slot contains a colored insert that reflects its current rating. Use the color code to confirm correct replacement:
- Red – 10A
- Blue – 15A
- Yellow – 20A
- Green – 30A
Installing a higher-rated element risks wiring damage, while a lower-rated one may fail repeatedly under normal load.
Reading the Layout Correctly
The arrangement is not random; rows correspond to grouped systems. Upper rows usually handle cabin electronics, while lower rows or a separate engine compartment panel handle high-load components like cooling fans or ABS. The orientation of the printed map matches the physical layout–hold the cover in the same direction as installed to avoid misreading positions.
If the printed guide is missing or faded, refer to stamped identifiers near each slot. These tiny codes (like “H/L” for headlights or “DEF” for defroster) are molded into the plastic base. Use a flashlight to inspect them clearly and cross-check with the vehicle manual if available.
Troubleshooting Using the Panel Map
When a system fails, isolate the related circuit using the legend and inspect the corresponding element. A broken metal strip inside indicates failure. Replace only after verifying the cause–short circuits or faulty components can trigger repeated outages. Keep spare inserts of multiple ratings in the glove compartment for quick roadside fixes.
