Check the interior power distribution panel on the driver’s side under the dashboard before inspecting the engine compartment unit; most lighting and accessory faults originate from this cabin-mounted block. Use a test light or multimeter to verify voltage at each slot rather than relying on visual inspection alone, since a blown strip is not always obvious.
The under-hood power center sits near the battery and contains high-amperage links for systems like the starter relay, cooling fan, and ABS module. Each cavity is labeled with a number that corresponds to a specific circuit; for example, a 40A link typically protects the blower motor, while a 20A position may serve the fuel pump. Match amperage ratings precisely–installing a higher value risks wiring damage.
Interior slots usually range from 5A to 25A and control radio, turn signals, instrument cluster, and interior lighting. Pull the panel cover to access the printed layout guide, then cross-check slot numbers with component behavior. If multiple systems fail at once, inspect shared grounds and relays adjacent to the panel, as power loss may not originate from the protective element itself.
2000 Jeep Wrangler Fuse Box Diagram with Panel Layout and Circuit Details
Match each slot number with its assigned circuit using the printed chart on the cover; for example, position 17 typically feeds the radio and interior lighting, while slot 9 handles the turn signal system. Always verify amperage markings stamped above each cavity before replacing any protective link.
Interior panel layout and circuit mapping
The cabin-mounted block under the dashboard contains low to mid-range amperage links. Key assignments include:
- 5A–10A: instrument cluster, warning indicators
- 15A: audio unit, cigarette lighter
- 20A: wiper motor, washer pump
- 25A: power windows and door locks
Engine compartment power distribution details
The under-hood module near the battery carries high-load circuits. Common positions include:
- 30A–40A: blower motor and HVAC system
- 40A–50A: cooling fan relay feed
- 20A: fuel pump relay supply
- 60A main link: feeds interior distribution panel
If a system fails, test both sides of the slot with a multimeter while the ignition is in the correct position; voltage on only one side indicates a broken internal strip. For repeated failures, inspect wiring harnesses near the battery tray and firewall where insulation wear often causes short circuits.
Exact locations of interior and engine compartment fuse panels in 2000 Jeep Wrangler

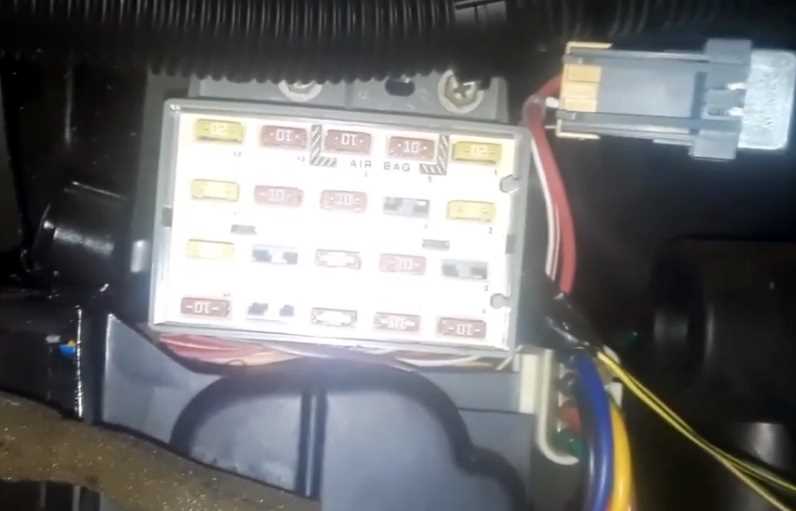

Access the cabin-mounted power block by opening the driver-side door and removing the small plastic cover at the lower edge of the dashboard; it sits directly left of the steering column and slightly above the footwell. Use a flat trim tool to release the cover clips without breaking them.
Interior panel position and access details
The in-cabin unit is fixed to a metal bracket behind the dash trim, facing outward for quick reach. Clearance is tight, so tilt your headlamp downward to view slot numbers clearly. This location keeps low-amperage circuits close to switches and control modules, reducing wire length and voltage drop. Expect limited space for pulling components, so needle-nose pliers help when extracting small elements.
Engine compartment panel placement

The under-hood distribution center is mounted on the passenger-side fender well, adjacent to the battery. A rectangular plastic lid with locking tabs protects it from moisture and debris. Press both side tabs firmly to lift the cover; avoid prying from one side only, as this can crack the housing.
This external unit handles high-load systems and connects directly to the battery via thick gauge cables. Positioning near the power source minimizes resistance and heat buildup. Check the underside of the lid for a printed reference chart that aligns each cavity with its assigned circuit.
When locating both panels, confirm grounding points nearby: the interior assembly grounds behind the kick panel, while the engine compartment unit uses a chassis ground near the battery tray. Poor grounding can mimic a blown element, so inspect these points before replacing any component.
