Check the interior power distribution area near the driver side first and match each slot number with its assigned circuit to avoid incorrect replacement. This helps prevent damage to wiring and connected systems.
The cabin-mounted electrical block contains multiple rows of blade-style elements rated from 5A to 30A. Lower ratings supply control modules and sensors, while higher values handle components such as power windows, blower motor, and seat adjustment systems.
Use the printed legend on the cover or service chart to identify each position. If markings are worn, follow wire color and thickness as a guide. Thicker conductors typically indicate higher current demand, while thin wires connect to signal circuits and electronics.
Inspect each element visually before testing. A broken internal strip or dark discoloration indicates failure. Replace only with the same rating and type to maintain circuit protection and avoid overheating.
Keep a puller tool available to remove components without damaging contacts, and secure the cover tightly after service to protect the electrical assembly from dust and moisture.
2000 Jeep Grand Cherokee fuse panel diagram with circuit details
Match each numbered slot with its circuit description on the cover chart before removing any element, focusing on systems like ignition, lighting, and HVAC to avoid disconnecting the wrong line.
The interior distribution unit groups circuits by function, with ratings typically ranging from 5A to 30A. Low-amperage positions handle modules such as airbag control and radio memory, while higher ratings support power seats, window motors, and blower operation.
Each cavity number corresponds to a labeled function, not the amperage value. The rating is printed on top of each blade component and often indicated by color coding, allowing quick visual identification during inspection.
Check internal metal strips for breaks, discoloration, or melted plastic. These signs indicate overload or short circuits within the connected system. Use a multimeter to confirm continuity when visual inspection is unclear.
After replacing a damaged element, press it firmly into place and secure the cover to protect the electrical assembly from moisture and debris that can lead to corrosion or intermittent faults.
How to read 2000 Jeep Grand Cherokee fuse panel diagram and label codes

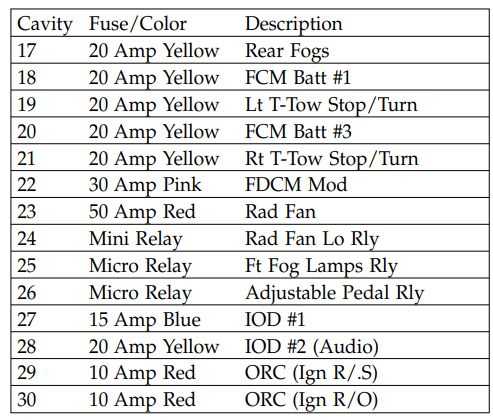

Check the legend printed on the cover first, as it lists slot numbers, amperage ratings, and circuit names; match each position with the corresponding cavity to avoid pulling the wrong protective element.
Each symbol uses short codes such as IGN for ignition, ACC for accessories, and PCM for powertrain control; these abbreviations identify which system receives current through a specific slot and help trace faults quickly.
Numbers typically follow a grid layout:
- Top row: low-current circuits like radio or cabin lighting
- Middle section: control modules and relays
- Lower section: high-load systems such as blower motor or rear defrost
Amperage values marked in colors indicate load limits; for example, 10A (red) protects small electronics, while 30A (green) supports motors or heating elements, so always replace with the same rating.
Use a test light or multimeter to confirm power flow at both terminals of each slot, which shows whether current passes through or stops due to a blown link.
Connector references near the chart often point to harness locations; follow these notes to track wiring paths between the distribution unit and components like headlights, fuel pump, or control modules.
Relays shown beside the grid operate switches for high-demand circuits; identify them by labels such as starter relay or cooling fan relay, then verify clicking action when power is applied.
Always compare the printed layout with the actual configuration under the dash or in the engine compartment, since trim level and equipment packages may shift slot assignments slightly.
