Locate the interior electrical block under the dashboard on the driver side and match each slot number with its assigned circuit before removing any component. Use the label on the cover or service manual to identify lighting, ignition, and accessory lines tied to each position.
Each protective element has a specific amperage value, typically ranging from 10A for small electronics to 30A for higher-load systems. Always replace with the same rating to prevent wiring damage or repeated failures caused by overload conditions.
Common problem areas include blown links for radio, interior lights, and turn signals, often caused by worn wiring or short circuits. Inspect connectors and harnesses near the affected system instead of swapping parts repeatedly.
Access requires removing a small cover or trim piece; pull it carefully to avoid breaking clips. Keep spare components and a puller tool in the vehicle to handle roadside electrical issues quickly without damaging the panel.

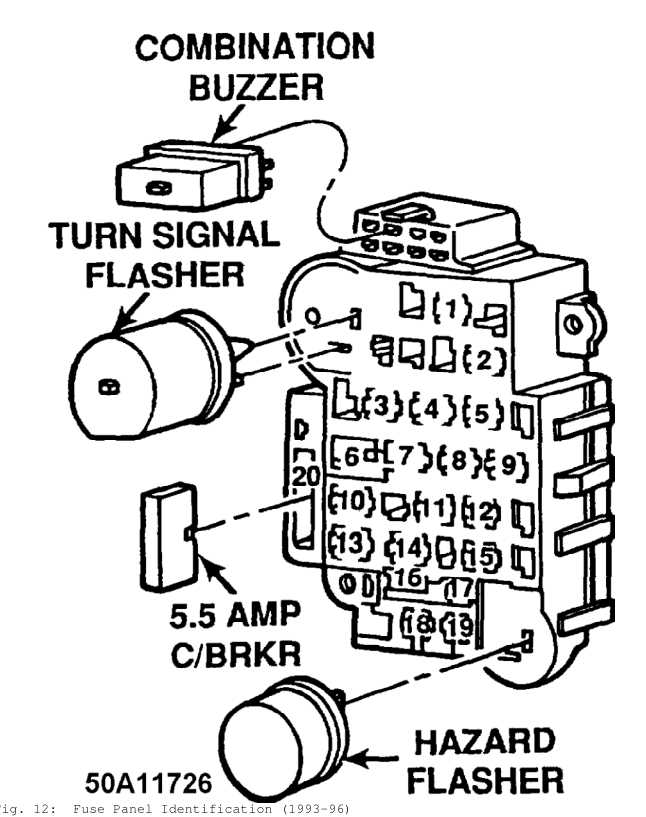

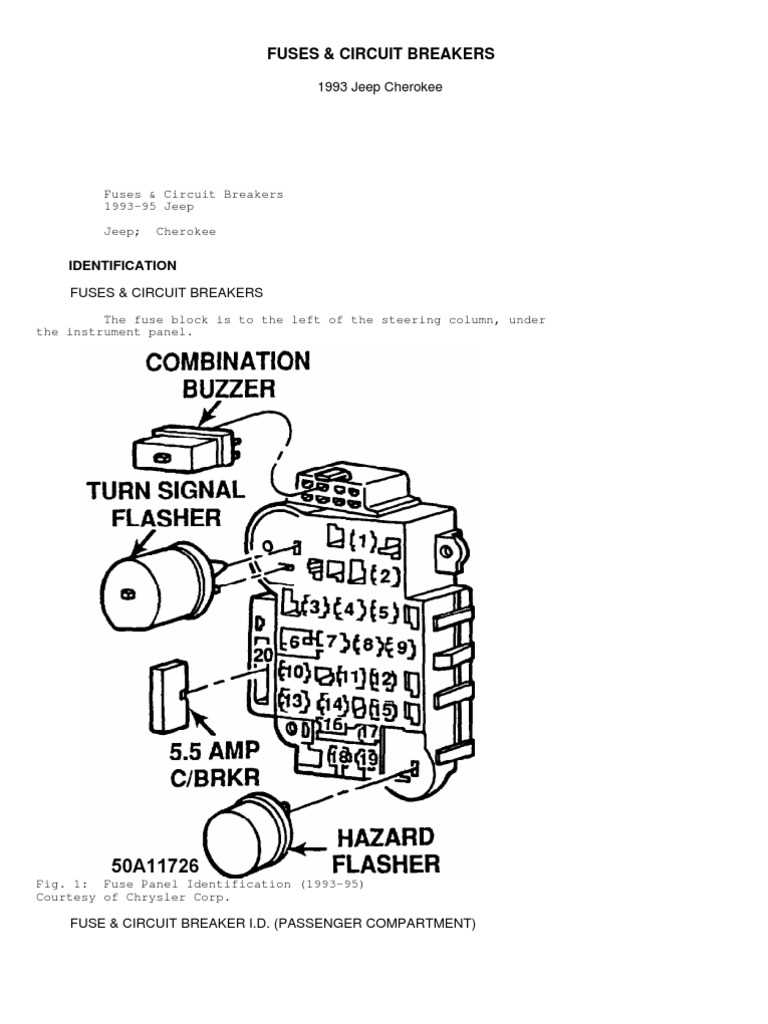

1994 Jeep Cherokee Sport Fuse Panel Diagram With Circuit and Relay Details
Match each slot number with its assigned circuit before removing any protective element, using the cover legend to identify systems like ignition, wipers, and interior lighting.
The interior electrical block groups circuits by function, where lower amperage positions handle dashboard electronics while higher ratings support blower motor and power outlets. Check amperage markings printed above each slot to avoid installing an incorrect replacement.
Relay units are positioned near high-load circuits and control components such as starter operation and cooling systems; swap with an identical unit to test functionality if a system fails intermittently.
Typical circuit allocation includes separate lines for headlights, brake lights, turn signals, and radio memory, each protected by a dedicated link designed to interrupt current flow during overload.
Inspect metal contacts inside each slot for discoloration or looseness, as heat buildup often signals resistance issues that can lead to repeated failures.
Blown elements usually show a broken internal strip or darkened housing; replace only after identifying the root cause such as shorted wiring or a faulty component drawing excess current.
Use a puller tool to remove components safely without damaging surrounding connectors or bending terminals.
After replacement, recheck system operation and ensure the cover is secured firmly to protect the electrical center from dust and accidental contact.
Exact location of interior fuse panel and access behind dash trim
Locate the interior electrical block on the driver side beneath the dashboard, positioned just left of the steering column and slightly above the footwell area; remove the protective trim by pulling it outward at the edges until the retaining clips release.
Use steady pressure when detaching the cover to avoid cracking plastic mounts, then access the internal slots arranged in rows with labeled positions for lighting, ignition, and accessory circuits; keep the cover nearby to reference markings and ensure proper reinstallation after inspection or replacement.
