Locate the main power distribution unit under the hood on the driver’s side, adjacent to the battery. Each connector is labeled with a unique identifier corresponding to specific circuits, including lighting, ignition, and auxiliary systems. Use the etched markings on the cover to match each slot with its function for precise troubleshooting.
For interior access, check the cabin module behind the glove compartment. It houses miniature relays and fuses controlling components such as the climate control system, audio unit, and safety modules. Cross-reference the printed index inside the lid to avoid misplacement during inspection or replacement.
Always verify amperage ratings before inserting replacements. Substituting a lower-rated element can cause failure in critical circuits, while a higher-rated component may bypass protective limits, risking damage to wiring and connected electronics. Maintain a small magnetic tray to keep removed units organized.
Labeling each connector during removal ensures correct reinstallation. Note any discoloration, corrosion, or loose terminals. Periodic checks of all slots can prevent unexpected shutdowns of essential systems, especially for models over a decade old.

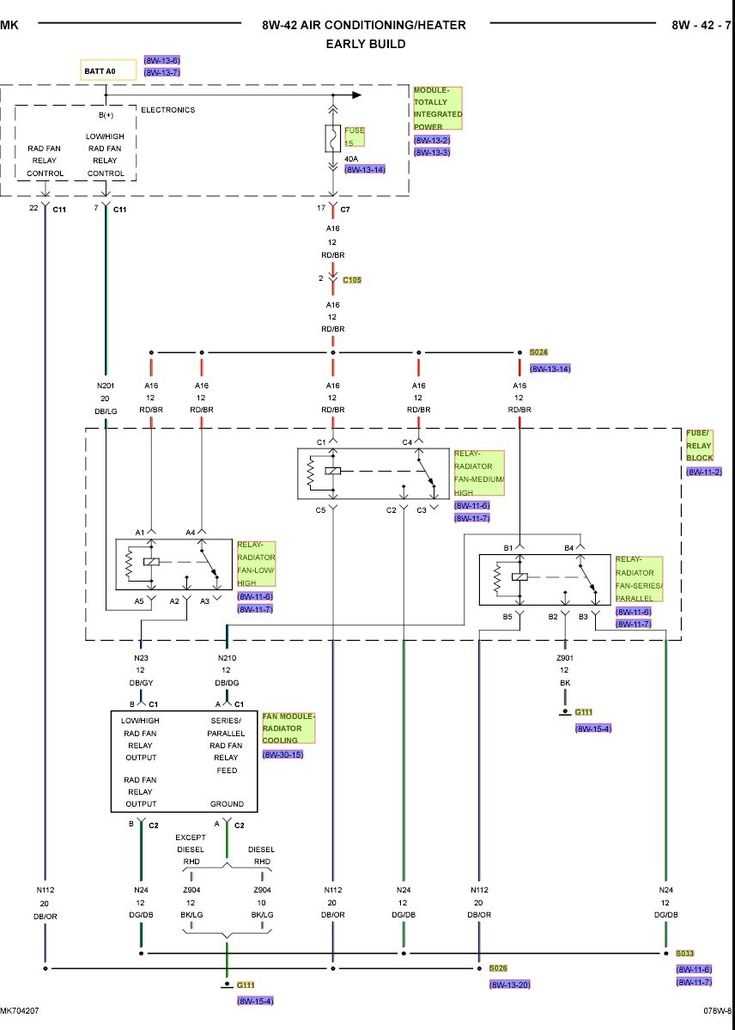

Refer to manufacturer schematics when diagnosing intermittent issues. Understanding the routing of each wire and the sequence of energized circuits allows targeted testing with a multimeter, reducing trial-and-error replacements and preserving the integrity of the electrical system.
14 Jeep Patriot Fuse Box Diagram

Locate the main electrical access panel beneath the dashboard on the driver’s side. Each slot is labeled for specific circuits, including headlights, horn, air conditioning, and auxiliary power outlets. Use a test light to confirm current flow before replacing any module.
The engine compartment also houses a secondary distribution unit. This section manages high-current components like the cooling fan and ABS system. Check the printed guide inside the cover for amperage ratings and slot assignments.
Slots are color-coded according to capacity: red for 10A, blue for 15A, yellow for 20A, and green for 30A. Matching the original amperage prevents overheating or blown connections. Never substitute with a higher rating than indicated.
If multiple circuits fail simultaneously, inspect the ground connections attached to the chassis near both panels. Corrosion or loose bolts can interrupt power even when individual modules appear intact.
Replacing and Testing Modules

Remove a defective component with a pair of insulated pliers. Insert the new element fully until it clicks. After installation, test each affected system sequentially to confirm restoration. Avoid using metal tools on live circuits to prevent shorting.
For aftermarket accessories, identify an unused slot rated for the load. Avoid tapping into the ignition or lighting circuits, which can trigger unintended faults. A separate relay may be required for high-demand devices.
Inspect the protective cover for cracks or melted areas. Moisture ingress accelerates oxidation, leading to intermittent failures. Silicone spray on the contacts can improve conductivity without compromising the fit.
Keep a reference chart in the glove compartment. Annotate any modifications for future troubleshooting. This reduces guesswork and speeds up diagnostics during roadside repairs or routine maintenance.
Locating the Fuse Compartment in 2014 Jeep Patriot

Access the main electrical compartment beneath the dashboard on the driver’s side by opening the lower panel near the steering column. Slide the cover off carefully; clips at the edges secure it and can break if forced. The identification label inside lists circuits for headlights, horn, and auxiliary outlets.

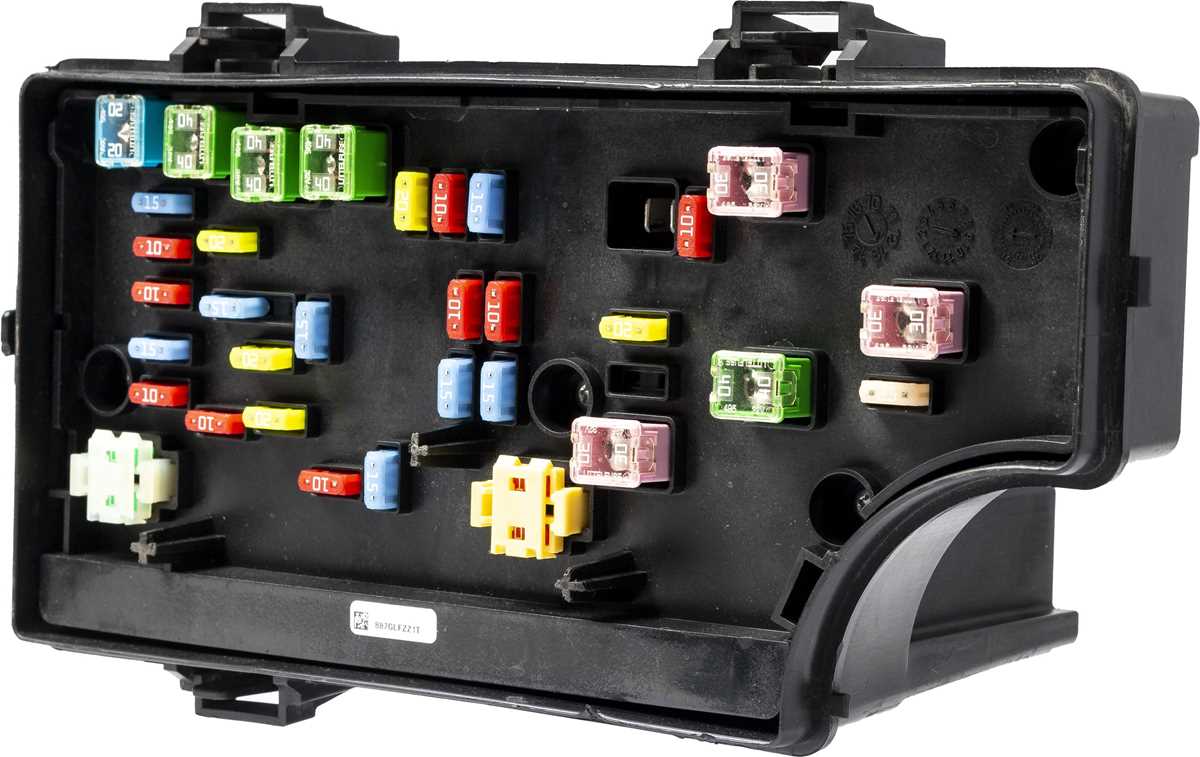

The secondary power distribution unit is positioned under the hood, close to the battery. Release the latch on the black plastic enclosure and lift the lid. Inside, larger switches for high-current devices such as the radiator fan, ABS, and ignition system are arranged in rows and labeled with both numbers and abbreviations.
For troubleshooting, always refer to the printed guide attached inside each compartment. It provides the amperage and location for each component, enabling quick replacement without guesswork. Keep a flashlight handy; visibility can be limited in the confined spaces around the footwell or engine bay.
