Check the panel located under the dashboard on the driver side and use the printed layout on the cover to match each slot with its assigned circuit. Most electrical faults such as non-working dashboard lights, radio, or power accessories are caused by a blown protective link rated between 5A and 20A.
This compact sedan uses a single cabin-mounted distribution panel that handles lighting, gauges, and accessory circuits. Each position is numbered and paired with a specific function, allowing quick identification without removing multiple components.
Color-coded ratings simplify replacement: lower values protect small electronics, while higher values support motors and switches. Installing a part with incorrect amperage can damage wiring or lead to repeated failure, so matching the original rating is required.
Disconnect the negative battery terminal before inspection to avoid short circuits. A multimeter set to continuity mode provides accurate results when checking each element, especially when visual signs of damage are not obvious.

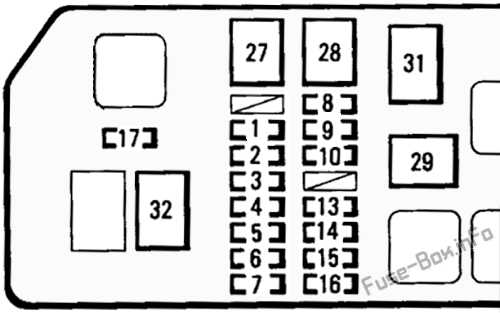

1995 Corolla interior fuse box diagram and circuit identification guide
Match each numbered slot under the dashboard panel with the label printed on the cover to identify the circuit immediately. Numbers correspond to specific systems such as lighting, radio, and dashboard instruments, which simplifies troubleshooting.
The cabin-mounted electrical panel contains blade-type elements rated from 5A to 20A. Lower ratings handle small electronics, while higher ones support motors like wipers and heater fan.
Slots are arranged in rows, usually grouped by function rather than strict numerical order. This means adjacent positions often control related systems, making it easier to trace faults affecting multiple components.
Inspect each protective link by removing it and checking the metal strip inside. Breaks, dark spots, or melted sections indicate failure, though a multimeter test is more reliable for confirmation.
Typical circuit assignments include:
- 5A–10A – dashboard lights, control switches
- 10A–15A – radio, interior accessories
- 15A–20A – wipers, heater motor
Always replace with the same amperage value. Installing a higher rating increases risk of wiring damage, while a lower rating may fail under normal operation.
Disconnect the battery before handling components to prevent accidental short circuits. Use plastic pullers or insulated tools to avoid contact with metal terminals.
If repeated failure occurs in one position, inspect connected wiring and devices. Persistent issues often indicate a short circuit or excessive current draw rather than a single damaged element.

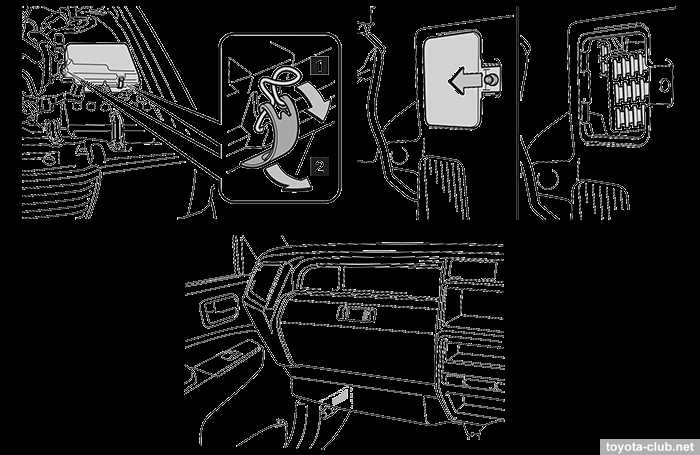

Where to find interior fuse box in 1995 Corolla under dashboard
Look under the driver side dashboard near the left knee area and locate a small rectangular plastic cover attached to the lower trim panel. This cover hides the main cabin electrical distribution unit and can be removed by pulling it outward without tools.
The panel sits slightly above the footwell and is oriented horizontally, with rows of blade-type elements visible once the cover is removed. A printed layout on the back of the cover shows slot numbers and circuit assignments, allowing quick identification of lighting, radio, and accessory circuits without dismantling surrounding components.
