Use the cabin and engine compartment power distribution layouts to quickly identify the correct protective element and avoid unnecessary disassembly. The interior panel is mounted beneath the dashboard on the driver’s side, while the under-hood unit sits near the battery. Check the label on the cover–it lists circuit assignments such as ignition coils, fuel pump, ABS module, and HVAC system.
For precise identification, match amperage ratings stamped on each component (for example, 10A, 15A, 20A) with the legend printed on the lid or in the service manual. Low-current circuits typically protect lighting, infotainment, and sensors, whereas higher values correspond to cooling fans, window motors, and power seats. Pullers are often clipped inside the cover to remove elements without damaging contacts.

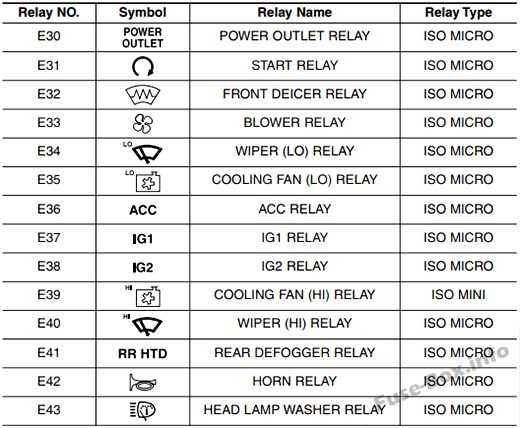

In the engine bay unit, relays are grouped separately from protective links. Square modules control high-load systems like starter engagement, radiator fans, and air conditioning clutch. When diagnosing faults, swap identical relays with a known working one to confirm failure before replacement.
Inside the cabin distribution panel, circuits are arranged in rows with numbering aligned left to right. Use a multimeter to verify continuity if visual inspection is inconclusive. A blown element will show a broken internal strip, but subtle faults require testing under load conditions.
Always disconnect the negative battery terminal before servicing these panels to prevent short circuits. Reinstall components firmly to ensure stable contact, as loose seating may cause intermittent electrical issues that mimic larger system failures.
Electrical Panel Layout for 2012 Crossover SUV

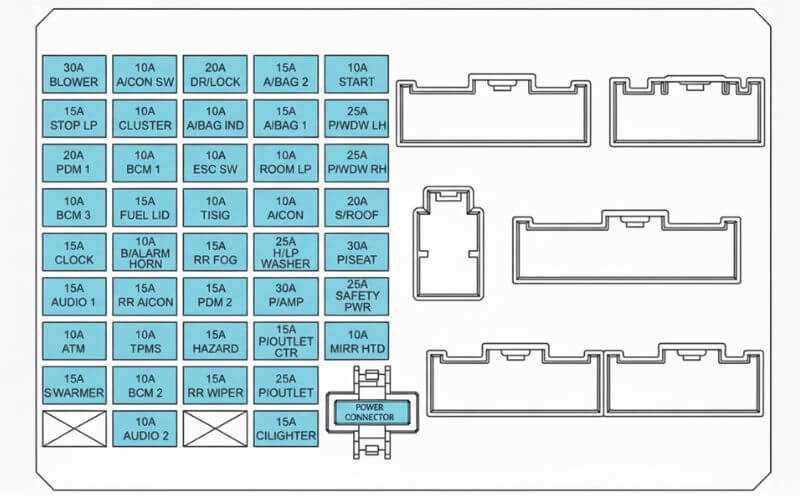

Check the cabin-mounted electrical panel under the dashboard on the driver’s side: remove the cover and use the legend printed on its inner surface to match each slot with its circuit. For quick orientation, focus on high-load circuits first–blower motor, power windows, and audio system–since they are grouped in the upper rows. In the engine compartment, the power distribution unit sits near the battery; it contains high-amperage links for ABS, cooling fans, and ignition. Always verify amperage ratings stamped on each insert before replacement to avoid damage. If a circuit repeatedly fails, inspect wiring and connected components instead of swapping inserts repeatedly.
- Cabin panel: interior lighting, infotainment, mirrors, central locking
- Engine bay unit: starter relay, radiator fan, fuel pump, ABS module
- Typical ratings: 10A (electronics), 15A (accessories), 20–30A (motors)
- Relays: marked separately; identical shapes may differ internally–check markings
- Spare inserts: usually clipped inside the cover for quick access
- Switch ignition off before inspection
- Use puller tool to remove the insert without bending contacts
- Inspect metal strip inside–break indicates failure
- Replace only with identical rating
- Reinstall cover securely to prevent moisture entry
Exact fuse box locations in the 2012 Hyundai Santa Fe and how to access each safely
Open the driver-side door and locate the interior electrical panel behind the lower dashboard trim, just left of the steering column; remove the plastic cover by pulling from the notch at the bottom edge, using steady pressure to avoid cracking the clips. A second power distribution unit sits under the hood near the battery on the driver’s side–release the latch tabs on the protective lid and lift it straight up. Before touching any circuit element, switch off the ignition, remove the key, and wait at least 60 seconds to let residual current dissipate.
For safe access under the hood, use insulated gloves and avoid contact with exposed terminals; moisture or metal tools can trigger a short. Inside the cabin, keep a small trim tool or flat plastic lever to prevent damage when removing the cover. Each compartment has a molded guide on the underside of the lid showing circuit positions–align this with the slots to identify the correct component without trial and error. When reinstalling covers, press evenly along the edges until all clips engage; a loose panel can lead to dust ingress and intermittent electrical faults.
