Locate both power distribution panels and verify each switching unit and protective element against its assigned circuit before troubleshooting. Matching position and rating prevents wiring overload and avoids damage to control modules.
The interior panel is typically positioned beneath the dashboard near the driver side, handling low-current systems such as infotainment, dashboard cluster, and cabin lighting. The engine compartment panel supports high-load circuits, including cooling fans, ignition supply, and ABS control.
Switching units control functions like fuel pump activation, starter engagement, and fan operation. Each one is triggered by a low-current signal and closes a higher-current circuit. Misplacing or swapping them can lead to no-start conditions or continuous operation of components.
Ratings for protective elements usually range from 7.5A to 40A depending on system demand. Always replace with identical values to maintain proper circuit protection and avoid overheating or intermittent failures.
Use a multimeter to check voltage and continuity across both sides of each slot and across switching terminals. A click sound without power output indicates internal contact wear, requiring replacement of the switching unit rather than further wiring inspection.
Relay and Fuse Box Diagram for 2016 Honda HRV Layout Guide
Verify each switching module and protective link by matching its slot position with the assigned circuit before performing any electrical repair. Incorrect placement can interrupt multiple systems including ignition, lighting, and control units.
The interior distribution panel handles low-current electronics such as infotainment, dashboard indicators, and accessory ports. The engine compartment unit supports high-load circuits like radiator fan, braking system electronics, and starter control.
Switching modules operate by receiving a low-current signal and closing a higher-current path. This allows systems like fuel delivery or cooling fans to activate without routing full current through dashboard controls. A failed unit may click but not pass current, indicating worn internal contacts.
Protective elements are rated from 7.5A to 40A depending on circuit demand. Lower ratings are assigned to sensors and control modules, while higher values protect motors and heating elements. Installing a higher rating than specified increases the risk of wiring damage.
Slot numbering is usually printed on the panel housing or cover. If markings are unclear, trace wiring colors and connector grouping to identify each circuit manually and label positions for future reference.
Common circuit grouping inside the panel
Lighting systems are grouped together, while ignition-related lines and engine control circuits are placed separately to reduce interference. Auxiliary systems such as power outlets and seat heaters are often located along the outer rows.
Accurate fault detection steps
Measure voltage on both sides of each slot under load conditions. A drop across the protective link signals failure, while no voltage on either side suggests upstream issues such as wiring breaks or control module faults.
Inspect contacts for corrosion or heat discoloration. Cleaning terminals and ensuring tight connections restores stable current flow and prevents intermittent electrical issues.
Exact fuse box and relay locations in cabin and engine compartment
Check the driver side lower dashboard area first; the interior power distribution panel is mounted behind a removable trim cover near the steering column. This location provides access to control circuits such as infotainment, instrument cluster, and interior lighting.

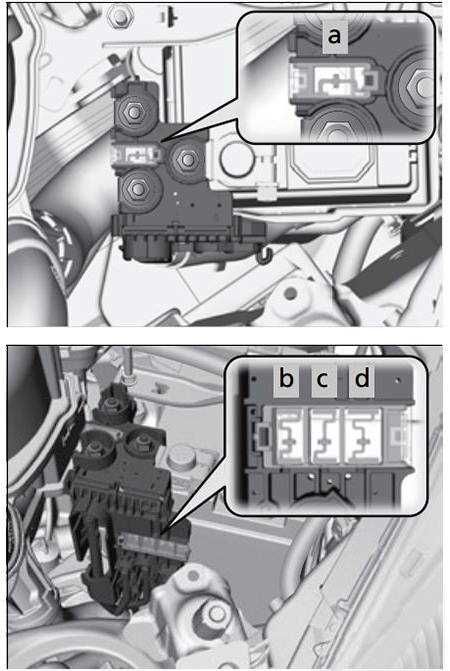

Open the hood and locate the main distribution unit next to the battery housing, secured with a sealed plastic cover. This compartment contains switching modules and high-current protection elements for systems like cooling fans, ignition supply, and braking electronics. The cover must be fully removed to view slot markings and component layout.
Use proper lighting to identify labels and avoid pulling on wiring harnesses during inspection. Reinstall all covers tightly after access to protect internal contacts from moisture, dust, and heat exposure.
