If your vehicle is experiencing electrical issues, the first step is to check the power distribution components. Start by identifying the locations of the power panels, which are commonly found near the driver’s side, under the hood, and inside the cabin. These locations house critical components that manage power to different systems like lights, climate control, and electronics.
Once you locate the panels, refer to the labels that indicate which circuit powers which function. The diagram for these connections helps in understanding which components are protected by specific units. Ensure you check the manual for the correct panel that corresponds to the problematic component to avoid any confusion.
Replacing faulty connections is a simple but important step. Always use the correct amperage to ensure proper operation and avoid overloading the circuits. Make sure you have the proper tools and take necessary precautions before working on the power circuits, as improper handling can lead to further issues.
How to Locate the Power Distribution Panels in Your Vehicle
Start by checking under the dashboard on the driver’s side. The first panel is typically located beneath the dashboard near the footwell, accessible by removing the lower dash cover. This area usually holds circuits for the interior components such as air conditioning, power windows, and central locking systems.
The second power panel is typically found under the hood. Open the hood and locate the engine compartment’s fuse unit. This panel is responsible for controlling the power to engine-related systems, such as ignition, fuel systems, and other critical engine management functions. It’s usually situated close to the engine or the battery for easy access.

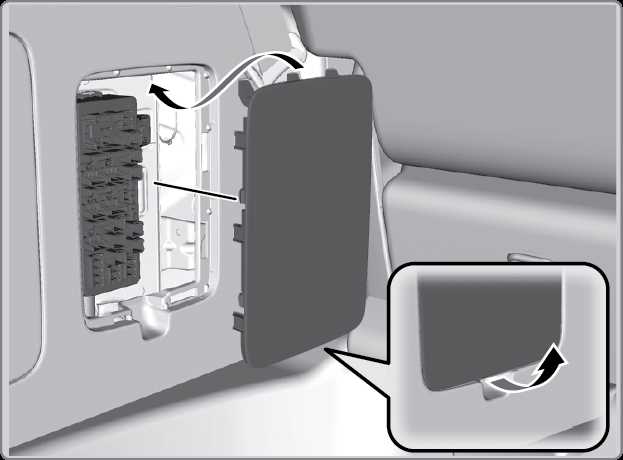

Some vehicles feature a third power distribution unit located in the trunk or rear cargo area. This unit typically covers power connections for rear lights, power seats, and other rear-end components. To locate it, check your vehicle’s manual for the exact location as it can vary based on the model year.
After locating the relevant panel, check the cover or the manual for a list of components each one manages. Labels or diagrams should be present, helping you identify the individual circuits. Be sure to refer to the appropriate section in your owner’s manual if labels are not clearly visible on the covers.
| Location | Covered Components |
|---|---|
| Driver’s Side Footwell | Interior lights, power windows, central locking |
| Under the Hood | Engine ignition, fuel systems, engine management |
| Trunk or Rear Cargo | Rear lights, power seats, rear-end components |
Understanding the Function of Each Circuit in Your Vehicle
Each power distribution unit in your vehicle is designed to manage specific electrical components. The circuits in the dashboard area are primarily dedicated to controlling interior systems, such as lighting, air conditioning, and power windows. These are generally lower amperage circuits that handle components used more frequently by the driver and passengers.
The distribution panel located under the hood typically handles the more critical functions of the vehicle. This includes circuits related to the engine’s ignition system, the fuel pump, and other key engine management systems. These circuits are usually higher amperage due to the larger power demands of the engine and related components.
In addition to engine components, some systems like the cooling fan and battery management are often integrated into the power system that connects to the engine compartment’s unit. If a system is underperforming or fails, checking the relevant circuit is the first step to diagnosing the issue.
The circuits in the rear section of the vehicle, often found in the trunk area, are linked to systems like rear lights, the power sliding doors, and the entertainment system. These circuits can sometimes be overlooked but are just as important for the overall operation of the vehicle.
For precise troubleshooting, always refer to the vehicle’s manual or the labeling on each cover, which will list all the components controlled by each circuit. Knowing which specific component a fuse corresponds to helps when troubleshooting a malfunction, allowing you to replace or reset components as needed.
Step-by-Step Guide to Replacing Components in Your Vehicle’s Power System
Before replacing any electrical component, ensure the vehicle is turned off and the ignition is completely off. Begin by identifying the specific component that has failed by checking the vehicle’s manual or the markings on the power distribution unit cover.
Step 1: Locate the Power Distribution Unit
Start by finding the correct power unit based on the failed system, whether it’s located under the dashboard, under the hood, or in the rear compartment. These areas will be clearly labeled in the vehicle manual, so you can identify the correct panel with ease.
Step 2: Remove the Faulty Component
Use a fuse puller tool or a pair of insulated pliers to carefully remove the faulty component. Make sure to check the component’s rating to ensure that the replacement component matches the required amperage.
Step 3: Install the New Component
Once the defective component is removed, install the new one by firmly placing it into the slot. Double-check that it fits snugly and securely. After replacing, turn on the power to verify that the new component is functioning correctly.
