Check the under-hood and cabin relay boxes first: the primary block near the battery handles high-load components such as the radiator fan (30–40A), ABS unit (40A), and main ignition relay, while the interior panel near the driver’s knee area distributes power to lighting circuits (10–15A), audio system (15A), and accessory sockets (20A).
The engine compartment unit is typically secured with a plastic cover labeled with amperage values and circuit names. Inside, you will find slots marked for fuel pump control (15A), ECU supply (10A), and cooling system relays. Always match the amperage exactly; installing a higher-rated insert can damage wiring insulation and control modules.
The interior block contains smaller-rated inserts responsible for dashboard illumination, power windows (20A), central locking (15A), and SRS system (10A). A blown insert often indicates a short circuit–inspect wiring harnesses near door hinges and under the steering column where wear is common.
Use a test light or multimeter to verify continuity rather than relying on visual inspection alone. Hairline breaks inside the metal strip may not be visible but will interrupt current flow. Replacement kits with labeled slots help maintain correct positioning and avoid confusion during future maintenance.
For quick identification, refer to the lid legend of each block; it provides a concise mapping of circuits and ratings. Keeping a printed chart in the glove compartment reduces downtime during roadside troubleshooting and ensures proper handling of electrical faults.
Honda CR-V 2008 Fuse Diagram: Locations, Functions, and Troubleshooting
Check the cabin panel under the dashboard on the driver’s side first: it contains low-amperage protection elements for interior lighting, audio unit, and control modules, while the engine bay box near the battery handles high-load circuits such as cooling fans, ABS, and ignition. Each slot is marked with a number and rating (e.g., 7.5A, 15A, 40A), and mismatching amperage leads to repeated failures or wiring damage. Use the lid map or printed chart to match the slot number with its assigned circuit before replacing anything.
Interior panel assignments typically include positions for power windows (20A), radio memory (7.5A), instrument cluster (10A), and airbag system (10A). Engine compartment block usually covers radiator fan motors (30–40A), main relay supply (15A), and charging system protection (80–100A main link). If a component stops working, identify its circuit name, locate the corresponding slot, and inspect the metal strip inside the element–any break or burn mark indicates failure.
For troubleshooting intermittent faults, use a multimeter set to continuity or voltage mode: with ignition on, both test points on the top of a working element should show voltage. If only one side is live, the strip is blown. Recurrent burnout points to deeper issues–short to ground, damaged insulation near moving parts, or water intrusion around connectors. Pay attention to common weak spots such as wiring near door hinges and the tailgate harness, where repeated flexing causes internal breaks.
When replacing, always match the original amperage and use pullers to avoid damaging contacts. If multiple systems fail at once, inspect the main link in the engine bay box and grounding points on the chassis. Clean corroded terminals with contact cleaner and ensure tight fastening. Avoid temporary fixes like foil or higher-rated inserts–they increase fire risk and can damage control units.
How to locate interior and engine bay fuse boxes in a 2008 Honda CR-V with exact access steps

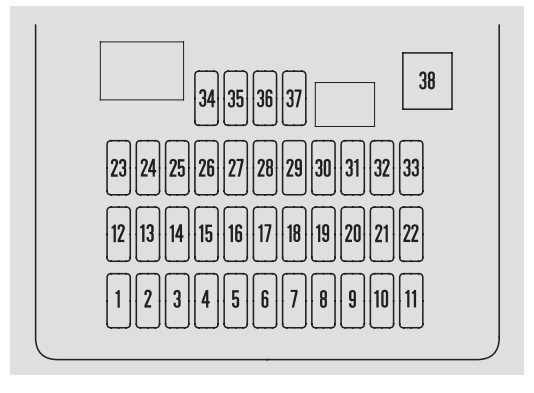

Open the driver’s door and immediately move to the lower left dashboard edge; the interior electrical panel is hidden behind a small rectangular cover aligned with the knee area. Pull the notch on the cover using your fingers–no tools required–and remove it completely to expose the cabin circuit block. For clearer access, adjust the steering wheel upward and slide the seat back. A plastic clip tool can help if the panel feels tight, but avoid metal tools to prevent trim damage. The layout map is typically molded into the back side of the cover; rotate it toward light to read the markings without removing surrounding trim.
Engine compartment access

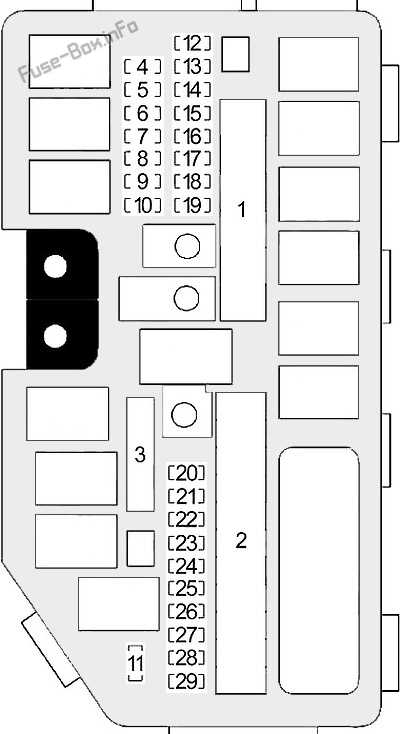

Release the hood latch from inside the cabin, then move to the front edge and lift the secondary latch under the hood center. Secure the hood with the prop rod. The under-hood power distribution box sits on the right side near the battery housing. Follow these steps for direct access:
- Locate a black plastic box with snap tabs on both sides
- Press each tab inward simultaneously and lift the lid upward
- Flip the lid over to view the circuit allocation guide molded inside
- Check for an integrated puller tool clipped inside the box for safe removal of inserts
Keep the lid aligned when reinstalling; press firmly until both tabs click into place to maintain moisture sealing and prevent intermittent electrical faults.
