Check the engine compartment power distribution panel near the battery first, as it contains high-current links for systems like radiator fan, ABS module, and ignition circuits rated between 30A and 80A. Match each cavity number with the legend printed on the cover before removing any component.
The interior panel is located beneath the dashboard on the driver side and controls lower-load circuits such as lighting, audio system, and accessory outlets. Remove the trim cover carefully to access the blade links without damaging mounting clips.
Each slot is labeled with a specific code tied to a circuit, including power windows, air conditioning controls, and ECU supply. This structured layout allows quick identification of faults when a single system stops working.
Use a multimeter set to continuity mode to verify each link instead of relying only on visual checks. Small internal breaks may not be visible but still interrupt current flow during operation.
Replace damaged elements only with identical amperage ratings to avoid overheating wiring or damaging electronic modules. Keep spare blade links in common ratings like 10A, 15A, and 20A inside the vehicle for quick replacement.
Honda Civic 8th gen fuse box diagram with locations and circuit details
Inspect the engine compartment power center first, located next to the battery, where high-current links supply systems like radiator fan, ABS, and ignition, typically rated from 30A to 80A. Use the cover legend to align cavity numbers with each protected circuit before removal.
The interior panel sits beneath the driver side dashboard and manages lower-load circuits such as lighting, audio, and accessory outlets, using blade-type elements rated between 5A and 25A. Remove the trim panel carefully to access the layout without damaging clips.
Each slot is marked with a code that corresponds to a specific function, including ECU power, air conditioning control, and power window systems. Matching these identifiers with the printed legend reduces errors during inspection.
High-load circuits are grouped together in the engine bay unit to minimize voltage drop and heat buildup, especially for components like cooling systems and ignition supply lines.
Cabin-based circuits are arranged by function, placing lighting, infotainment, and accessory feeds in separate rows, which helps isolate faults quickly when multiple features stop working.
Blade color indicates amperage rating, such as red for 10A, blue for 15A, and yellow for 20A, allowing quick identification without reading small print on each element.
Use a multimeter to test continuity across each link rather than relying only on visual checks, as small breaks inside the element can interrupt current under load.
Always replace with the same rating to prevent wiring damage or failure of sensitive electronic modules connected to the circuit.
Fuse box locations in engine bay and interior with access steps

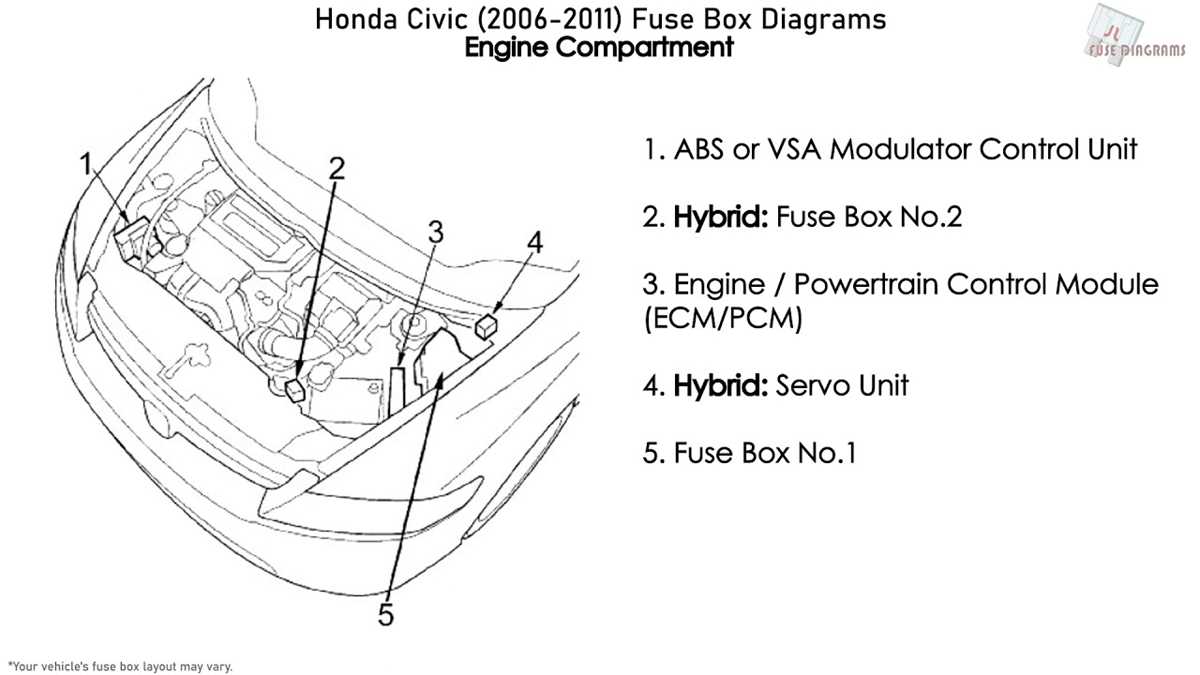

Open the hood and locate the main power distribution unit next to the battery; it is enclosed in a plastic housing with a removable cover secured by side clips. Press both clips and lift the lid to access high-current elements and relays.
Follow these steps for engine compartment access:
- Turn ignition off and remove the key
- Disconnect the negative battery terminal
- Release the cover clips on both sides
- Lift the cover and check the legend inside
The interior panel is positioned beneath the dashboard on the driver side, behind a small removable trim section. Pull the cover outward evenly to avoid breaking plastic retainers and reveal the low-current blade layout.
Use this sequence for cabin access:
- Open the driver door fully
- Locate the side or lower dash panel
- Grip and pull the trim carefully
- Expose the panel and identify slots by label
Secure all covers after inspection to prevent dust or moisture from affecting electrical contacts and to maintain proper fit of interior panels.
