Inspect the under-hood power distribution panel first if multiple electrical systems stop working, as it contains high-amperage links for ignition, cooling fans, and charging circuits. Remove the cover and read the layout chart printed inside to match each slot with its assigned system.
The interior panel located under the dashboard handles lower-load circuits such as lighting, radio, and dashboard controls. Ratings typically range from 7.5A to 30A, and each slot is labeled with a number corresponding to a specific function.
Use a multimeter to check continuity across each protective link before removing it. A broken metal strip or no continuity reading indicates failure. Replace only with the same amperage to avoid overheating or wiring damage.
Relays placed near these panels control switching for systems like the fuel pump and starter. If a circuit fails intermittently, test the relay by swapping it with an identical unit from another position.

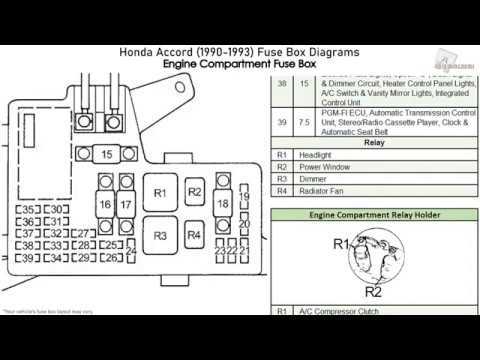

92 Honda Accord Fuse Diagram Guide
Match each slot number with the layout chart on the panel cover before removing any protective link, as similar ratings can be placed in different circuits such as lighting, ignition, or accessories.
Under-hood distribution unit contains high-current elements responsible for radiator fan, charging system, and main power supply lines. These typically range from 30A to 60A and use larger strip-style connectors.
Interior panel handles lower-load circuits with ratings between 7.5A and 30A, covering systems like dashboard lights, radio, power windows, and signal indicators.
- 7.5A for control modules and sensors
- 10A–15A for lighting and small motors
- 20A–30A for window motors and blower
Check each protective element using a multimeter without removing it first; place probes on both terminals to confirm voltage flow and detect internal breaks.
If a link repeatedly fails, inspect the connected circuit for shorted wiring or a malfunctioning component rather than replacing it again.
- Turn ignition off
- Locate the correct slot using the chart
- Remove with a puller tool
- Install a new element with identical rating
Relays positioned near the panels manage switching for starter motor and fuel delivery; identical units can be swapped temporarily to confirm failure.
Keep spare protective links in common ratings inside the vehicle to address sudden electrical issues without delay.
Under Hood and Interior Fuse Panel Locations and Access Steps
Open the hood and locate the main power distribution unit near the battery, positioned on the driver side in a rectangular plastic housing with locking clips.
Press the side tabs and lift the cover straight upward; avoid twisting, as the plastic hinges can crack. The layout chart is printed inside the cover and should be referenced during any inspection.
Interior Panel Access
Move to the driver side lower dashboard area and find the small removable cover near the kick panel. Pull it outward by hand to expose the internal electrical panel with multiple rows of blade-style links.
Ensure the ignition is off before touching any contacts, since some circuits remain live and can spark if metal tools are used improperly.
Safe Removal and Installation
Use a plastic puller or insulated pliers to remove protective elements, applying steady upward force without bending the terminals. After inspection or replacement, align the covers and press firmly until all clips snap back into place.
Verify that both covers are sealed correctly to protect internal components from moisture, dirt, and vibration-related loosening.
