Locate the main power distribution panel beneath the dashboard on the driver’s side to access all circuit protectors. Identify each labeled slot carefully, as misplacement can cause multiple systems to malfunction.
Check amperage ratings before replacing any protective component, since incorrect substitution can lead to blown circuits or permanent damage to onboard electronics. Use the markings engraved on the panel cover to verify specifications.
Organize spares and maintain a reference chart for auxiliary and lighting circuits. Keeping a small container with labeled fuses for stereo, air conditioning, and headlamp circuits ensures faster troubleshooting during roadside repairs.
Inspect connectors for corrosion or loose contacts regularly, especially in the engine compartment panel. Moisture and vibration can degrade connections, affecting sensors, ignition, and infotainment systems.
Follow sequential removal and replacement procedures when swapping any protective element. Avoid pulling multiple units at once to prevent accidental shorting or triggering warning indicators on the dashboard.
Fuse Layout and Identification Guide
Check the electrical panel under the dashboard for a labeled map that separates circuits controlling lights, infotainment, climate control, and safety features. Each connector is numbered and color-coded, allowing precise identification without guessing. Replace any malfunctioning connector with one matching the amperage rating stamped on the tab.
Under the hood, the secondary relay cluster organizes high-current circuits like the starter, cooling fans, and main power supply. The cover includes a reference sheet indicating both standard and mini-sized connectors. For troubleshooting a specific function, trace the wiring from the harness to the numbered slot to avoid accidentally interrupting unrelated circuits.
Quick Reference for Common Electrical Issues
Blown connectors affecting dashboard illumination or door locks typically appear in slots 5 through 12 in the passenger compartment panel. Keep a spare set of 10A, 15A, and 20A connectors in your maintenance kit. Always disconnect the battery before swapping connectors to prevent short circuits or damage to sensitive modules.
For modifications or aftermarket installations, consult the panel map to determine which circuits can handle additional loads without overtaxing the system. High-demand accessories should be tied into circuits with adequate amperage, such as the 30A auxiliary slot located near the main relay assembly under the hood. Label each new connection clearly to simplify future maintenance or inspections.
Locating the Electrical Panel in 2018 Honda Accord Sport
The main access point for vehicle circuits is positioned beneath the steering column on the driver’s side. Slide the panel cover downward and detach it carefully to reveal a rectangular holder secured with plastic clips. Ensure the ignition is off before handling any connectors inside.

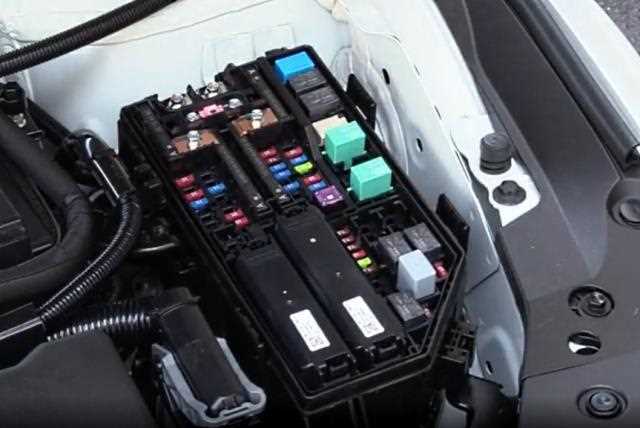

Another compartment is situated under the hood, near the battery. This unit is enclosed in a black plastic shell marked with small icons representing different systems. Open the lid by pressing the tabs on each side and lift gently; metal terminals inside may carry residual charge.
Identifying Individual Slots
Inside both compartments, small numbered slots correspond to lights, infotainment, climate control, and safety systems. A printed chart on the inner lid provides a concise list. For quick inspection, use a 12-volt tester rather than removing modules blindly.
- Driver-side interior: controls wipers, horn, power mirrors
- Engine compartment: manages headlights, starter, cooling fan
- Each slot is color-coded for amperage
- Replace only with matching rating components
For maintenance, always disconnect the battery’s negative terminal before touching any circuits. Handle the panels with soft cloth gloves to avoid scratches and static discharge. Reassemble by aligning clips carefully to avoid damage.
When troubleshooting, start with the interior unit for cabin-related issues. Reserve under-hood access for engine electronics. Keep a compact torch handy, as lighting inside both units can be limited.
