Check the power distribution layout first: the cabin block sits under the dashboard on the driver’s side, while the engine bay unit is mounted near the battery. Always disconnect the negative terminal before inspecting any circuit protection element to prevent short circuits and unintended airbag activation.
Inside the interior panel, numbered slots correspond to lighting, audio system, climate control, and accessory sockets. For example, slot #23 typically handles the radio circuit, while #10 is often assigned to interior illumination. A blown metal strip inside any insert signals overload; replace it only with the same amperage rating (e.g., 7.5A, 15A, 20A) to avoid wiring damage.
Under the hood, higher-capacity components protect critical systems such as the alternator, cooling fan, and ABS module. These larger units–often rated from 40A to 100A–are secured with bolts rather than simple clips. Do not substitute lower or higher ratings; mismatched values can lead to overheating or failure of key vehicle functions.
Use the legend printed on the panel cover as a quick reference, but verify against a service manual when troubleshooting persistent electrical faults. Corrosion, loose контакты, or moisture ingress may mimic a failed protector, so inspect terminals carefully before replacement.
Compact Sedan Electrical Map: Practical Guide to Locations and Troubleshooting
Check the interior power distribution panel under the dashboard on the driver’s side first; it handles most cabin electronics such as radio, interior lighting, and accessory sockets, so a sudden loss of these functions usually points here.
The engine bay power box sits next to the battery and protects high-load circuits like cooling fans, ABS, and ignition components; remove the plastic cover and read the molded legend inside to match each slot with its circuit before pulling anything out.
If a specific system stops working, identify its circuit rating printed on the panel cover, then pull the corresponding insert using plastic tweezers and inspect the metal strip–any break or burn mark means it must be replaced with one of identical amperage, never higher.
Frequent failures in the same slot often indicate a short circuit; trace the wiring harness connected to that circuit, paying attention to areas near sharp metal edges, door hinges, and under-seat tracks where insulation may wear through.
For intermittent issues, gently wiggle the wiring while the system is powered; if the component flickers or cuts out, the fault likely lies in a loose connector or partially damaged wire rather than the protective element itself.
Panel Layout Notes
The cabin block typically includes low-amperage slots (7.5A–20A) for electronics, while the engine compartment block contains higher ratings (30A–80A) for motors and control units; mixing them up can lead to incorrect diagnostics.
Use a multimeter set to continuity mode to verify each insert without removing it: touch probes to both exposed test points on top–no beep or infinite resistance confirms a break inside.
Replacement and Safety
Disconnect the negative battery terminal before working in the engine bay box to avoid accidental shorts; keep a small assortment of spare inserts in the glove compartment so roadside fixes take minutes instead of hours.
How to Locate and Identify Each Fuse in the 2008 Honda Civic Interior and Engine Bay Boxes
Open the driver-side lower panel and inspect the small rectangular panel beneath the steering column; this is where the interior circuit box is mounted, and the quickest way to match each slot with its function is by reading the molded numbering along the plastic frame rather than relying on printed stickers that may fade.
Use a flashlight to clearly view the numbering sequence because positions are arranged in tight vertical rows; slot numbers typically increase from left to right and top to bottom, allowing you to correlate each cavity with its assigned electrical component such as radio, cabin lights, or power windows.

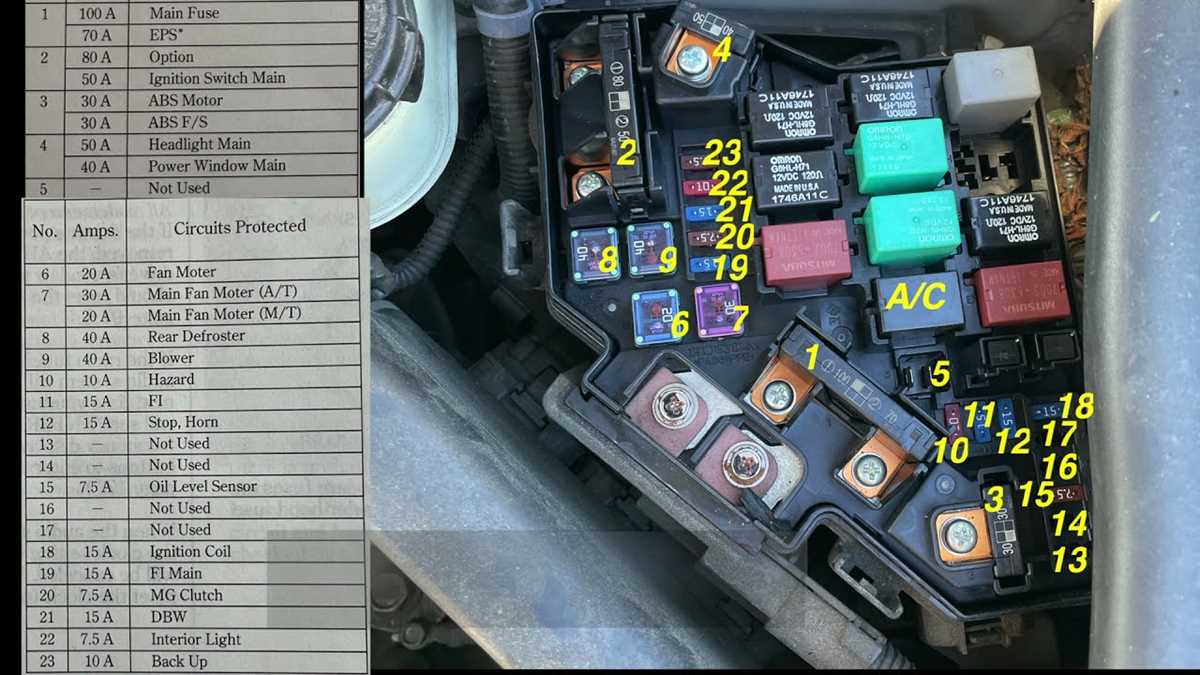

Pull the cover from the engine compartment box located near the battery and radiator support, then flip it over to access a molded reference chart; this chart provides amperage ratings and abbreviations for systems like ABS, cooling fan, and ignition circuits.
Match amperage values by color: low-rated units (7.5A–10A) are usually red or blue, mid-range (15A–20A) appear yellow or clear, and higher ratings (30A and above) are green or pink; this color coding allows quick identification without reading tiny printed numbers.
Grip the plastic puller tool stored inside the engine bay box lid to extract each piece vertically; avoid using metal pliers since they can damage contacts or create a short if they touch adjacent terminals.
Interior Box Position Mapping
Slots in the cabin panel often include: #1 for accessory sockets, #9 for audio system, #14 for instrument cluster, and #22 for central locking; confirm each assignment by checking both the numbering and the label embossed into the panel surface.
Engine Compartment Layout Details
Under-hood positions are grouped by system priority: larger cartridge-style elements sit near the top edge for high-load circuits like starter motor and main relay, while smaller blade types are clustered below for sensors and control modules.
After inspection or replacement, press each element firmly until it sits flush with the socket and reattach covers securely; loose seating leads to intermittent electrical faults that are difficult to trace during later diagnostics.
