Access the main electrical panel behind the dashboard on the driver’s side or under the hood near the battery to inspect circuits. Identifying the correct slot for each component prevents short circuits and accidental system failures.
Label each connector and relay before removing any protective covers. Panels in this generation have over 30 circuits controlling lighting, ignition, and climate systems, so marking each element ensures accurate replacement and avoids confusion during reassembly.
Test fuses with a multimeter before swapping. Components for the audio system, power windows, and central locking are protected by specific rated elements, usually 10A to 30A, and using the correct rating prevents further damage.
Maintain a clean workspace and keep replacement elements within reach. Dust or corrosion on terminals can interfere with continuity checks, so a quick wipe with a contact cleaner improves reliability and reduces troubleshooting time.
Electrical Panel Layout and Component Access
Locate the main electrical panel on the driver’s side under the dashboard or in the engine compartment near the battery. Identify the slots controlling headlights, ignition, and climate controls to avoid disconnecting critical circuits.
Follow these steps for inspection and replacement:
- Remove the protective cover carefully to avoid breaking clips.
- Check each element for discoloration or melted plastic, which signals overload.
- Use a multimeter to verify continuity before replacing any component.
- Keep a record of the ratings, usually ranging from 10A to 30A, for each slot.
After completing inspections, reassemble covers securely and test all circuits, including power windows, interior lighting, and horn, to ensure proper operation. Maintaining this panel prevents unexpected electrical failures and extends the lifespan of relays and connectors.
Locating the Electrical Panel Inside the Vehicle

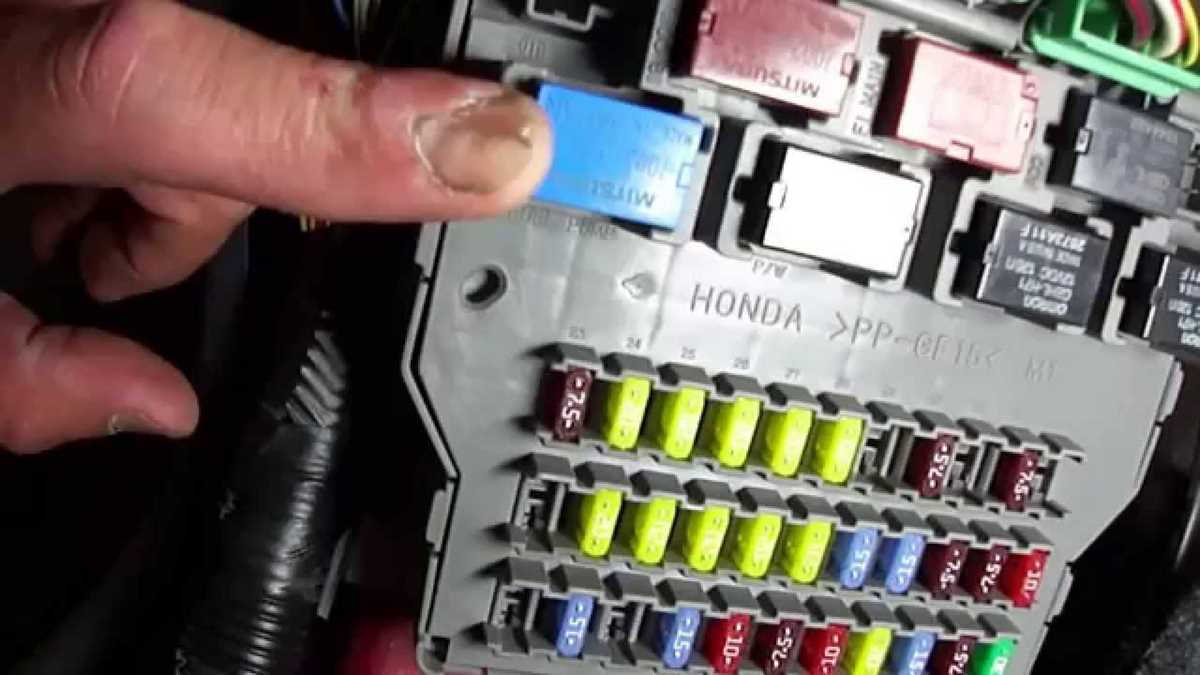

Access the interior panel on the driver’s side beneath the steering wheel by opening the lower dashboard cover. This area houses circuits controlling the ignition, lights, and interior electronics.
Check the engine compartment near the battery for the secondary panel, which contains relays and high-amperage components. Each slot is labeled with the amperage rating and connected system, making identification straightforward.
Use a flashlight to inspect connectors in tight spaces. Some circuits are recessed, and visibility is limited, so proper lighting ensures no element is overlooked during maintenance.

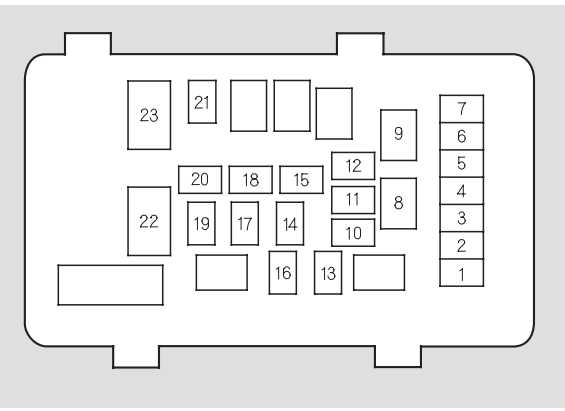

Identifying Slots for Critical Systems

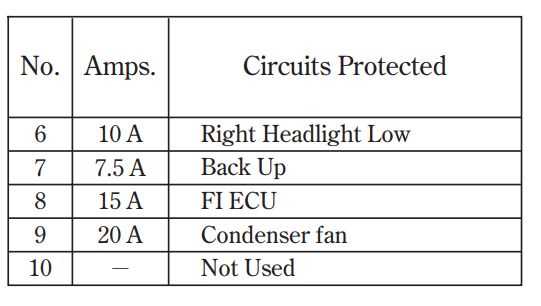

Prioritize elements linked to essential functions: starter relay, headlights, and horn. Slots are often color-coded, with 10A, 15A, 20A, and 30A ratings printed on the panel for quick recognition.
Mark removed components with tape or labels to avoid confusion. Panels include a mix of mini and standard connectors, so keeping track prevents installing the wrong rating in a circuit.
Testing and Reassembly Tips
After inspecting or replacing any component, reattach covers firmly and test each system sequentially. Verify interior lights, turn signals, and power outlets operate normally to confirm correct placement and continuity.
