Locate the interior electrical block directly below the driver’s control column, slightly left of the knee area, then use a precise slot map to identify each circuit quickly. The 2004 model places this unit behind a removable trim cover secured by two clips; a flat tool allows safe access without damaging the plastic. Numbering runs sequentially from the upper left corner, with low-amperage circuits (7.5A–15A) concentrated at the top and higher loads (20A–30A) positioned toward the lower rows.
Key slots handle ignition relay supply, cabin lighting, audio system memory, and accessory sockets. For example, position #6 (15A) typically feeds the radio and clock retention, while slot #13 (20A) supports the front power outlet. The hazard indicator circuit is commonly tied to a 10A slot in the upper section, making it one of the quickest checkpoints during troubleshooting.
Use amperage markings printed on the plastic housing rather than relying on color alone, since replacements may not match factory shades. A blown element often shows a visible break in the metal strip; however, a multimeter check across the terminals gives a more reliable result. When replacing, match the exact rating–installing a higher value risks overheating wiring behind the console.
Keep a small puller tool inside the glove compartment; the interior block is compact, and fingers alone may struggle to extract tightly seated components. After any replacement, turn the ignition to accessory mode and verify operation of the affected system immediately to confirm correct positioning.
2004 Mid-Size Sedan Under-Console Electrical Layout: Practical Guide
Locate the interior electrical box beneath the driver-side lower trim and use a small flashlight to read the printed circuit map on the cover; this saves time compared to guessing connections.
The compartment sits just above the driver’s knees, slightly to the left of the column. Remove the plastic cover by pulling from the notch at the bottom edge. Inside, each slot is numbered and paired with a short label such as ACC, RADIO, or WIPER. Match the number with the chart on the lid to identify the exact circuit. For example, slot 9 typically protects the accessory socket, while slot 13 is linked to the audio unit. Use needle-nose pliers or the included puller to extract a blown element and inspect the metal strip for breaks.

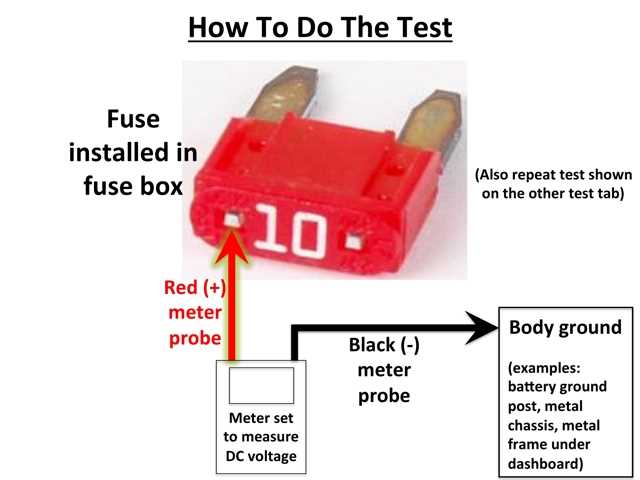

Use only the specified amperage; replacing a 10A piece with a 20A one can damage wiring or connected modules. Keep spare inserts (7.5A, 10A, 15A, 20A) in the glove compartment. If multiple circuits fail simultaneously, check the main interior relay box and battery connections instead of swapping parts blindly. A multimeter helps verify continuity when visual inspection is unclear.
After replacement, turn the ignition key to the accessory position and confirm operation of the affected system before reinstalling the cover. If the issue persists, trace the circuit using the numbering system and inspect connectors near the lower column area, as loose plugs are common after trim removal or aftermarket installations.
Exact Location and Access Steps for the Fuse Box Under the Steering Panel in a 2004 Honda Accord
Locate the interior electrical block by positioning yourself in the driver’s seat and looking beneath the lower trim directly in front of your knees, slightly to the left of the column. The unit is mounted behind a removable plastic cover integrated into the lower dashboard structure, aligned with the brake pedal area.
To reach it, slide the seat fully backward to create working space. Tilt your head under the front console edge and identify a rectangular access lid with a shallow grip notch along its bottom edge. This cover sits flush with surrounding plastic and may require gentle prying with fingers rather than tools.
Pull the cover outward with steady pressure from the notch; avoid twisting, as the retaining clips are positioned along the top edge and can snap if forced sideways. Once released, the cover will hinge downward or detach completely depending on production variation.
Behind the cover, the electrical distribution block appears as a compact grid of color-coded inserts arranged in rows. A small diagram label is typically affixed to the inner side of the cover, providing slot identification and amperage ratings for each circuit.
For improved visibility, use a flashlight directed upward from below rather than from the front, reducing shadows cast by the lower trim. The mounting bracket positions the block slightly recessed, so direct overhead lighting significantly improves access accuracy.
If hand clearance is limited, remove the lower knee bolster by unscrewing the fasteners along its bottom edge and disengaging the clips near the center console. This step exposes the entire mounting area and simplifies replacement tasks.
When removing any insert, use a plastic puller tool stored in the compartment or grip the component firmly and pull straight out. Avoid metal tools, as contact with adjacent terminals may cause short circuits.
Reinstall the access cover by aligning the upper clips first, then pressing inward along the lower edge until it snaps securely into place. Verify that the cover sits flush with the surrounding trim to prevent rattling during driving.
