Check the circuit chart inside the vehicle handbook before removing any protective element, as identical amperage ratings may correspond to completely different systems such as lighting, infotainment, or engine control.
The mid size crossover released in the late 2000s uses two main power distribution areas: one inside the cabin near the passenger compartment side panel, and another under the hood close to the battery. Each area contains labeled slots with ratings typically ranging from 5A to 50A, along with relay units for higher load circuits. Matching slot numbers with the printed chart avoids incorrect replacements and repeated faults.
Interior circuits handle components like power windows, climate system, and dashboard electronics, while the engine compartment section manages systems such as cooling fans, ignition, and fuel delivery. If a specific function stops working, use a multimeter to test continuity across the metal strip instead of relying only on visual inspection.
Always install a replacement with the same amperage marking, as using a higher rating can overheat wiring and damage control modules. Keep a printed circuit reference and spare links in common values inside the glove compartment for quick roadside checks.
Owner Manual Guide to 2007 Ford Edge Fuse Box Layout and Circuit Identification
Match each circuit slot number with the printed chart before removing any protective element, as similar amperage values can serve unrelated systems like lighting, audio, or engine electronics.

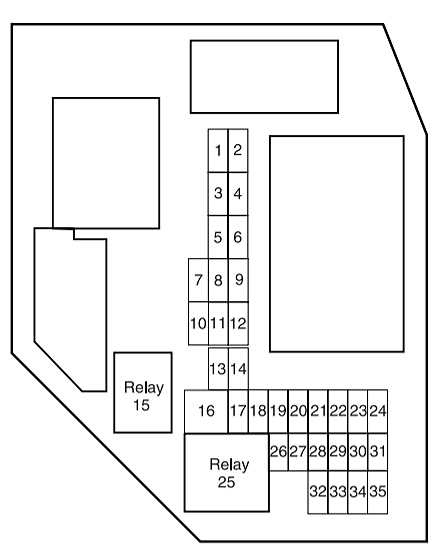

The passenger compartment power panel is located behind a trim cover near the front seating area, typically on the right side. It contains low and mid-range amperage links from 5A to 30A, assigned to interior functions such as climate control, radio, and dashboard indicators. Use the numbering grid to align each slot with its labeled function rather than relying on position alone.

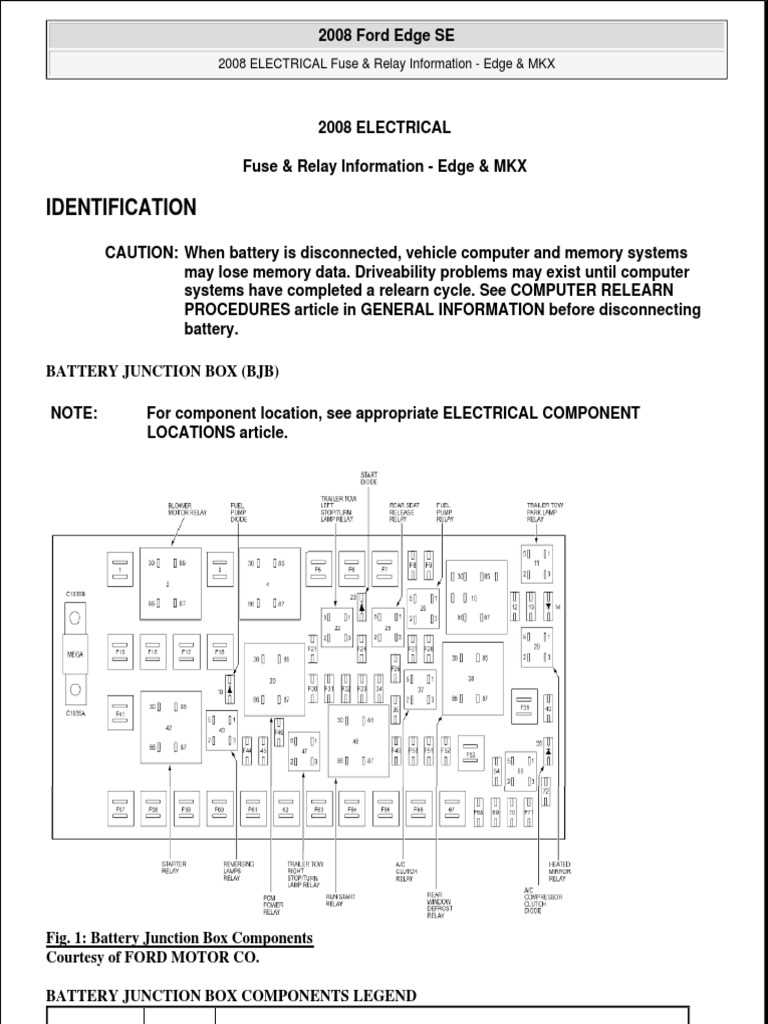

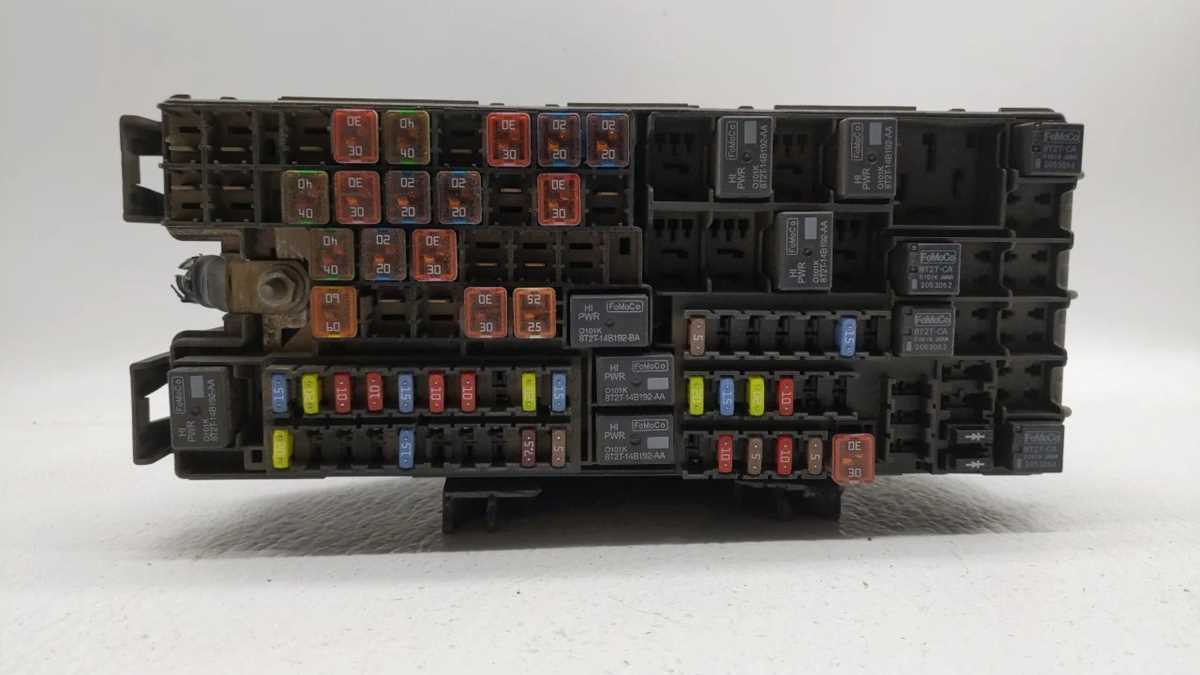

Under the hood, the main distribution unit sits close to the battery and includes high-load circuits for cooling fans, ignition system, anti-lock braking, and fuel delivery components. These slots often range between 30A and 80A and may include relay modules placed alongside blade-style links.
Understanding slot numbering and labels
Read the layout orientation carefully, since the printed chart may appear mirrored depending on viewing angle. Each slot is identified by a number and short label such as ACC, PCM, or HVAC, indicating the protected system. Misreading the orientation can result in removing the wrong element and missing the actual issue.
Check both the cover insert and the reference pages, as some circuits are listed with abbreviations that require cross-reference for full meaning. This helps avoid confusion between similar labels like IGN and INJ.
Verifying circuit condition and replacement
Test continuity with a multimeter instead of relying only on visual inspection, since internal breaks may not be visible through the plastic housing.
When replacing a damaged link, match the amperage printed on top and follow the color coding used across automotive standards. Installing a higher rating may stop repeated failure temporarily but increases the risk of overheating wires and damaging connected modules.
Store spare components in common values such as 10A, 15A, and 20A inside the vehicle, along with a puller tool. This allows quick checks and replacements without removing additional panels or searching for equipment.
Where to find interior and engine compartment fuse panels in 2007 Ford Edge
Open the passenger side lower trim panel to access the cabin power distribution area, located near the front footwell behind a removable cover.
- Move the seat back to create working space
- Locate the plastic cover along the side panel
- Pull it outward to reveal the slot grid
- Use the printed legend inside the cover for reference
The engine compartment unit is positioned next to the battery under the hood, enclosed in a sealed plastic housing designed to protect high-load circuits from moisture and debris.
- Release the locking tabs on the housing cover
- Lift the lid straight up without twisting
- Check the internal layout guide attached to the cover
- Inspect both blade components and relay blocks in this area
Keep both panels free of dirt and moisture, as contamination inside these housings can interrupt current flow and cause intermittent failures across multiple vehicle systems.
