Open the passenger compartment and check the lower dashboard area near the glove compartment: the primary power distribution panel is positioned behind a removable trim cover. A second relay and protection unit sits in the engine bay next to the battery. Access both points first, then compare the circuit chart printed on the cover with the actual slot numbering to avoid pulling the wrong component.
The cabin panel uses a tight grid with micro and low-profile elements rated from 5A to 30A. Slots responsible for lighting, infotainment, and interior electronics are grouped toward the center rows, while climate control and accessory sockets are typically placed along the outer columns. The engine compartment unit handles higher loads: cooling fan, ABS module, ignition system, and power steering, with ratings up to 60A. Always match amperage markings exactly; installing a higher-rated piece risks wiring damage.
Use a plastic puller tool stored inside the cover to remove elements cleanly. Check continuity with a multimeter instead of relying on visual inspection alone–hairline breaks are easy to miss. For recurring failures, inspect the corresponding relay cluster adjacent to the panel; a stuck relay can mimic a blown protection element.
For quick orientation, note that numbering usually begins at the top-left corner and proceeds horizontally. Cross-reference each position with the printed legend, which lists systems such as headlights, fuel pump, ECU, and wipers. Keep a spare set of 10A, 15A, and 20A components in the glove compartment; these cover most common faults in this model year.
Electrical Distribution Map for Compact Sedan Model
Check the passenger compartment panel first: it is positioned beneath the glove compartment, secured by two plastic clips that release with a firm pull. Inside, numbered slots correspond to specific circuits such as interior lighting (slot F61, 7.5A), audio system (slot F79, 15A), and central locking (slot F65, 20A). Use the printed legend on the inner cover to match each slot quickly, and verify amperage before replacing any component to avoid circuit overload.
The engine bay power center is located near the battery on the left side, protected by a sealed lid with snap tabs. High-current links are installed here, including cooling fan control (slot F8, 40A), ABS module (slot F3, 30A), and ignition relay feed (slot F22, 20A). A plastic extractor tool is typically clipped inside the lid for safe removal. Always disconnect the negative battery terminal before accessing this section to prevent short circuits.
Slot Numbering and Circuit Allocation
Numbering follows a sequential grid pattern from left to right, top to bottom. Lower rows usually handle auxiliary electronics, while upper rows connect to drivetrain and safety systems. For example, slot F56 (10A) supports instrument cluster signals, whereas slot F85 (25A) supplies the power windows. Mismatched ratings can trigger intermittent faults, especially in modules sensitive to voltage variation such as infotainment and climate control units.
Service Tips and Common Fault Areas
Frequent failure points include the blower motor circuit and accessory power outlet, often due to prolonged high load. Inspect for discoloration or melted plastic around terminals, which indicates overheating. Corrosion near the engine compartment unit may appear in humid climates; cleaning contacts with electrical cleaner restores conductivity. Keep spare mini and standard blade elements rated between 5A and 40A for quick roadside replacement.

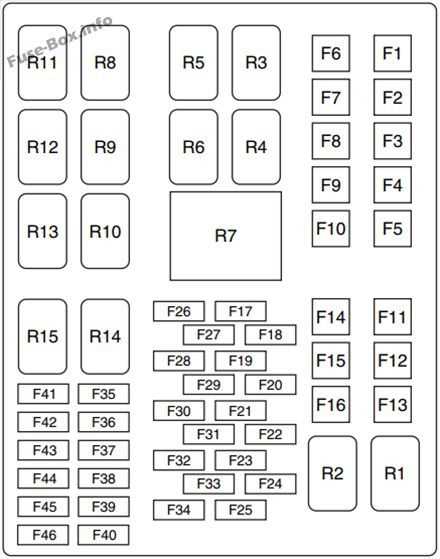

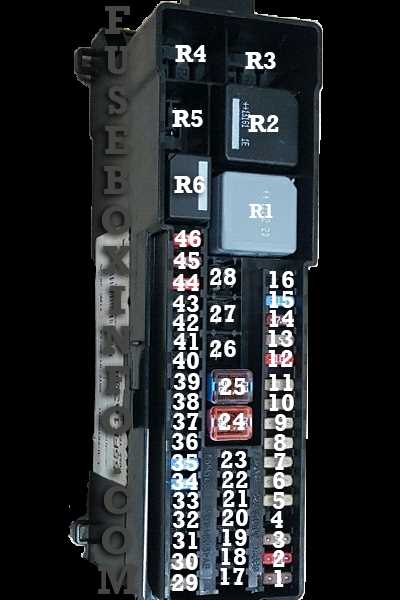

Exact Location of Interior and Engine Bay Fuse Boxes in 2013 Ford Focus
Check the passenger compartment first: the interior electrical panel sits behind the glove compartment on the right side of the dashboard. Open the glove compartment fully, press in both side stops, and let it drop down to expose the cover. The protective panel is secured with clips–pull gently to remove it and access the circuits.
For quick identification inside the cabin unit, look toward the lower right kick panel area. The module is mounted vertically, making access slightly tight. A flashlight helps when reading labels printed on the inside of the cover.
Engine Bay Power Distribution Location
The under-hood power distribution center is positioned near the battery on the left side of the engine compartment. Open the hood and locate the rectangular black casing adjacent to the air intake assembly. Release the locking tabs and lift the lid upward to reveal high-current components.
Key visual markers to confirm you’ve found the correct housing:
- Located directly next to the battery terminal
- Thick wiring harnesses entering from multiple sides
- Snap-on lid with a molded grip section
Access Tips and Practical Notes
Interior access requires no tools, but space is limited due to the glove compartment hinge. In contrast, the engine compartment unit offers easier reach but may require clearing debris or moisture before opening.
Before interacting with either panel, switch off the ignition and remove the key. For the engine compartment unit, disconnect the negative battery terminal if working with high-amperage circuits. Always match replacements by amperage rating printed on the component to avoid electrical faults.
