Ensure the main electrical distribution unit is visible by opening the under-dash compartment on the driver’s side. Check the latch mechanism to avoid accidental disconnection of internal connectors while performing inspections.
Identify each relay and connector by its stamped identification code to match the correct circuits. This prevents confusion when replacing or testing individual circuits for malfunctions in lighting, infotainment, or climate systems.
Use a compact test light or multimeter to verify voltage supply to each terminal. Labeling each lead during inspection helps maintain an organized workflow and avoids misrouting wires during reassembly.
Document the positions of all removable modules before removal. This ensures that reconnection aligns with factory configurations, maintaining proper operation of safety systems and auxiliary electronics.
Electrical Panel Layout and Connector Guide for Precise Vehicle Maintenance
Locate the primary electrical panel beneath the dashboard on the driver’s side and secure the cover before inspecting internal circuits. Ensure all terminals are accessible without forcing connectors to prevent bending or breakage.
Identify each connector by its printed alphanumeric code. This allows quick verification of lighting, ignition, and auxiliary circuits without tracing each wire manually, reducing diagnostic errors.
Relays are positioned in rows with clear spacing; test each by applying controlled voltage to the coil terminals. Mark each tested relay to avoid retesting or accidental replacement of functioning components.
Use a multimeter to check continuity on each terminal. Label wires during inspection to maintain original routing and prevent misalignment when reassembling the panel.
Under the hood, secondary connectors link the panel to engine sensors and actuators. Inspect insulation and locking tabs to ensure reliable power transmission and signal integrity across all circuits.
Document the position and orientation of each removable module. Correct reinstallation preserves operational integrity for safety systems, climate controls, and infotainment modules.
For high-current circuits, examine bus bars and fuses for corrosion or discoloration. Clean contact points carefully to maintain uninterrupted power flow and prevent overheating during peak loads.
Final testing should include powering all major systems while monitoring voltage drops. Note any irregular readings to identify potential wiring faults or loose connections that could affect performance or safety.

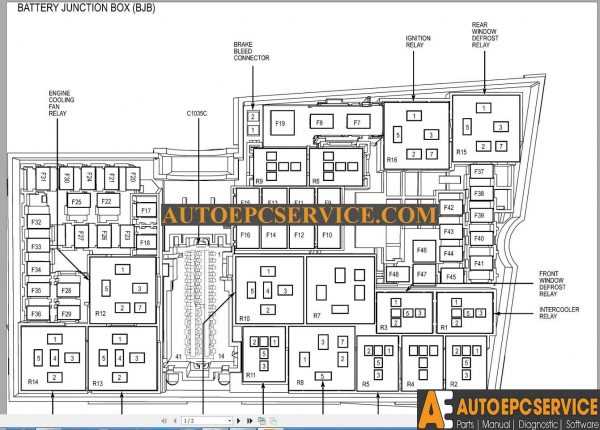

Locating the Primary Power Distribution Center in the Engine Compartment
Access the main power hub by opening the hood and identifying the black rectangular casing near the battery terminal. Ensure the engine is off and the negative battery cable is disconnected before removing the cover to avoid electrical hazards.

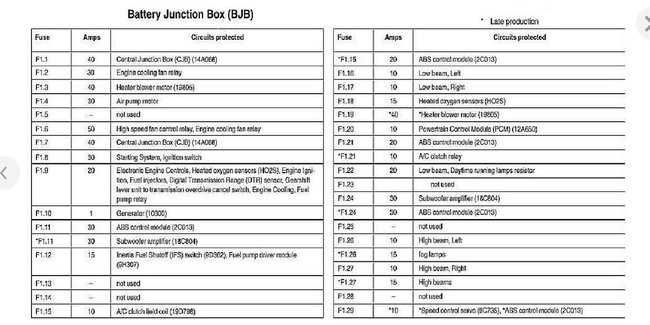

Inside the panel, circuits are organized in labeled rows for ignition, lighting, and accessory systems. Use the printed code on each terminal to confirm the correct connection points before performing inspections or replacements.
Check connectors for tightness and corrosion. Apply dielectric grease to pins if any oxidation is present to maintain reliable current flow and prevent intermittent electrical issues.
After maintenance, verify system functionality by turning on all major components while monitoring voltage levels. Note any unusual readings to detect loose connections or damaged wiring that could compromise overall performance.
