Locate the primary power distribution panel behind the glove compartment on models produced after 2020. Each slot is numbered and corresponds to specific circuits controlling headlights, auxiliary outlets, and onboard electronics. Inspect each fuse holder for discoloration or corrosion to avoid intermittent failures.
Replace a defective link immediately using a matching amp rating. A 15-amp circuit for infotainment, for instance, must not be substituted with a 20-amp element, as this risks overheating wires and damaging modules.
Auxiliary panels under the hood handle high-load systems such as the cooling fan, ignition coils, and fuel pump. Verify the correct position by consulting the small embossed chart on the cover; each slot’s number corresponds to the printed schematic.
Check for hidden connections behind the dash in older trims. Some circuits for heated seats and power mirrors are routed through inline connectors rather than the main distribution box, making visual inspection essential before troubleshooting electrical faults.
Labeling conventions vary by model year. Use a multimeter to confirm continuity before inserting a new link. Even slight variations in amperage can trigger dashboard alerts or cause partial shutdowns of critical systems.
Guide to Electrical Panel Layout
Locate the primary power distribution box behind the glove compartment and remove the cover by pressing the release tabs on each side. Inside, fuses and relays are grouped according to voltage ratings, amperage, and functional zones. Labeling is often printed on the inside of the lid, which provides a quick reference for circuits controlling lighting, ignition, and climate systems.
Each small rectangular unit in the panel protects a specific circuit. Identify the one linked to auxiliary power outlets by tracing the printed legend near the terminals. Use a tester to confirm continuity before replacing any unit, ensuring that the new component matches the amperage indicated.
Tip: High-current modules powering the starter or cooling fans are usually located near the battery side of the engine bay. These larger units have thicker connectors and a distinct clip mechanism. Avoid mixing them with lower-rated elements to prevent overheating and system faults.
For entertainment and infotainment circuits, check the secondary compartment often situated below the dashboard. These compact holders can be removed individually by pressing the latch while gently pulling upward. Cross-reference with the maintenance manual to verify the correct slot and amperage, reducing the risk of electrical shorts.
Replacing Defective Units Safely
Disconnect the negative terminal of the main battery before handling any modules. Extract the defective piece using needle-nose pliers if necessary, then insert the new one firmly, listening for a click. Test the connected system immediately after installation to ensure proper operation before reassembling the cover.
Keep a small assortment of rated replacements in your toolkit for field repairs. This practice allows immediate restoration of critical circuits like fuel injection, headlights, and wiper motors without needing to visit a service center. Label each replacement according to amperage to avoid accidental mismatches and potential hazards.
Locating the Fuse Boxes in Different Bronco Models
For early models from 1966 to 1977, the primary electrical panel sits under the dashboard, directly below the steering column. Access requires removing the lower trim panel on the driver’s side. Secondary junction points are tucked behind the glove compartment on the passenger side, often secured with a small plastic cover that can be pried off with a flathead screwdriver.

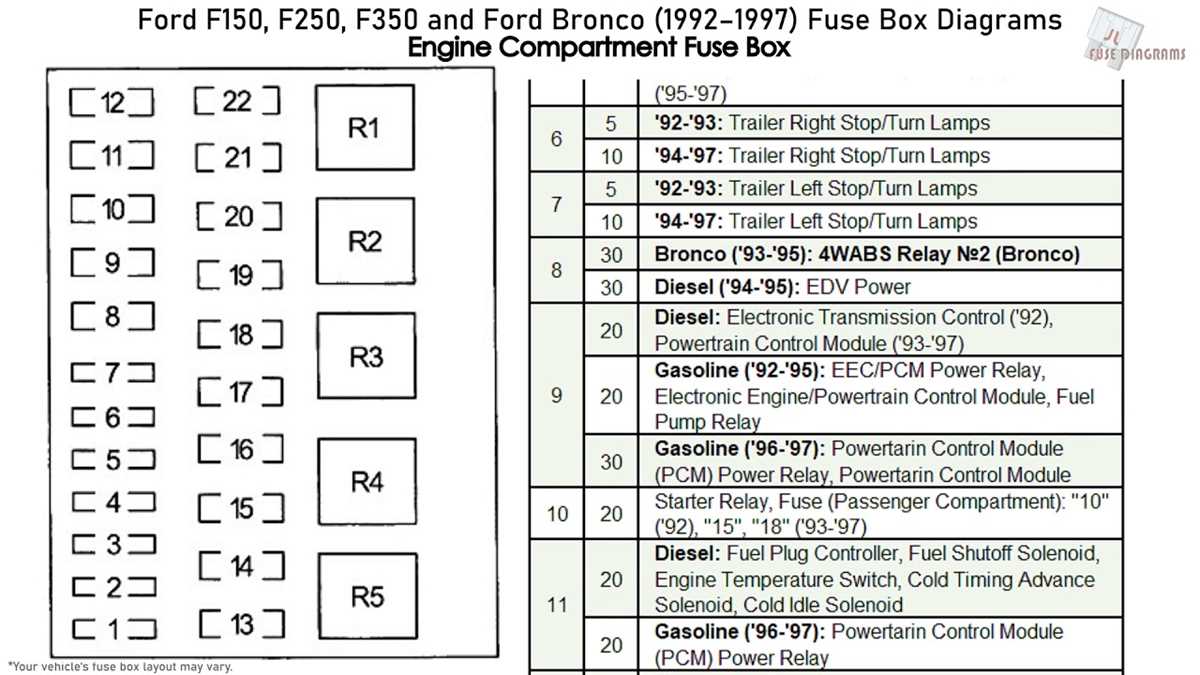

In second-generation vehicles (1978–1996), the cabin control center moved to the left side of the engine bay near the battery. This box contains relays for the headlights, horn, and windshield wipers. A compact relay board remains in the passenger compartment, mounted just above the kick panel, accessible by removing a single screw.

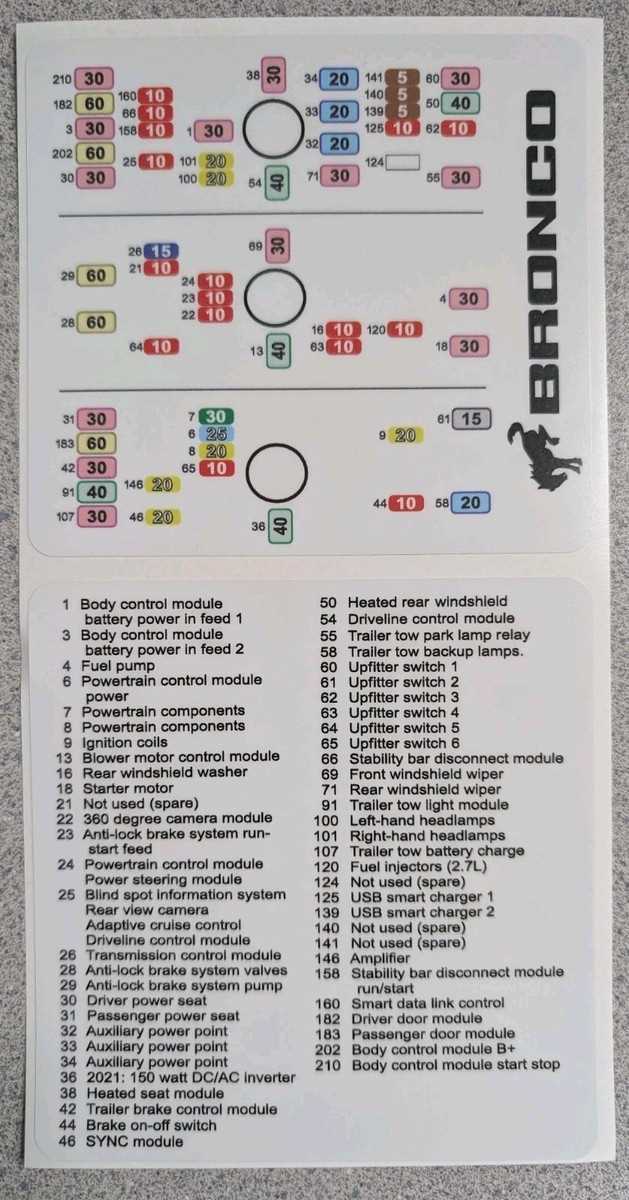

Modern 2021+ variants feature dual access points: one under the hood and one inside the cabin. The exterior module is positioned on the driver’s side fender well, adjacent to the washer fluid reservoir. Inside, a smaller unit is clipped to the side of the center console, behind a removable trim piece. Each module is clearly labeled with a miniature schematic stamped on the cover for quick reference.
- Check the driver’s side lower dashboard for hidden panels in early models.
- Inspect the left engine bay compartment for mid-era vehicles.
- Look behind the center console trim in current editions for interior modules.
- Refer to embossed labels on each unit for identification of circuits and relays.
